DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2D-0515/HDC DC CONVERTER +/-15V 2W |
2,503 |
|
Техническая документация |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|
R-78T12-1.0/AL-TRAYDC DC CONVERTER 12V 12W |
2,653 |
|
Техническая документация |
INNOLINE R-78T-1.0 | 5-SMD Module, 3 Leads | Tray | Active | Non-Isolated PoL Module | 1 | 15V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.98" L x 0.91" W x 0.39" H (25.0mm x 23.0mm x 10.0mm) | - | - | - | - |
|
TEL 2-1210DC DC CONVERTER 3.3V 1.7W |
1,351 |
|
Техническая документация |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 500mA | 1.7 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 73% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
R05P15DDC DC CONVERTER +/-15V 1W |
2,327 |
|
Техническая документация |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
NMJ1209SCDC DC CONVERTER +/-9V 1W |
4,052 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 55mA, 55mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 65% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
NMJ0503SACDC DC CONVERTER 3.3V 1W |
3,131 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 64% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
TES 2-1223HDC DC CONVERTER +/-15V 2W |
3,293 |
|
Техническая документация |
TES 2H (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.64" L x 0.37" W x 0.35" H (16.3mm x 9.3mm x 8.9mm) | - | - | - | - |
|
SUW1R51215BDC DC CONVERTER +/-15V 1.5W |
1,398 |
|
Техническая документация |
SUW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm) | - | - | - | - |
|
|
SUW1R50515BDC DC CONVERTER +/-15V 1.5W |
3,995 |
|
Техническая документация |
SUW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm) | - | - | - | - |
|

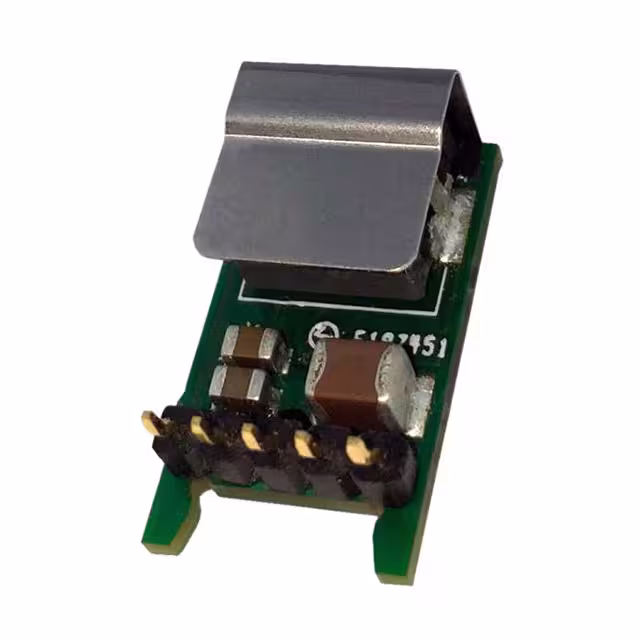

SRPE-06E1A0GDC DC CONVERTER 0.6-5.5V 33W |
4,336 |
|
Техническая документация |
SRPE | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 5.5V | 13.2V | 0.6 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | 0°C ~ 50°C | 91% | - | - | Surface Mount | 0.41" L x 0.34" W x 0.65" H (10.4mm x 8.6mm x 16.5mm) | - | - | - | - |
|
RSH3-1215S/H23W DC/DC-CONVERTER 'ECONOLINE' S |
2,194 |
|
Техническая документация |
RSH3 (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 82% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | cURus | 62368-1 |
|
CCG1R5-12-03SFDC DC CONVERTER 3.3V 1.32W |
100 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 74% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-24-12DFDC DC CONVERTER +/-12V 1.56W |
2,083 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-15DFDC DC CONVERTER +/-15V 1.5W |
2,166 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 76% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-12SFDC DC CONVERTER 12V 1.56W |
3,387 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 130mA | 1.6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-05SFDC DC CONVERTER 5V 1.5W |
2,446 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 76% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-03SFDC DC CONVERTER 3.3V 1.32W |
4,567 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 72% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-15SFDC DC CONVERTER 15V 1.5W |
3,258 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 15V | - | - | - | 100mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-12-12DFDC DC CONVERTER +/-12V 1.56W |
3,231 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-12DFDC DC CONVERTER +/-12V 1.56W |
4,451 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
