DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCL103E333CR-GDC DC CNVRTR 3.234-3.366V 1.2W |
100 |
|
Техническая документация |
XCL103 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 0.9V | 6V | 3.234 ~ 3.366V | - | - | - | 350mA | 1.2 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|

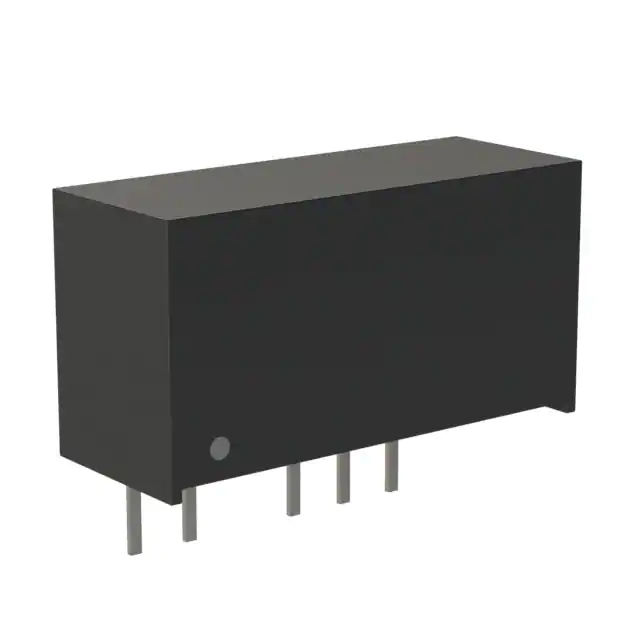

DB10E1BH1DC DC CONVERTER 15V -15V 1W |
3,134 |
|
Техническая документация |
- | 7-SIP Module, 5 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 70% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | - | - |
|
PUB1205S1MDC DC CONVERTER 5V 1W |
154 |
|
Техническая документация |
PUB-1M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 110°C (With Derating) | 81% | - | - | Surface Mount | 0.50" L x 0.44" W x 0.26" H (12.8mm x 11.2mm x 6.6mm) | - | - | cURus, IEC, UL | 62368-1 |
|
|
PUB2405S1MDC DC CONVERTER 5V 1W |
1,492 |
|
Техническая документация |
PUB-1M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 110°C (With Derating) | 75% | - | - | Surface Mount | 0.50" L x 0.44" W x 0.26" H (12.8mm x 11.2mm x 6.6mm) | - | - | cURus, IEC, UL | 62368-1 |
|
1D8E_0503S3UISOLATED MODULE DC DC CONVERTERS |
3,472 |
|
Техническая документация |
1D8E_3U (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) | - | - | CE | 60950-1 |
|
0.1D8A_0505S1.5UISOLATED MODULE DC DC CONVERTERS |
1,806 |
|
Техническая документация |
0.1D8A_1.5U (0.1W) | 8-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 20mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
|
0.1D8A_1212S1.5UISOLATED MODULE DC DC CONVERTERS |
1,555 |
|
Техническая документация |
0.1D8A_1.5U (0.1W) | 8-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 8.3mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 0.45" L x 0.39" W x 0.27" H (11.5mm x 9.8mm x 6.8mm) | - | - | - | - |
|
1MD8A_2405S3UPISOLATED MODULE DC DC CONVERTERS |
3,824 |
|
Техническая документация |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
1MD8A_1205S3UPISOLATED MODULE DC DC CONVERTERS |
1,765 |
|
Техническая документация |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
1MD8A_2415S3UPISOLATED MODULE DC DC CONVERTERS |
4,354 |
|
Техническая документация |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
1MD8A_2412S3UPISOLATED MODULE DC DC CONVERTERS |
3,477 |
|
Техническая документация |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
1MD8A_0512S3UPISOLATED MODULE DC DC CONVERTERS |
3,325 |
|
Техническая документация |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
1MS4A_1215S3UPISOLATED MODULE DC DC CONVERTERS |
2,361 |
|
Техническая документация |
1MS4A_3UP (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
|
1MS4A_1212S3UPISOLATED MODULE DC DC CONVERTERS |
4,401 |
|
Техническая документация |
1MS4A_3UP (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|

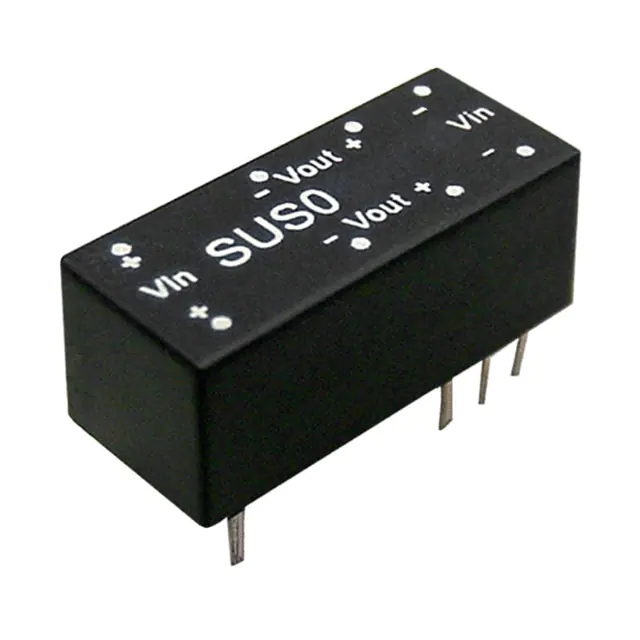

SUS01O-12DC DC CONVERTER 12V 1W |
2,732 |
|
Техническая документация |
SUS01 (1W) | 16-DIP Module, 8 Leads | Box | Active | Isolated Module | 1 | 43.2V | 52.8V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | 0.89" L x 0.39" W x 0.35" H (22.6mm x 9.9mm x 8.9mm) | - | - | - | - |
|
2S4E_1524S1UISOLATED MODULE DC DC CONVERTERS |
3,847 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
2S4E_1212S1UISOLATED MODULE DC DC CONVERTERS |
1,192 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
2S4E_1224S1UISOLATED MODULE DC DC CONVERTERS |
2,985 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
PC02S1205ADC DC CONVERTER 5V 2W |
2,026 |
|
Техническая документация |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
0.1MS4A_1205S1.5UPISOLATED MODULE DC DC CONVERTERS |
1,975 |
|
Техническая документация |
0.1MS4A_1.5UP (0.1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 20mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 62% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | CE | - |
