DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC5SAW-24D12NDC DC CONVERTER +/-12V 10W |
4,540 |
|
Техническая документация |
EC5SAW (10W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | CE | - |
|
ATA02B36-LDC DC CONVERTER 12V 8W |
4,640 |
|
Техническая документация |
ATA (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
MGS101215DC DC CONVERTER 15V |
2,168 |
|
Техническая документация |
MGS (10W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 700mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|

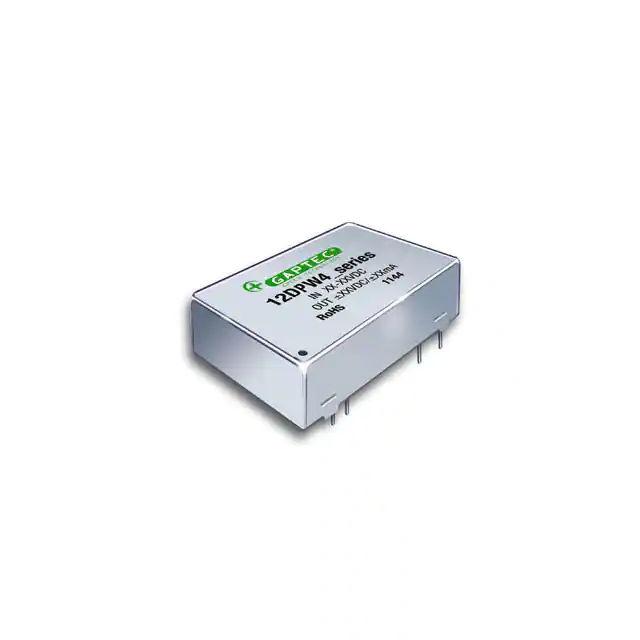

12DPW4_2405D1.5ISOLATED MODULE DC DC CONVERTERS |
3,684 |
|
Техническая документация |
12DPW4_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1.2A, 1.2A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.24" L x 0.79" W x 0.39" H (31.6mm x 20.1mm x 10.0mm) | - | - | - | - |
|

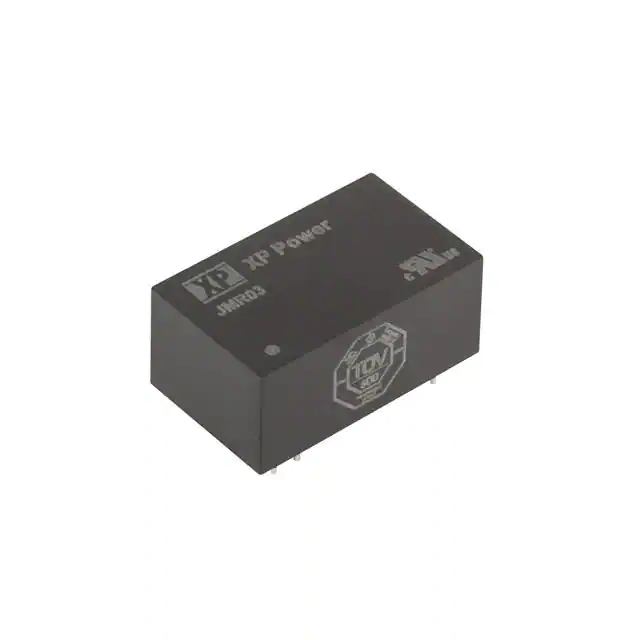

JMR0312S12DC/DC CONVERTER 12V 3.5W |
2,051 |
|
Техническая документация |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 292mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | 0.96" L x 0.58" W x 0.43" H (24.4mm x 14.7mm x 10.8mm) | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR0312S05DC/DC CONVERTER 5V 3.5W |
3,585 |
|
Техническая документация |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | 0.96" L x 0.58" W x 0.43" H (24.4mm x 14.7mm x 10.8mm) | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR0324S12DC/DC CONVERTER 12V 3.5W |
3,480 |
|
Техническая документация |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 292mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | 0.96" L x 0.58" W x 0.43" H (24.4mm x 14.7mm x 10.8mm) | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
410-293-BDC DC CONVERTER +/-9V 2W |
3,407 |
|
Техническая документация |
PowerBrick | - | Bulk | Active | Breadboard Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 130mA, 130mA | 2 W | - | - | - | - | - | - | - | Through Hole | - | - | - | - | - |
|
410-294-BDC DC CONVERTER +/-3.3V 2W |
3,138 |
|
Техническая документация |
PowerBrick | - | Bulk | Active | Breadboard Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 350mA, 320mA | 2 W | - | - | - | - | - | - | - | Through Hole | - | - | - | - | - |
|
TMR 3-7210WIRDC DC CONVERTER 3.3V 2.3W |
4,368 |
|
Техническая документация |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 3.3V | - | - | - | 700mA | 2.3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 76% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
|
TMR 3-7213WIRDC DC CONVERTER 15V 3W |
2,908 |
|
Техническая документация |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TMR 3-7219WIRDC DC CONVERTER 9V 3W |
4,922 |
|
Техническая документация |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
REC5-0512DRW/H4/ADC DC CONVERTER +/-12V 5W |
4,294 |
|
Техническая документация |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 75% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
REC5-0515DRW/H4/ADC DC CONVERTER +/-15V 5W |
2,888 |
|
Техническая документация |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 170mA, 170mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 75% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
AYA01AA24-LDC DC CONVERTER +/-5V 3W |
2,674 |
|
Техническая документация |
AYA (3W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) | - | - | - | - |
|
THL 3-2421WISMDC DC CONVERTER +/-5V 3W |
2,757 |
|
Техническая документация |
THL 3WISM (3W) | 16-SMD Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.32" H (24.0mm x 13.7mm x 8.3mm) | - | - | - | - |
|
TIM 2-2410SMDC DC CONVERTER 3.3V 1.7W |
2,854 |
|
Техническая документация |
TIM 2SM (2W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 500mA | 1.7 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 75% | - | - | Surface Mount | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
THD 10-4823NDC DC CONVERTER +/-15V 10W |
3,671 |
|
Техническая документация |
THD 10N (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC2SBW-24S15DC DC CONVERTER 15V 10W |
3,922 |
|
Техническая документация |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC2SBW-24S12DC DC CONVERTER 12V 10W |
4,301 |
|
Техническая документация |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 835mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
