DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

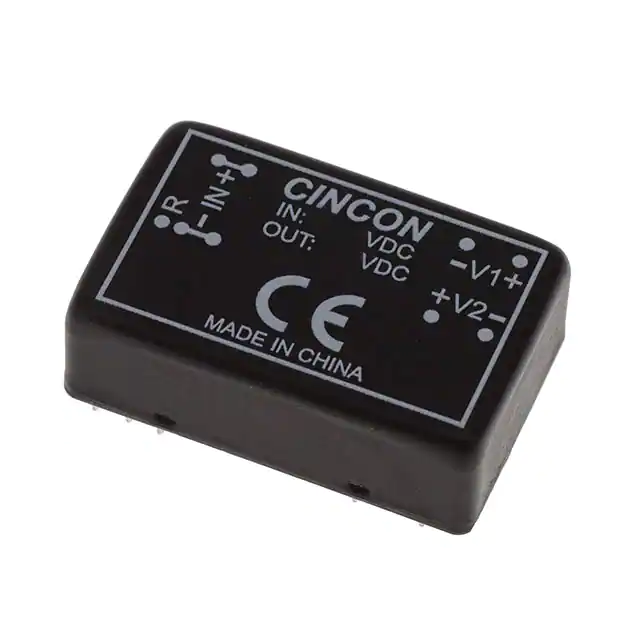

EC7AW-24D12DC-DC CONVERTER |
2,679 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 88.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
TDN 3-1221WISMDC DC CONVERTER +/-5V 3W |
2,706 |
|
Техническая документация |
TDN 3WISM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 80% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TDN 3-2423WISMDC DC CONVERTER +/-15V 3W |
3,729 |
|
Техническая документация |
TDN 3WISM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 82% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
R3M-1205S/SMD3W DC/DC-CONVERTER 'ECONOLINE' S |
1,660 |
|
Техническая документация |
R3M (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TEN 3-2412WIDC DC CONVERTER 12V 3W |
1,966 |
|
Техническая документация |
TEN 3WI (3W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | CB, cCSAus | - |
|

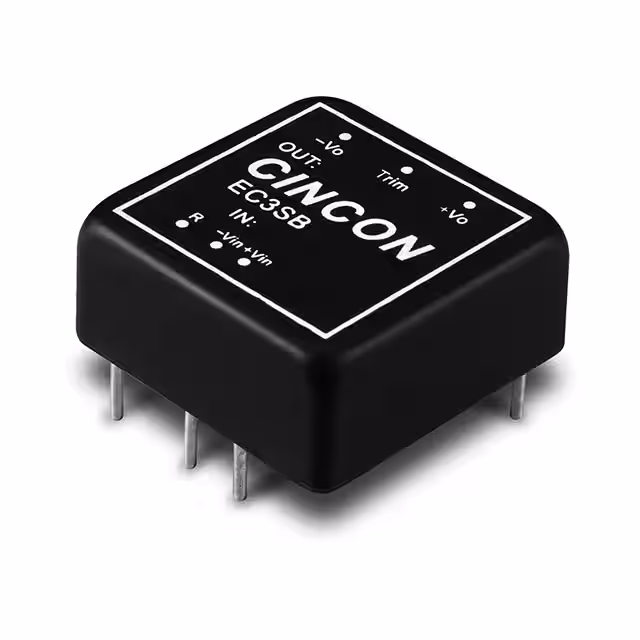

EC3SB-12D05DC DC CONVERTER +/-5V 15W |
3,259 |
|
Техническая документация |
EC3SB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
|
EC3SB-24S05DC DC CONVERTER 5V 15W |
4,633 |
|
Техническая документация |
EC3SB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
EC2SB-12S33DC DC CONVERTER 3.3V 8.3W |
1,221 |
|
Техническая документация |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2.5A | 8.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
TEL 8-2423WIDC DC CONVERTER +/-15V 8W |
2,295 |
|
Техническая документация |
TEL 8WI (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 265mA, 265mA | 8 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 86% | - | - | Through Hole | 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm) | - | - | - | - |
|
TMR 3-4819WIRDC DC CONVERTER 9V 3W |
2,773 |
|
Техническая документация |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
|
ISU0205S24-TRDC DC CONVERTER 24V 2W |
2,099 |
|
Техническая документация |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | 0.75" L x 0.59" W x 0.34" H (19.1mm x 15.0mm x 8.6mm) | - | - | CE, UKCA, UL | 62368-1 |
|
|
ISU0205S24DC DC CONVERTER 24V 2W |
4,610 |
|
Техническая документация |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | 0.75" L x 0.59" W x 0.34" H (19.1mm x 15.0mm x 8.6mm) | - | - | CE, UKCA, UL | 62368-1 |
|
EC7AW-24S12DC-DC CONVERTER |
2,015 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
EC7AW-48S12NDC-DC CONVERTER |
2,288 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 74V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
|
EC7AW-24S15DC-DC CONVERTER |
1,484 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC7AW-48S12DC-DC CONVERTER |
4,865 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 74V | 12V | - | - | - | 833mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
|
|
EC7AW-24S05NDC-DC CONVERTER |
3,542 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
|
EC2SB-24S05DC DC CONVERTER 5V 10W |
3,551 |
|
Техническая документация |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
EC2SB-48D15DC DC CONVERTER +/-15V 10W |
3,500 |
|
Техническая документация |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
EC2SB-05D12DC DC CONVERTER +/-12V 10W |
3,733 |
|
Техническая документация |
EC2SB (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.7V | 9V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CE | 60950-1 |
