DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA3-121503D/SMDDC DC CONVERTER 15V 3V 3W |
3,079 |
|
Техническая документация |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | 3V | - | - | 100mA, 500mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.92" L x 0.59" W x 0.33" H (23.4mm x 15.0mm x 8.5mm) | - | - | - | - |
|

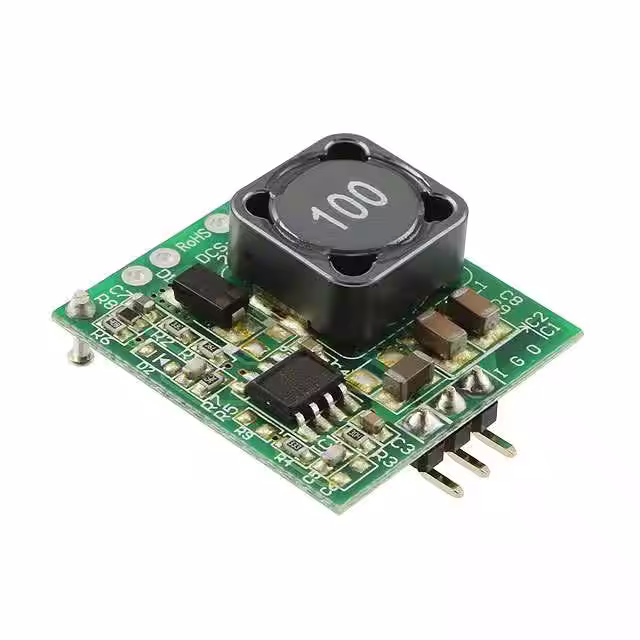

R-78T12-1.0/AC-TRAYDC DC CONVERTER 12V 12W |
2,429 |
|
Техническая документация |
INNOLINE R-78T-1.0 | 3-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 15V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.98" L x 0.91" W x 0.39" H (25.0mm x 23.0mm x 10.0mm) | - | - | - | - |
|
ITU0312S12DC-DC 3W 4:1 |
2,336 |
|
Техническая документация |
ITU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 80°C (With Derating) | 83% | - | - | Through Hole | 0.55" L x 0.55" W x 0.32" H (14.0mm x 14.0mm x 8.1mm) | - | Enable, Active Floating | - | - |
|
|
ITU0348S05DC-DC 3W 4:1 |
1,996 |
|
Техническая документация |
ITU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 80°C (With Derating) | 81% | - | - | Through Hole | 0.55" L x 0.55" W x 0.32" H (14.0mm x 14.0mm x 8.1mm) | - | Enable, Active Floating | - | - |
|
R-78T5.0-1.0/AL-TRAYDC DC CONVERTER 5V 5W |
4,042 |
|
Техническая документация |
INNOLINE R-78T-1.0 | 5-SMD Module, 3 Leads | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 42V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.98" L x 0.91" W x 0.39" H (25.0mm x 23.0mm x 10.0mm) | - | - | - | - |
|
EC4A03H-EDC DC CONVERTER 15V 6W |
2,921 |
|
Техническая документация |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
EC4SAW-48S05HNDC/DC CONVERTER |
3,290 |
|
Техническая документация |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Floating | CE | - |
|
TEL 2-1212DC DC CONVERTER 12V 2W |
3,673 |
|
Техническая документация |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 165mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 80% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
TEL 2-0511DC DC CONVERTER 5V 2W |
2,561 |
|
Техническая документация |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 73% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
TEL 2-0512DC DC CONVERTER 12V 2W |
2,675 |
|
Техническая документация |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 165mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 75% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
EC3A21H-EDC DC CONVERTER 5V 3W |
4,194 |
|
Техническая документация |
EC3A-E (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
NMJ1212SCDC DC CONVERTER +/-12V 1W |
2,850 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 65% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
NMJ0303SACDC DC CONVERTER 3.3V 1W |
3,634 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 66% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
|

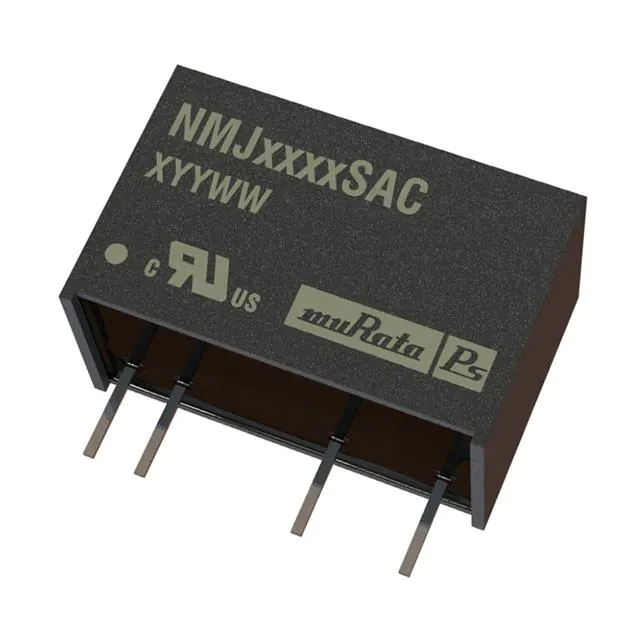

NMJ0512SACDC DC CONVERTER 12V 1W |
3,178 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 71% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
|
NMJ0512SCDC DC CONVERTER +/-12V 1W |
3,991 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 65% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
|
NMJ1212SACDC DC CONVERTER 12V 1W |
2,957 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 73% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
|
NMJ1215SCDC DC CONVERTER +/-15V 1W |
1,155 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 65% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
|
NMJ1215SACDC DC CONVERTER 15V 1W |
4,955 |
|
Техническая документация |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 74% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.4mm) | - | - | - | - |
|
LC78_03-2.0NON-ISOLATED POL MODULE DC DC CO |
3,176 |
|
Техническая документация |
LC78_2.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 30V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
SUS1R51212CDC DC CONVERTER 12V |
1,362 |
|
Техническая документация |
SUS (1.5W) | 5-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 130mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm) | - | - | - | - |
