DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC3SAW-24D15HPDC DC CONVERTER +/-15V 3W |
3,111 |
|
Техническая документация |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE, UL | - |
|
RKZ-2415D/HPDC DC CONVERTER +/-15V 2W |
4,188 |
|
Техническая документация |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
PDQ2-D5-S5-SDC DC CONVERTER 5V 2W |
1,555 |
|
Техническая документация |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 76% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
|
PDQ2-D12-S3-SDC DC CONVERTER 3.3V 2W |
2,912 |
|
Техническая документация |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 76% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
LCW78_03-0.5NON-ISOLATED POL MODULE DC DC CO |
1,181 |
|
Техническая документация |
LCW78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 75V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
PDQ2-D48-S5-SDC DC CONVERTER 5V 2W |
4,391 |
|
Техническая документация |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
SUCS1R51205BDC DC CONVERTER 5V 1.5W |
3,167 |
|
Техническая документация |
SUCS (1.5W) | 5-SMD Module | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
|
SUCS1R5243R3BDC DC CONVERTER 3.3V 1.3W |
2,173 |
|
Техническая документация |
SUCS (1.5W) | 5-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | 1.3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|

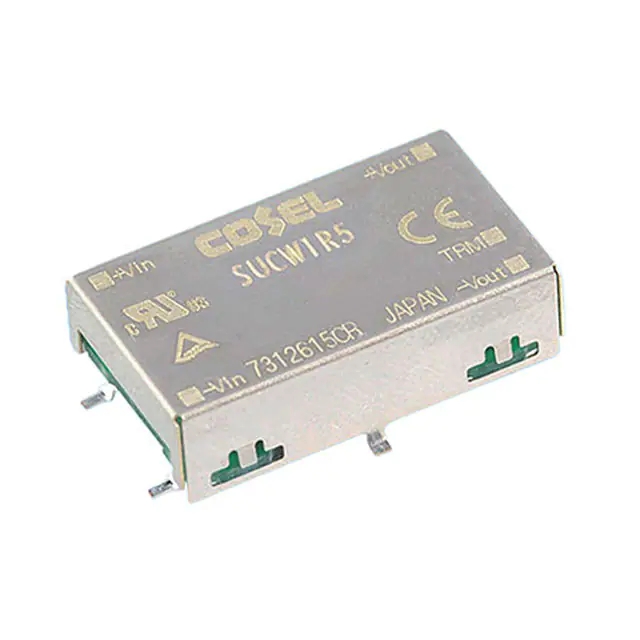

SUCW1R52415BDC DC CONVERTER +/-15V 1.5W |
4,678 |
|
Техническая документация |
SUCW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
MEZD74800A-ADC DC CONVERTER 3.3V |
1,732 |
|
Техническая документация |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 75V | 3.3V | - | - | - | 300mA | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|
|
RKZ-241509D/HPDC DC CONVERTER 15V -9V 2W |
3,476 |
|
Техническая документация |
ECONOLINE RKZ (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -9V | - | - | 66mA, 111mA | 2 W | 4 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

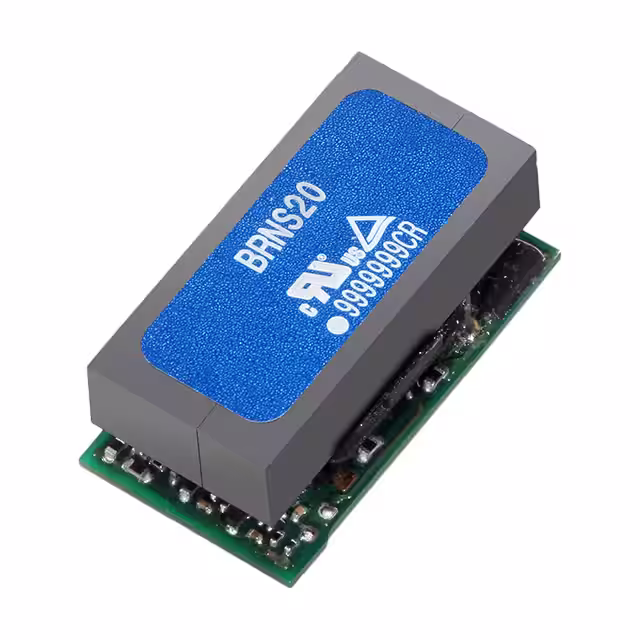

BRNS20DC DC CONVERTER 0.6-5.5V |
1,330 |
|
Техническая документация |
BRNS | 17-SMD Module | Strip | Active | Non-Isolated PoL Module | 1 | 3V | 14.4V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm) | - | - | - | - |
|
R2S-0524/PDC DC CONVERTER 24V 2W |
3,193 |
|
Техническая документация |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
|
R2S-0515/HDC DC CONVERTER 15V 2W |
2,471 |
|
Техническая документация |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|

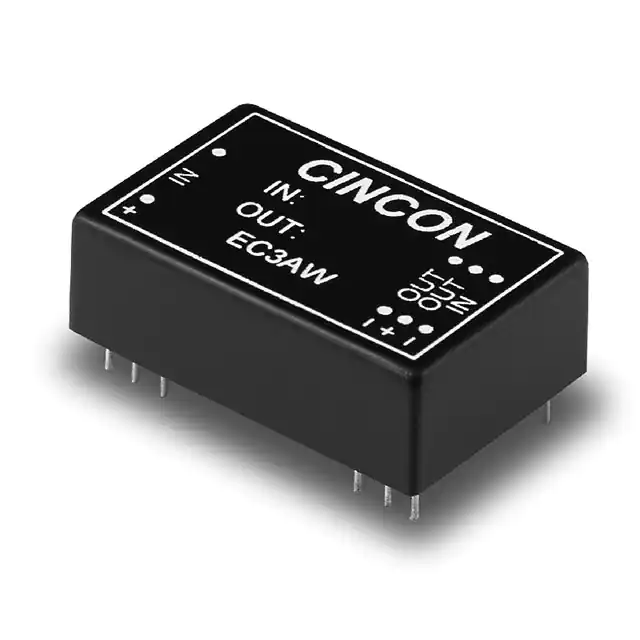

EC3AW01DC DC CONVERTER 5V 3W |
4,211 |
|
Техническая документация |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
TSR 0.6-48150WIDC DC CONVERTER 15V 3SIP |
1,392 |
|
Техническая документация |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 20V | 72V | 15V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) | - | - | - | - |
|

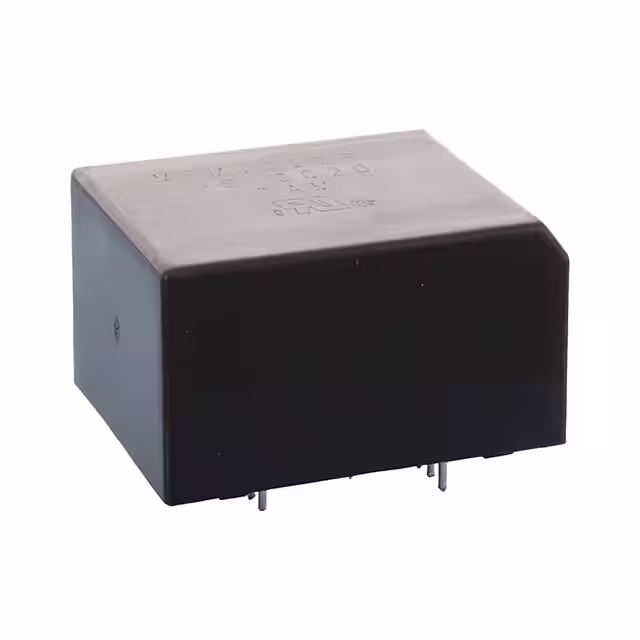

MPM1220SJDC DC CONVERTER 12V 24W |
2,065 |
|
Техническая документация |
MPM | 14-DIP Module | Bulk | Active | - | 1 | 100V | 420V | 12V | - | - | - | 2A | 24 W | - | Household Appliances, ITE (Commercial) | - | -20°C ~ 80°C (With Derating) | 86% | - | - | Through Hole | 1.60" L x 1.25" W x 0.93" H (40.6mm x 31.7mm x 23.6mm) | - | Enable, Active Low | CB, CSA, IEC, UL | 60950-1; 62368-1 |
|
TEC 2-1221WIDC DC CONVERTER +/-5V 2W |
3,413 |
|
Техническая документация |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-4822WIDC DC CONVERTER +/-12V 2W |
4,631 |
|
Техническая документация |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

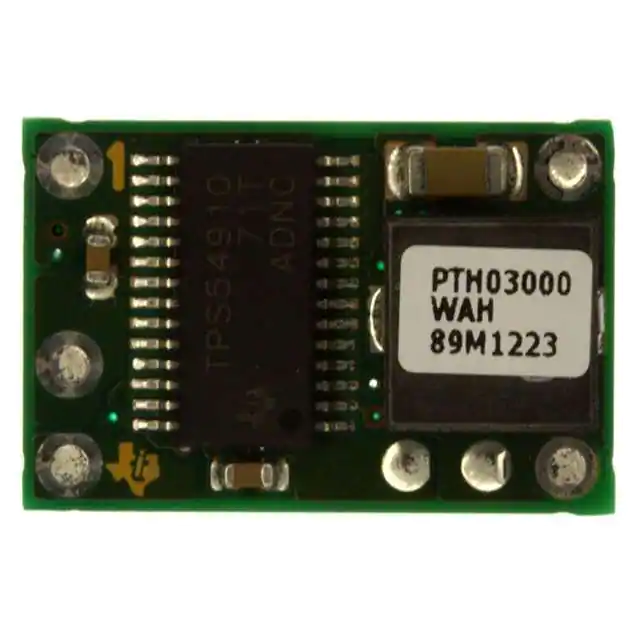

PTH03000WADDC DC CONVERTER 0.9-2.5V |
4,677 |
|
Техническая документация |
PTH03000W | 5-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 3.6V | 0.9 ~ 2.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) | - | - | - | - |
