DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCM1524D12DC DC CONVERTER +/-12V 15W |
4,837 |
|
Техническая документация |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
TEN 8-4822DC DC CONVERTER +/-12V 8W |
1,522 |
|
Техническая документация |
TEN 8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 335mA, 335mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TMR 12-2415WIULTRA COMPACT 12 WATT DC/DC IN S |
3,108 |
|
Техническая документация |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 500mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
|
TMR 12-1215WIULTRA COMPACT 12 WATT DC/DC IN S |
1,419 |
|
Техническая документация |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 24V | - | - | - | 500mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|
PDQ10-Q24-D5-DDC DC CONVERTER +/-5V 10W |
3,259 |
|
Техническая документация |
PDQ10-D (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | Enable, Active High | EN | 55032 Class A |
|

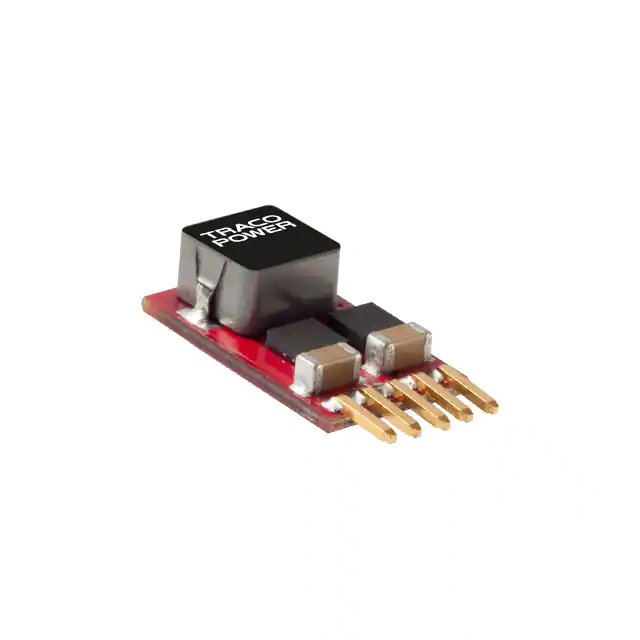

TSR 3-24150ADC DC CONVERTER 5-15V 45W |
1,735 |
|
Техническая документация |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 10V | 30V | 5 ~ 15V | - | - | - | 3A | 45 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.65" L x 0.41" W x 0.24" H (16.5mm x 10.4mm x 6.2mm) | - | - | - | - |
|
TDR 3-2422SMDC DC CONVERTER +/-12V 3W |
3,340 |
|
Техническая документация |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TDR 3-1222SMDC DC CONVERTER +/-12V 3W |
4,080 |
|
Техническая документация |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
CCG10-48-05SRDC DC CONVERTER 5V 10W |
1,115 |
|
Техническая документация |
CCG1R5-10 (10W) | 6-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 90°C (With Derating) | 89% | - | - | Surface Mount | 0.75" L x 0.49" W x 0.46" H (19.0mm x 12.4mm x 11.8mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG10-12-05SRDC DC CONVERTER 5V 10W |
3,396 |
|
Техническая документация |
CCG1R5-10 (10W) | 6-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 90°C (With Derating) | 90% | - | - | Surface Mount | 0.75" L x 0.49" W x 0.46" H (19.0mm x 12.4mm x 11.8mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
REC30E-2415DZ30W DC/DC-CONVERTER 'ECONOLINE' |
2,369 |
|
Техническая документация |
REC30E-Z (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 2 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 10.0mm) | - | - | - | 62368-1 |
|
|
TMR 12-2423WIULTRA COMPACT 12 WATT DC/DC IN S |
1,036 |
|
Техническая документация |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm) | - | - | CB, cURus | 62368-1 |
|

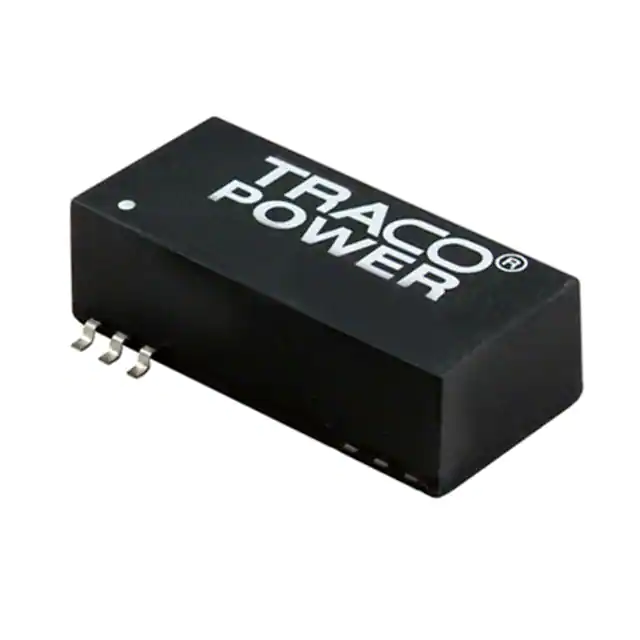

TES 3-2411WIDC DC CONVERTER 5V 3W |
2,975 |
|
Техническая документация |
TES 3WI (3W) | 24-SMD Module, 12 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 79% | - | - | Surface Mount | 1.27" L x 0.58" W x 0.40" H (32.2mm x 14.8mm x 10.2mm) | - | - | - | - |
|
TEN 5-2421DC DC CONVERTER +/-5V 5W |
1,175 |
|
Техническая документация |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
|
TEN 5-1222DC DC CONVERTER +/-12V 6W |
2,065 |
|
Техническая документация |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TEN 5-4821DC DC CONVERTER +/-5V 5W |
4,511 |
|
Техническая документация |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
SPM15-050-Q12N-CDC DC CONVERTER 5V 15W |
3,405 |
|
Техническая документация |
SPM15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | - | Enable, Active Low | - | - |
|
THL 15-4815WIDC DC CONVERTER 24V 15W |
1,683 |
|
Техническая документация |
THL 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 625mA | 15 W | 1.8 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 70°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | CB | - |
|
TDR 3-1211WISMDC DC CONVERTER 5V 3W |
1,666 |
|
Техническая документация |
TDR 3WISM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
EC4SBW-24D15DC DC CONVERTER +/-15V 20W |
2,434 |
|
Техническая документация |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 660mA, 660mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
