DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCW03B-12-3KDC/DC CONVERTER 3W |
4,364 |
|
Техническая документация |
* | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCW03B-05-3KDC/DC CONVERTER 3W |
4,002 |
|
Техническая документация |
* | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SCW03B-03DC/DC CONVERTER 3W |
1,920 |
|
Техническая документация |
* | - | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VEQ15-Q24-D12DC-DC CONVERTER 200KHZ REMOTE |
4,593 |
|
Техническая документация |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADDC02815DAKVPDC DC CONVERTER +/-15V 200W |
4,204 |
|
Техническая документация |
- | Module | Bulk | Active | Isolated Module | 2 | 18V | 40V | 15V | -15V | - | - | 6.68A | 200 W | 500 V | ITE (Commercial) | Adjustable Output, Load Sharing, Remote Sense | -40°C ~ 85°C | 85% | - | - | - | 2.74" L x 1.50" W x 0.39" H (69.7mm x 38.1mm x 9.9mm) | - | - | - | - |
|
|
LTM8008HV#3GSPBFDC DC CONVERTER 5V 5V 5V |
2,244 |
|
Техническая документация |
µModule® | 121-BLGA Module | Tray | Active | Non-Isolated PoL Module | 6 | 3V | 72V | 5V | 5V | 5V | 5V | 500mA, 150mA, 150mA, 150mA | - | - | ITE (Commercial) | - | -40°C ~ 150°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 121-LGA (15x15) | - | - | - |
|

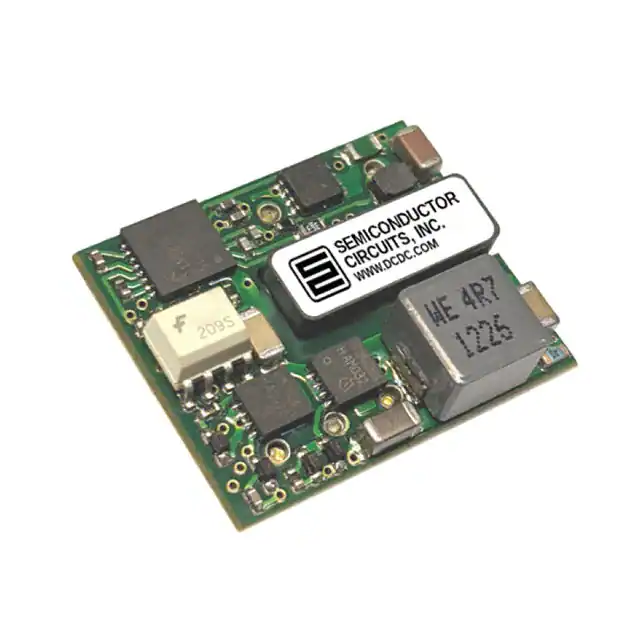

CPZ3B48PDC DC CONVERTER 12V 36W |
1,608 |
|
Техническая документация |
CPZ | Thirty-Second Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 3A | 36 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | 0.94" L x 0.78" W x 0.35" H (23.9mm x 19.8mm x 8.9mm) | Thirty-Second Brick | Enable, Active High | TUV | - |
|
|
CPZ4A36PDC DC CONVERTER 5V 20W |
4,310 |
|
Техническая документация |
CPZ | Thirty-Second Brick | Tray | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.94" L x 0.78" W x 0.35" H (23.9mm x 19.8mm x 8.9mm) | Thirty-Second Brick | Enable, Active High | TUV | - |
|
|
CPZ3B48NDC DC CONVERTER 12V 36W |
3,726 |
|
Техническая документация |
CPZ | Thirty-Second Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 3A | 36 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | 0.94" L x 0.78" W x 0.35" H (23.9mm x 19.8mm x 8.9mm) | Thirty-Second Brick | Enable, Active Low | TUV | - |
|
|
AM6GH-4805SH30ZDC DC CONVERTER 5V 6W |
4,701 |
|
Техническая документация |
AM6GH-Z (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.2A | 6 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | CE, cURus | - |
|
|
AM2LS-0503S-NZDC DC CONVERTER 3.3V 1.3W |
3,328 |
|
Техническая документация |
AM2LS-NZ (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 71% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | - | - |
|
AM1DM-0512SH60-NZDC DC CONVERTER 12V 1W |
1,538 |
|
Техническая документация |
AM1DM-NZ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 6 kV | Medical | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.39" W x 0.51" H (19.5mm x 9.8mm x 13.0mm) | - | - | CE, cURus | - |
|
|
AM40W-60012S-NZDC DC CONVERTER 12V 40W |
4,705 |
|
Техническая документация |
AM40W-NZ (40W) | 5-DIP Module | Bulk | Active | Isolated Module | 1 | 200V | 1200V | 12V | - | - | - | 3.33A | 40 W | 4 kV | ITE (Commercial) | - | -25°C ~ 70°C (With Derating) | 83% | - | - | Through Hole | 3.50" L x 2.50" W x 0.98" H (89.0mm x 63.5mm x 25.0mm) | - | - | cCSAus, CE | - |
|
AM1DS-2403S-NZDC DC CONVERTER 3.3V 1W |
1,913 |
|
Техническая документация |
AM1DS-N(J)Z (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.38" H (19.5mm x 6.0mm x 9.6mm) | - | - | cURus | - |
|
|
AM15E-2405S-NZDC DC CONVERTER 5V 15W |
2,449 |
|
Техническая документация |
AM15E-NZ (15W) | 6-DIP Module | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE, cURus | - | |
|
|
AM5TG-241509DH30-NZDC DC CONVERTER 15V -9V 6W |
1,506 |
|
Техническая документация |
AM5TG-NZ (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -9V | - | - | 200mA, 200mA | 6 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | - | - |
|
|
AM1LO-0503SH421DC DC CONVERTER 3.3V 1W |
3,182 |
|
Техническая документация |
AM1LO (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 4.2 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 76% | - | - | Surface Mount | 0.50" L x 0.44" W x 0.27" H (12.7mm x 11.2mm x 6.9mm) | - | - | CE, cURus | - |
|
|
AM1LS-2409S-NZDC DC CONVERTER 9V 999MW |
2,394 |
|
Техническая документация |
AM1LS-N(J)Z (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | cURus | - |
|
|
AM1DS-0524SJZDC DC CONVERTER 24V 1W |
1,426 |
|
Техническая документация |
AM1DS-N(J)Z (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.38" H (19.5mm x 6.0mm x 9.6mm) | - | - | cURus | - |
|
|
AM1LS-0315D-NZDC DC CONVERTER +/-15V 990MW |
2,947 |
|
Техническая документация |
AM1LS-N(J)Z (1W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 2.97V | 3.63V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | cURus | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
