DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

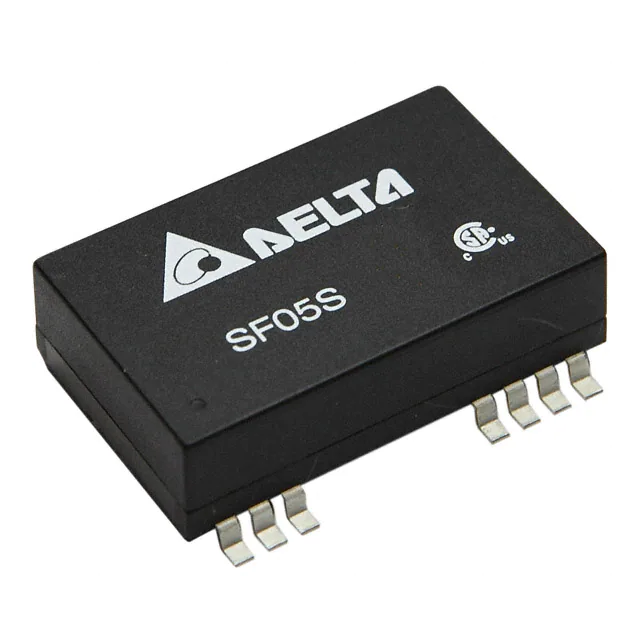

SF05S1203ADC DC CONVERTER 3.3V 5W |
4,895 |
|
Техническая документация |
SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 76% | - | - | Surface Mount | 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
SF05S1215ADC DC CONVERTER 15V 5W |
1,574 |
|
Техническая документация |
SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 333mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 83% | - | - | Surface Mount | 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
SF05S2403ADC DC CONVERTER 3.3V 5W |
4,185 |
|
Техническая документация |
SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.2A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 78% | - | - | Surface Mount | 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
SF05S2405ADC DC CONVERTER 5V 5W |
3,201 |
|
Техническая документация |
SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 82% | - | - | Surface Mount | 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
SF05D1205ADC DC CONVERTER +/-5V 5W |
2,452 |
|
Техническая документация |
SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 80% | - | - | Surface Mount | 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
SF05D2412ADC DC CONVERTER +/-12V 5W |
1,658 |
|
Техническая документация |
SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 208mA, 208mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 85% | - | - | Surface Mount | 1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm) | - | Enable, Active High | - | - |
|

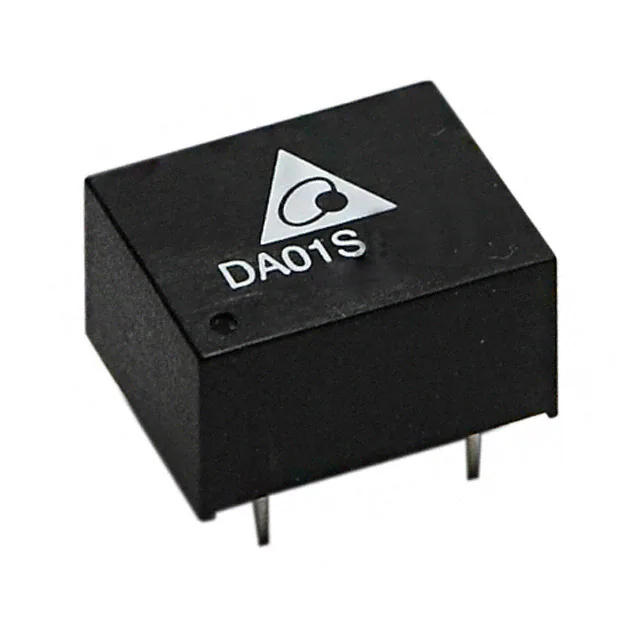

DA01S0505ADC DC CONVERTER 5V 1W |
3,935 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S0509ADC DC CONVERTER 9V 1W |
1,702 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S0512ADC DC CONVERTER 12V 1W |
3,704 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S0515ADC DC CONVERTER 15V 1W |
4,416 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S1205ADC DC CONVERTER 5V 1W |
1,967 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 71% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S1209ADC DC CONVERTER 9V 1W |
3,589 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S1212ADC DC CONVERTER 12V 1W |
3,042 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S1215ADC DC CONVERTER 15V 1W |
3,444 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S2405ADC DC CONVERTER 5V 1W |
3,093 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S2409ADC DC CONVERTER 9V 1W |
4,135 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S2412ADC DC CONVERTER 12V 1W |
2,398 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
|
DA01S2415ADC DC CONVERTER 15V 1W |
2,584 |
|
Техническая документация |
DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm) | - | - | - | - |
|
DC02S0505ADC DC CONVERTER 5V 2W |
4,728 |
|
Техническая документация |
DC02S/D (2W) | 24-DIP Module, 9 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 6 kV | ITE (Commercial) | SCP | -25°C ~ 75°C | 62% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
DC02S1205ADC DC CONVERTER 5V 2W |
2,887 |
|
Техническая документация |
DC02S/D (2W) | 24-DIP Module, 9 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 6 kV | ITE (Commercial) | SCP | -25°C ~ 75°C | 62% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
