DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDE2024S15DC DC CONVERTER 15V 20W |
2,663 |
|
Техническая документация |
RDE20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 13V | 70V | 15V | - | - | - | 1.33A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
EN6363QIDC DC CONVERTER 0.75-6.12V |
2,024 |
|
Техническая документация |
Enpirion® | 34-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 6.6V | 0.75 ~ 6.12V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.24" L x 0.16" W x 0.10" H (6.0mm x 4.0mm x 2.5mm) | 34-QFN (4x6) | Enable, Active High | - | - |
|
|
PTB48530AAZDC DC CONVERTER 48V 27W |
4,063 |
|
Техническая документация |
PTB48530A | - | Tray | Obsolete | Isolated Module | 2 | 3V | 3.6V | - | - | - | - | - | 27 W | - | ITE (Commercial) | - | - | - | - | - | Surface Mount | - | - | - | - | - |
|
|
RDT-6Y03DC-DC,14-160V INPUT, 3.3V/1.45A |
2,516 |
|
Техническая документация |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 3.3V | - | - | - | 1.454A | 4.8 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 75% | - | - | Through Hole | 1.24" L x 0.80" W x 0.49" H (31.6mm x 20.3mm x 12.5mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RDT-6Y12DC-DC,14-160V INPUT, 12V/0.5A OU |
1,407 |
|
Техническая документация |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 1.24" L x 0.80" W x 0.49" H (31.6mm x 20.3mm x 12.5mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
UWTH1D54LD-20WR3ISOLATED MODULE DC DC CONVERTER |
2,512 |
|
Техническая документация |
UWTH1D_LD-20W(F/H)R3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 370mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CB, cCSAus, CE, CSA, EN, IEC, UKCA | 62368-1 |
|
|
AM20JW-2405SH30ZDC DC CONVERTER 5V 20W |
3,542 |
|
Техническая документация |
AM20JW-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.60" L x 1.00" W x 0.43" H (40.6mm x 25.4mm x 10.9mm) | - | - | - | - |
|
|
AM20JW-2412SH30ZDC DC CONVERTER 12V 20W |
1,515 |
|
Техническая документация |
AM20JW-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 88.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.43" H (40.6mm x 25.4mm x 10.9mm) | - | - | - | - |
|
|
NVS0.3EJ-M6DC DC CONVERTER 15V 6W |
196 |
|
Техническая документация |
NV (6W) | 14-SMD Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 280mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 110°C | 82% | - | - | Surface Mount | 1.30" L x 0.81" W x 0.33" H (33.0mm x 20.6mm x 8.4mm) | - | - | - | - |
|

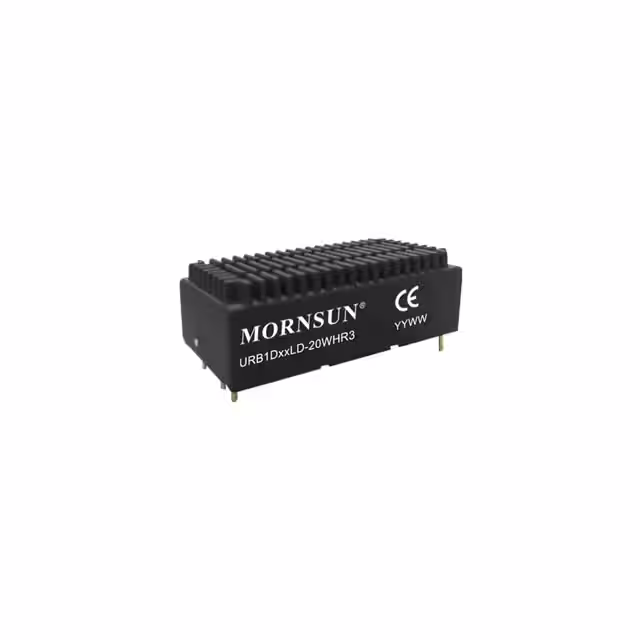

URB1D15LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1,874 |
|
Техническая документация |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 15V | - | - | - | 1.33A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CE | 60950-1 |
|
|
UWS-3.3/15-Q12P-CDC DC CONVERTER 3.3V 50W |
169 |
|
Техническая документация |
UWS-Q12 | Sixteenth Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.1mm) | Sixteenth Brick | Enable, Active High | cURus | - |
|
|
PT6901CDC DC CONVERTER -2V |
1,289 |
|
Техническая документация |
PT6900 (12W) | 23-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | -2V | - | - | - | 6A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 70% | - | - | Surface Mount | 2.67" L x 1.28" W x 0.50" H (67.8mm x 32.5mm x 12.7mm) | - | - | - | - |
|
|
PT7601NDC DC CONVERTER 1.3-3.5V 11A |
1,256 |
|
Техническая документация |
PT7600 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | - |
|
|
PTQA430025N2ADDC DC CONVERTER 2.5V 100W |
1,413 |
|
Техническая документация |
PTQA430025 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm) | - | - | - | - |
|
|
PTQA430025P2ADDC DC CONVERTER 2.5V 100W |
2,297 |
|
Техническая документация |
PTQA430025 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm) | - | - | - | - |
|
|
TWA3-12-12DC DC CONVERTER +/-12V 3W |
3,440 |
|
Техническая документация |
TWA3 (3W) | 24-DIP Module, 12 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.6mm) | - | - | - | - |
|
|
PTB48600AASDC DC CONVERTER +/-5V 85W |
2,246 |
|
Техническая документация |
PTB48600 (85W) | 8-SMD Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 8.5A, 8.5A | 85 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | 2.22" L x 1.89" W x 0.50" H (56.4mm x 48.0mm x 12.7mm) | - | - | - | - |
|
|
VCB4812EBO-400WR3-NISOLATED MODULE DC DC CONVERTER |
3,919 |
|
Техническая документация |
VCB48_EBO-400WR3-N (400W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.30" L x 0.90" W x 0.42" H (58.4mm x 22.9mm x 10.7mm) | Eighth Brick | - | - | - |
.jpg)
|
REC6-4824SRW/R10/CDC DC CONVERTER 24V 6W |
180 |
|
Техническая документация |
ECONOLINE REC6/R (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 250mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
PT4563CDC DC CONVERTER 12V 30W |
3,338 |
|
Техническая документация |
Excalibur™ PT4560 (30W) | 19-SMD Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | 3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm) | - | - | - | - |
