DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2S-2415/HPDC DC CONVERTER 15V 2W |
195 |
|
Техническая документация |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
DCP011515DBPDC DC CONVERTER +/-15V 1W |
308 |
|
Техническая документация |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | Enable, Active High | - | - |
|
DCP011512DBPDC DC CONVERTER +/-12V 1W |
231 |
|
Техническая документация |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | Enable, Active High | - | - |
|

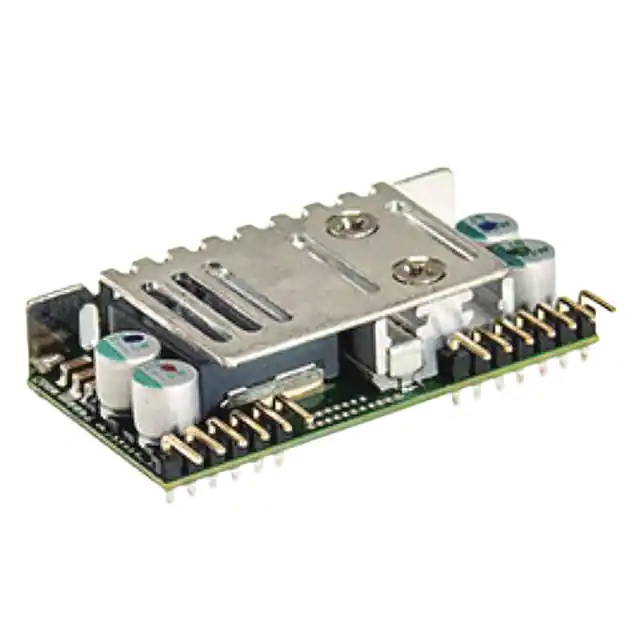

NID100-12DC DC CONVERTER 12V 90W |
239 |
|
Техническая документация |
NID100 (100W) | 13-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 20V | 53V | 12V | - | - | - | 7.5A | 90 W | - | ITE (Commercial) | Remote On/Off | -30°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 2.00" L x 0.47" W x 1.08" H (50.8mm x 12.0mm x 27.5mm) | - | - | CE, EAC | - |
|
AG5712-LPBDC DC CONVERTER 12V 30W |
382 |
|
Техническая документация |
Ag5700 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 40V | 57V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88.5% | - | - | Surface Mount | 1.30" L x 0.87" W x 0.51" H (33.0mm x 22.0mm x 13.0mm) | - | - | - | - |
|
RS3-2415DDC DC CONVERTER +/-15V 3W |
833 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-2412DDC DC CONVERTER +/-12V 3W |
302 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
EC3SAW-24S12PDC DC CONVERTER 12V 3W |
182 |
|
Техническая документация |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | CE | 60950-1 |
|

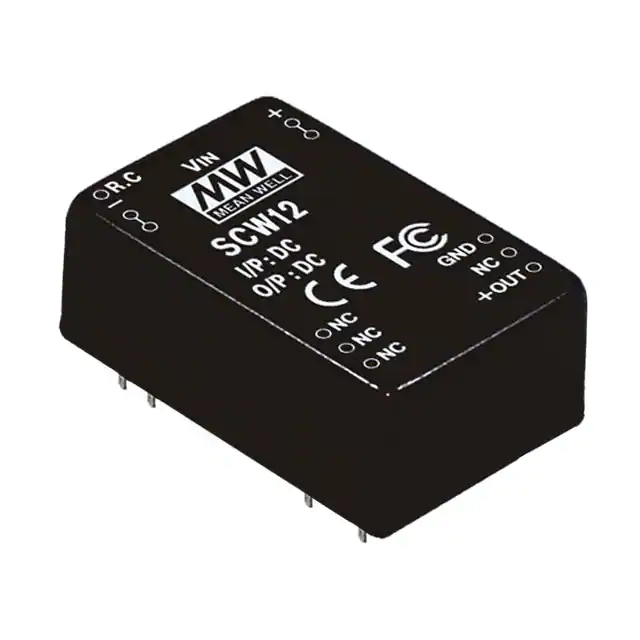

SCW12B-05DC DC CONVERTER 5V 12W |
1,225 |
|
Техническая документация |
SCW12 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) | - | Enable, Active High | - | - |
|
MGJ6D242005DCDC DC CONVERTER 20V -5V 6W |
231 |
|
Техническая документация |
MGJ6 (6W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 20V | -5V | - | - | 240mA, 240mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 82% | - | - | Through Hole | 1.79" L x 1.09" W x 0.39" H (45.5mm x 27.8mm x 9.8mm) | - | - | - | - |
|
|
DCP021212DPDC DC CONVERTER +/-12V 2W |
153 |
|
Техническая документация |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | - | - | - |
|
NDTS0505CDC DC CONVERTER 5V 3W |
579 |
|
Техническая документация |
NDTS (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|
DCP010515BP-UDC DC CONVERTER 15V 1W |
663 |
|
Техническая документация |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
|
DCP010515DBP-UDC DC CONVERTER +/-15V 1W |
343 |
|
Техническая документация |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
|
DCP010505BP-UDC DC CONVERTER 5V 1W |
286 |
|
Техническая документация |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
|
DCP010512DBP-UDC DC CONVERTER +/-12V 1W |
140 |
|
Техническая документация |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|

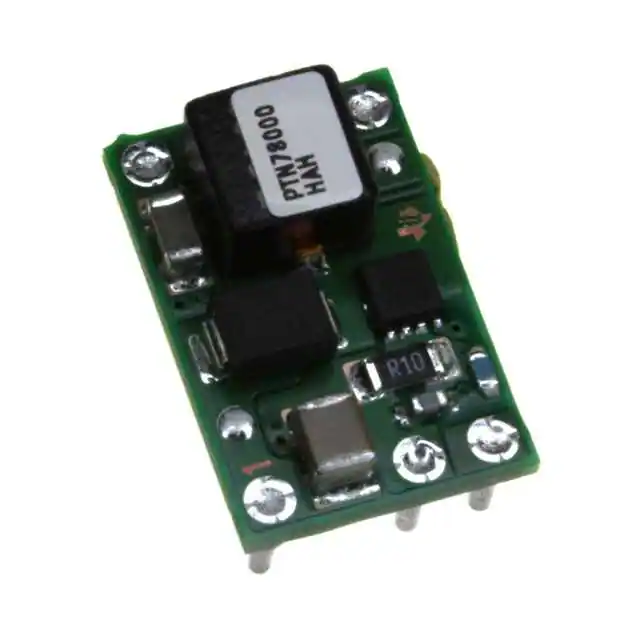

PTN78000HAHDC DC CONVERTER 11.85-22V |
833 |
|
Техническая документация |
PTN78000H | 5-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 11.85 ~ 22V | - | - | - | 1.5A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) | - | - | - | - |
|

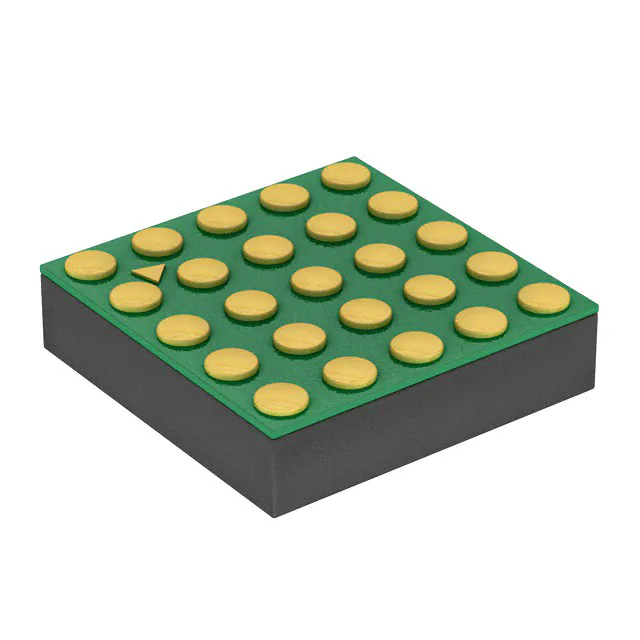

LTM4622AEV#PBFDC DC CONVERTER 1.5-12V 1.5-12V |
781 |
|
Техническая документация |
µModule® | 25-PowerLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.6V | 20V | 1.5 ~ 12V | 1.5 ~ 12V | - | - | 2A, 2A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.07" H (6.3mm x 6.3mm x 1.8mm) | 25-LGA (6.25x6.25) | - | - | - |
|
LTM8078IY#PBFDUAL 40VIN, 3A SILENT SWITCR UMO |
742 |
|
Техническая документация |
LTM®, uModule® | 49-FBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3V | 40V | 3.3V | 5V | - | - | 1.4A, 1.4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.09" H (6.3mm x 6.3mm x 2.2mm) | 49-BGA (6.25x6.25) | - | - | - |
|

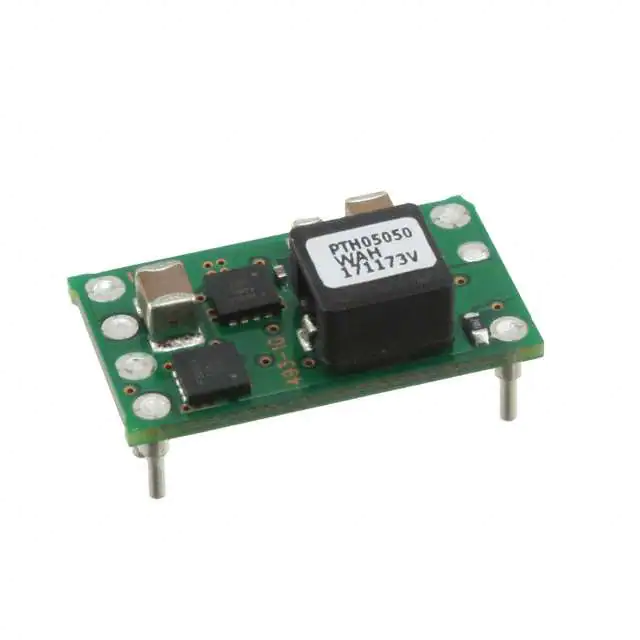

PTH05050WAHDC DC CONVERTER 0.8-3.6V 6A |
349 |
|
Техническая документация |
PTH05050W | 6-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) | - | - | - | - |
