DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1212XT-1WR3-TRDC DC CONVERTER +/-12V 1W |
480 |
|
Техническая документация |
E_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
A1515XT-1WR3-TRDC DC CONVERTER +/-15V 1W |
385 |
|
Техническая документация |
A_XT-1WR3 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|

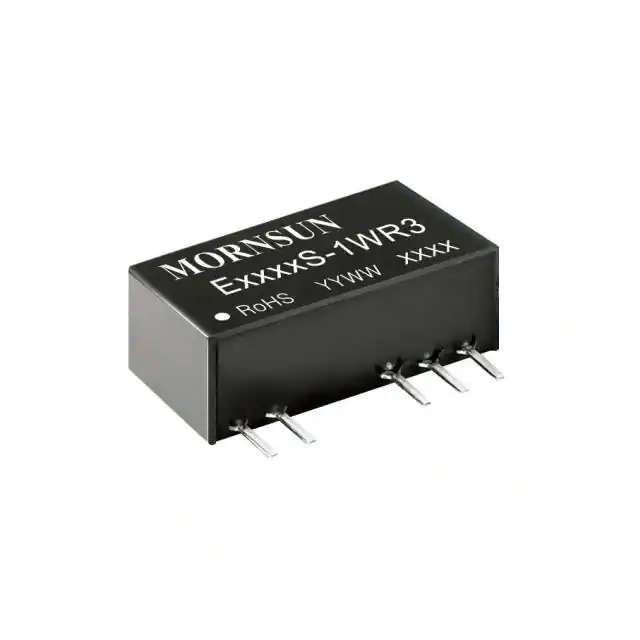

E0303S-1WR3DC DC CONVERTER +/-3.3V 1W |
178 |
|
Техническая документация |
E0303S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
B0512LS-1WR3DC DC CONVERTER 12V 1W |
5,821 |
|
Техническая документация |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
|
B0524LS-1WR3DC DC CONVERTER 24V 1W |
528 |
|
Техническая документация |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
|
B0515LS-1WR3DC DC CONVERTER 15V 1W |
484 |
|
Техническая документация |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
E0505S-1WR3DC DC CONVERTER +/-5V 1W |
440 |
|
Техническая документация |
E_S-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
|
B0509LS-1WR3DC DC CONVERTER 9V 1W |
425 |
|
Техническая документация |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|

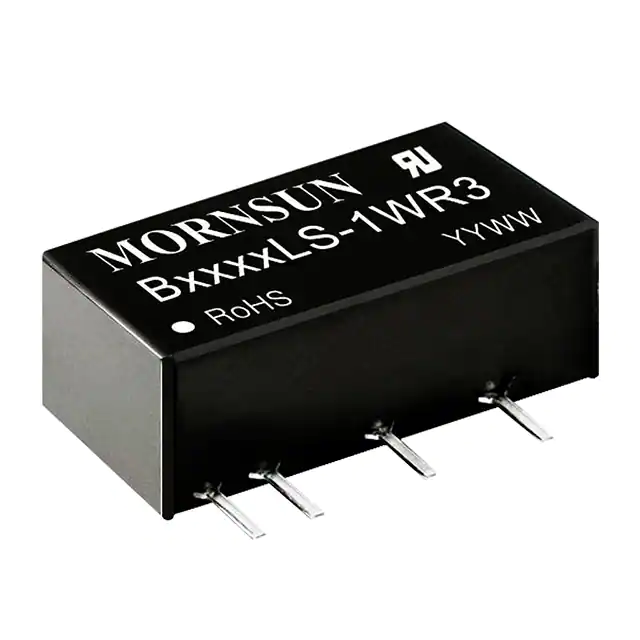

B0503LS-1WR3DC DC CONVERTER 3.3V 1W |
350 |
|
Техническая документация |
B_LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
LXDC44AAAC-169DC DC CONVERTER 5V |
1,214 |
|
Техническая документация |
LXDC44A | 12-SMD, 11 Leads | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 5V | - | - | - | 700mA | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.16" L x 0.16" W x 0.08" H (4.0mm x 4.0mm x 2.0mm) | - | - | - | - |
|
K7812-500R3DC DC CONVERTER +/-12V 7.8W |
5,635 |
|
Техническая документация |
K7812-500R3 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 500mA | 7.8 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
K7815-500R3DC DC CONVERTER +/-15V 9.8W |
144 |
|
Техническая документация |
K7815-500R3 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 8V, 19V | 21V, 36V | 15V, -15V | - | - | - | 500mA, 150mA | 9.8 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | CB, CE, cURus | - |
|
|
E2405D-1WR3ISOLATED MODULE DC DC CONVERTER |
205 |
|
Техническая документация |
E_D-1WR3 (1W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.79" L x 0.39" W x 0.28" H (20.0mm x 10.0mm x 7.0mm) | - | - | - | - |
|

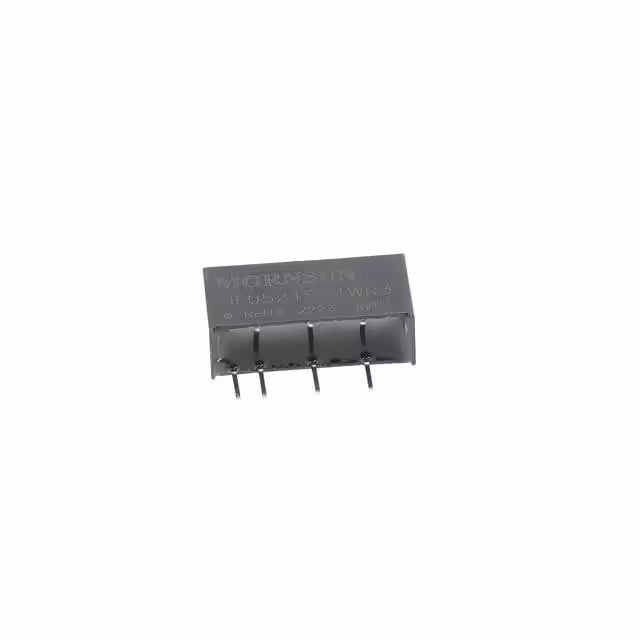

IF0524S-1WR3DC DC CONVERTER 24V 984MW |
146 |
|
Техническая документация |
IF05_S-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 24V | - | - | - | 41mA | 984 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CB, CE, cURus, UKCA | 62368-1 |
|

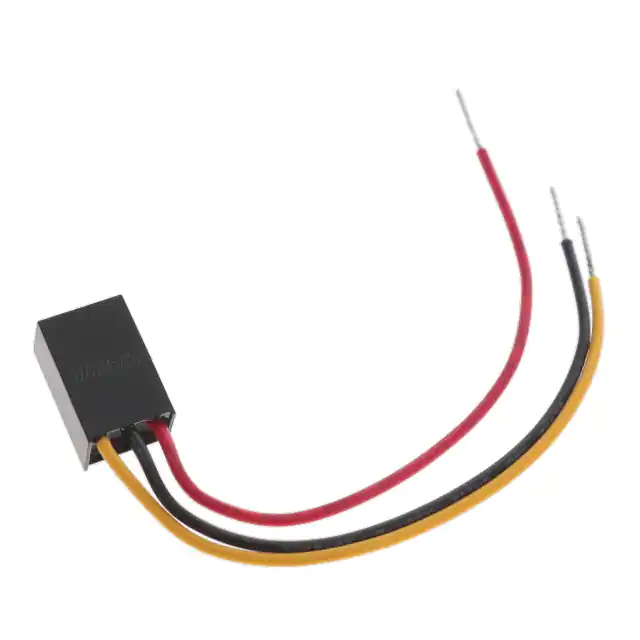

K7809W-500R3DC/DC CONVERTER 9V |
154 |
|
Техническая документация |
K78xxW-500R3 | 3-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) | - | - | CE, UKCA | 62368-1 |
|
|
K7803W-500R3DC/DC CONVERTER 3.3V |
128 |
|
Техническая документация |
K78xxW-500R3 | 3-SIP Module | Tray | Not For New Designs | Non-Isolated PoL Module | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) | - | - | CE, UKCA | 62368-1 |
|
F2409XT-1WR3-TRDC DC CONVERTER 9V 1W |
740 |
|
Техническая документация |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
F1505XT-1WR3-TRDC DC CONVERTER 5V 1W |
479 |
|
Техническая документация |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
F2415XT-1WR3-TRDC DC CONVERTER 15V 1W |
468 |
|
Техническая документация |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
|
|
F1515XT-1WR3-TRDC DC CONVERTER 15V 1W |
465 |
|
Техническая документация |
F_XT-1WR3 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB, CE, cURus, UL | 62368-1 |
