DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THL 20-4815WIDC DC CONVERTER 24V 20W |
3,024 |
|
Техническая документация |
THL 20WI (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 835mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 40-2413WIEDC DC CONVERTER 15V 40W |
1,104 |
|
Техническая документация |
TEN 40WIE (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2.666A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
RP20-2415SFDC DC CONVERTER 15V 20W |
3,718 |
|
Техническая документация |
POWERLINE RP20-F (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
RP20-2405SFDC DC CONVERTER 5V 20W |
1,373 |
|
Техническая документация |
POWERLINE RP20-F (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
RP10-2412DEW/M2DC DC CONVERTER +/-12V 10W |
2,005 |
|
Техническая документация |
POWERLINE RP10-EW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THN 30-2422WIR35 WATT DC/DC CONVERTER, RAILWAY |
3,845 |
|
Техническая документация |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
RP15-2415SFWDC DC CONVERTER 15V 15W |
1,340 |
|
Техническая документация |
POWERLINE RP15-FW (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
JCK4024S12DC DC CONVERTER 12V 40W |
170 |
|
Техническая документация |
JCK (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 3.33A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
PXD20-12S05DC DC CONVERTER 5V 20W |
245 |
|
Техническая документация |
PXD (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | - | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
E35SE05030PDPG9-60VIN; 5VOUT, 150W, ENCAPSULAT |
112 |
|
Техническая документация |
E35SE (150W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 60V | 5V | - | - | - | 30A | 150 W | 4.242 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92.2% | - | - | Through Hole | 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) | Eighth Brick | Enable, Active High | CSA, EN, IEC, UL | 50155; 60950-1; 62368-1 |
|
I7A24045A033V-001-RDC DC CONVERTER 3.3-18V 750W |
1,140 |
|
Техническая документация |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 32V | 3.3V ~ 18V | - | - | - | 45A | 750 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C | 98.5% | - | - | Through Hole | 1.45" L x 1.34" W x 0.45" H (36.8mm x 34.0mm x 11.5mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1 |
|
RP15-2415DAWDC DC CONVERTER +/-15V 15W |
166 |
|
Техническая документация |
POWERLINE RP15-AW (15W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|

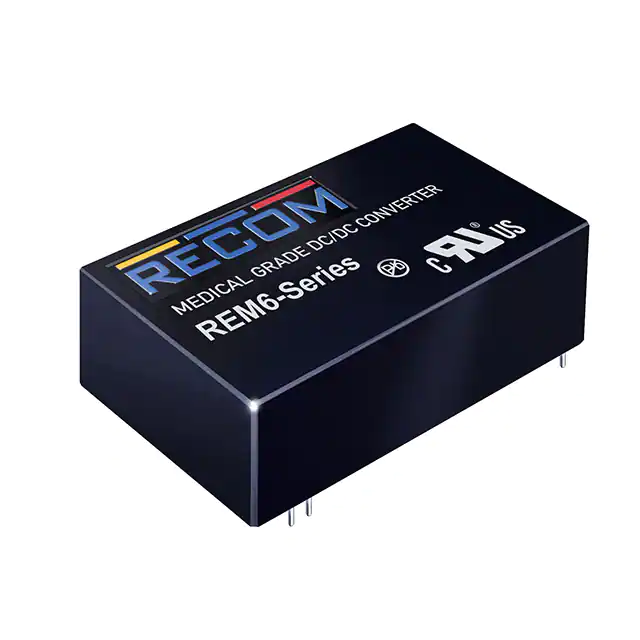

REM6-0505S/ADC DC CONVERTER 5V 6W |
2,629 |
|
Техническая документация |
MEDLINE REM6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1.2A | 6 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
REM6-1212S/CDC DC CONVERTER 12V 6W |
2,250 |
|
Техническая документация |
MEDLINE REM6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM4636IY-1#PBFDC DC CONVERTER 0.6-3.3V |
1,981 |
|
Техническая документация |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.7V | 15V | 0.6 ~ 3.3V | - | - | - | 40A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 88% | - | - | Surface Mount | 0.63" L x 0.63" W x 0.28" H (16.0mm x 16.0mm x 7.1mm) | 144-BGA (16x16) | - | - | - |
|
TVN 5-4812WIDC DC CONVERTER 12V 5W |
1,134 |
|
Техническая документация |
TVN 5WI (5W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 416mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
LTM4601AIY-1DC DC CONVERTER 0.6-5V 60W |
119 |
|
Техническая документация |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 133-BGA (15x15) | - | - | - |
|
PXE20-24WS15DC DC CONVERTER 15V 20W |
3,327 |
|
Техническая документация |
PXE (20W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C | 81% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | - | - | - | - |
|
PXE20-24WS05DC DC CONVERTER 5V 20W |
1,059 |
|
Техническая документация |
PXE (20W) | 8-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C | 79% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | - | - | - | - |
|
CHB50W-24S48DC DC CONVERTER 48V 50W |
234 |
|
Техническая документация |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 1.04A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
