DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 3-1211WIDC DC CONVERTER 5V 3W |
232 |
|
Техническая документация |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
TMR 3-4810WIDC DC CONVERTER 3.3V 2.3W |
112 |
|
Техническая документация |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 700mA | 2.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
TMR 3-1212WIDC DC CONVERTER 12V 3W |
104 |
|
Техническая документация |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 250mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
DKA30A-12DC DC CONVERTER +/-12V 30W |
357 |
|
Техническая документация |
DKA30 (30W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 2.00" W x 0.83" H (50.8mm x 50.8mm x 21.0mm) | - | - | - | - |
|
VAWQ3-Q24-S15HDC DC CONVERTER 15V 3W |
344 |
|
Техническая документация |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TES 2N-1213DC DC CONVERTER 15V 2W |
287 |
|
Техническая документация |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 135mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
TES 2N-2410DC DC CONVERTER 3.3V 1.7W |
112 |
|
Техническая документация |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 500mA | 1.7 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
TMR 6-1222DC DC CONVERTER +/-12V 6W |
150 |
|
Техническая документация |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
JCH1024D15DC DC CONVERTER +/-15V 10W |
791 |
|
Техническая документация |
JCH (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | 62368-1 |
|
TDN 3-4811WISMDC DC CONVERTER 5V 3W |
200 |
|
Техническая документация |
TDN 3WISM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 80% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
YNV12T05-GDC DC CONVERTER 0.75-5.5V 27W |
1,882 |
|
Техническая документация |
Y (27W) | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 9.6V | 14V | 0.75 ~ 5.5V | - | - | - | 5A | 27 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | 0.90" L x 0.21" W x 0.40" H (22.9mm x 5.3mm x 10.2mm) | - | - | - | - |
|
TEL 3-2011DC DC CONVERTER 5V 3W |
628 |
|
Техническая документация |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10V | 30V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
TES 2N-0522DC DC CONVERTER +/-12V 2W |
411 |
|
Техническая документация |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
|
TES 2N-2421DC DC CONVERTER +/-5V 2W |
234 |
|
Техническая документация |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
TMR 3-2422WIDC DC CONVERTER +/-12V 3W |
218 |
|
Техническая документация |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
|
TMR 3-2421WIDC DC CONVERTER +/-5V 3W |
147 |
|
Техническая документация |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
LMZ14201EXTTZE/NOPBDC DC CONVERTER 0.8-6V |
224 |
|
Техническая документация |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 90% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|

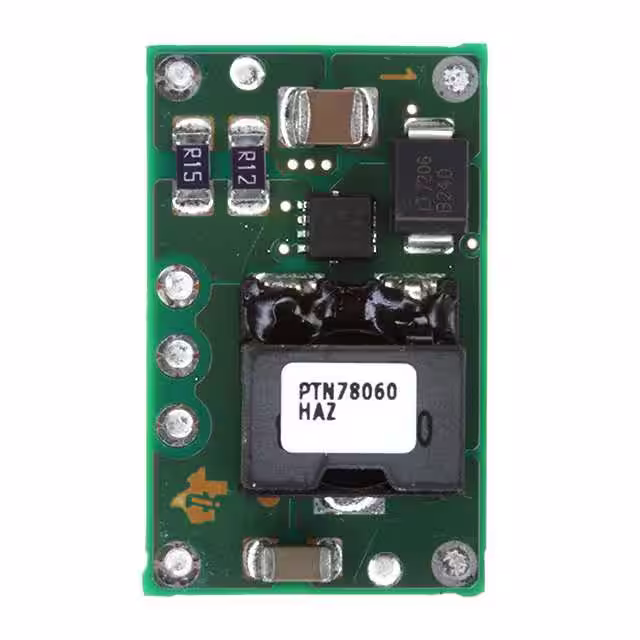

PTN78060HAZTDC DC CONVERTER 11.85-22V |
500 |
|
Техническая документация |
PTN78060H | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 11.85 ~ 22V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm) | - | - | - | - |
|

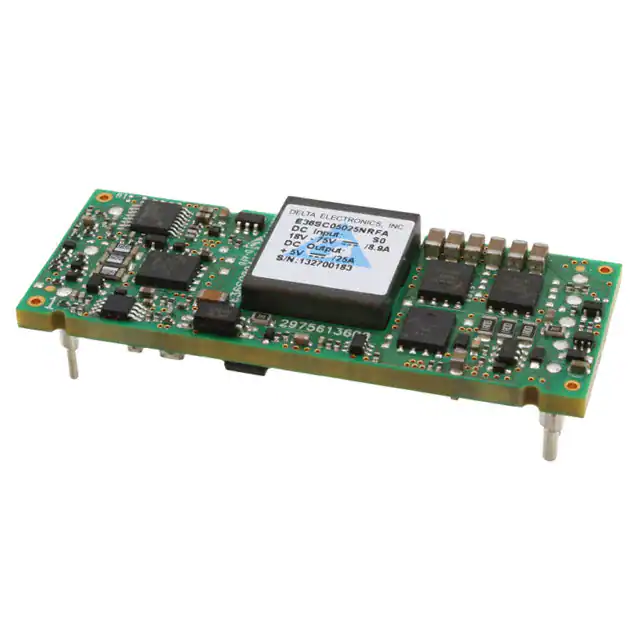

E36SC05025NRFADC DC CONVERTER 5V 125W |
160 |
|
Техническая документация |
Delphi E36SC (125W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 25A | 125 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 10.9mm) | - | Enable, Active Low | - | - |
|
EC7AW-24S33DC-DC CONVERTER |
104 |
|
Техническая документация |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 81.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 62368-1 |
