DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4691IV#PBFDC DC CONVERTER 1.2V 1.8V |
1,422 |
|
Техническая документация |
LTM®, uModule® | 24-LFLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 2.25V | 3.6V | 0.5 ~ 2.5V | 0.5 ~ 2.5V | - | - | 2A, 2A | - | - | ITE (Commercial) | - | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 0.12" L x 0.16" W x 0.05" H (3.0mm x 4.0mm x 1.3mm) | 24-LGA (3x4) | - | - | - |
|

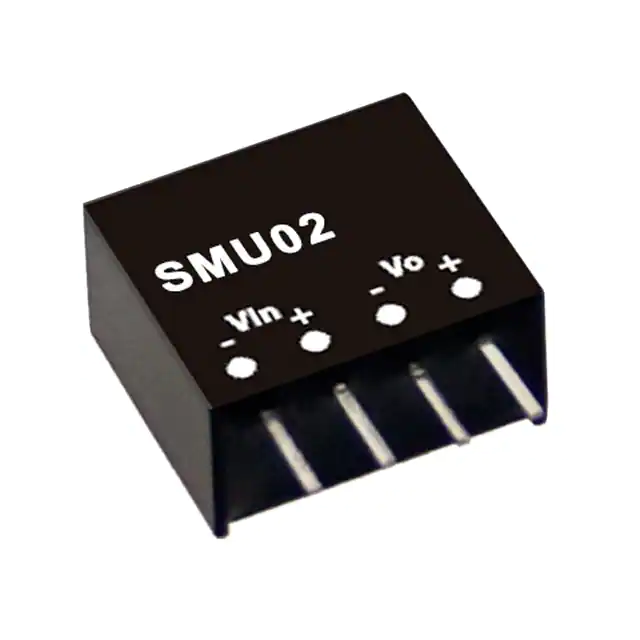

SMU02M-12DC DC CONVERTER 12V 2W |
511 |
|
Техническая документация |
SMU02 (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.1mm) | - | - | - | - |
|
IA0509SDC DC CONVERTER +/-9V 1W |
1,329 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA2415SDC DC CONVERTER +/-15V 1W |
431 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA1224SDC DC CONVERTER +/-24V 1W |
252 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 21mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA1205SDC DC CONVERTER +/-5V 1W |
181 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
RPM3.3-2.0DC DC CONVERTER 3.3V |
412 |
|
Техническая документация |
INNOLINE RPM-2.0 | 25-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 3.3V | - | - | - | 2A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 98% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
PCSA1-S24-S12-SDC DC CONVERTER 12V 1W |
129 |
|
Техническая документация |
PSCA1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
SPU03L-05DC DC CONVERTER 5V 3W |
2,080 |
|
Техническая документация |
SPU03 (3W) | 7-SIP Module, 4 Leads | - | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|
NXJ2S1212MC-R7DC DC CONVERTER 12V 2W |
180 |
|
Техническая документация |
NXJ2 (2W) | 12-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.63" L x 0.57" W x 0.17" H (16.0mm x 14.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ2S2415MC-R7DC DC CONVERTER 15V 2W |
114 |
|
Техническая документация |
NXJ2 (2W) | 12-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78.5% | - | - | Surface Mount | 0.63" L x 0.57" W x 0.17" H (16.0mm x 14.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ2S2405MC-R7DC DC CONVERTER 5V 2W |
112 |
|
Техническая документация |
NXJ2 (2W) | 12-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76.5% | - | - | Surface Mount | 0.63" L x 0.57" W x 0.17" H (16.0mm x 14.5mm x 4.4mm) | - | - | - | - |
|
2S4E_4812S1UISOLATED MODULE DC DC CONVERTERS |
236 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 43.2V | 52.8V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
TME 1209SDC DC CONVERTER 9V 1W |
4,715 |
|
Техническая документация |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 110mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TME 2412SDC DC CONVERTER 12V 1W |
716 |
|
Техническая документация |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|

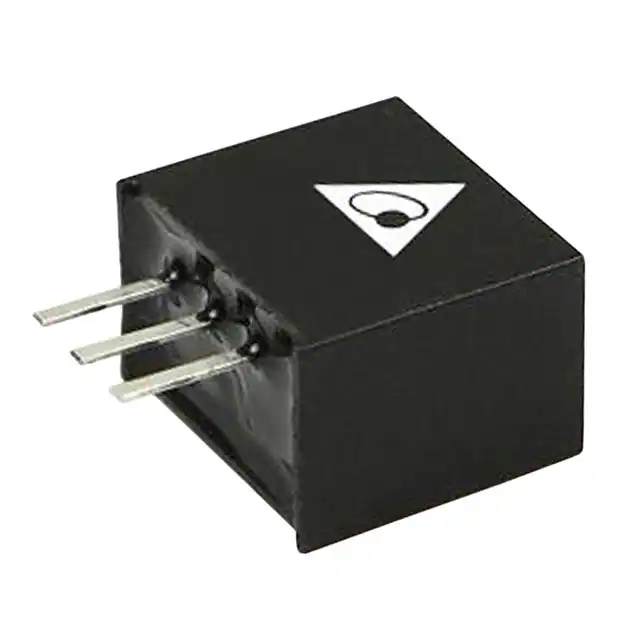

PM05S033ADC DC CONVERTER 3.3V 2W |
1,810 |
|
Техническая документация |
PM05S | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 32V | 3.3V | - | - | - | 500mA | 2 W | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 90°C | 91% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
TPSM843820SITR4-V TO 18-V INPUT, ADVANCED CURR |
2,639 |
|
Техническая документация |
SWIFT™ | 15-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 18V | 0.5 ~ 1.8V | - | - | - | 8A | 14 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount | 0.14" L x 0.14" W x 0.06" H (3.5mm x 3.5mm x 1.6mm) | 15-uSIP (3.5x3.5) | Enable, Active Low | - | - |
|
|
R24C2T25-R2W DC/DC-CONVERTER 'ECONOLINE' S |
7,271 |
|
Техническая документация |
ECONOLINE RxxC2Txx (2W) | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 2 | 21V | 27V | 2.5 ~ 22.5V | -2.5 ~ -22.5V | - | - | 12mA, 100mA | 2.52 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C (With Derating) | 55% | - | - | Surface Mount | 0.51" L x 0.30" W x 0.14" H (12.8mm x 7.5mm x 3.6mm) | 36-SSOP | - | - | 62368-1 |
|
PCN1-S12-S5-M-TRDC DC CONVERTER 5V 1W |
460 |
|
Техническая документация |
PCN1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 79% | - | - | Surface Mount | 0.54" L x 0.39" W x 0.29" H (13.7mm x 9.8mm x 7.4mm) | - | - | EN | 55032 Class A |
|
R2SX-2424-RDC DC CONVERTER 24V 2W |
2,679 |
|
Техническая документация |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 84mA | 2 W | 1 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 86% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
