DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IA0515SDC DC CONVERTER +/-15V 1W |
368 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
IA0512SDC DC CONVERTER +/-12V 1W |
209 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|

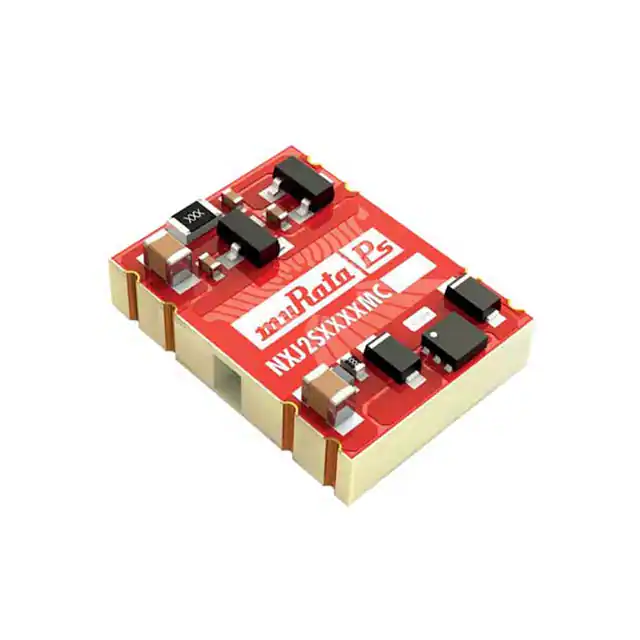

NXJ2S0505MC-R7DC DC CONVERTER 5V 2W |
409 |
|
Техническая документация |
NXJ2 (2W) | 12-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72.50% | - | - | Surface Mount | 0.61" L x 0.45" W x 0.17" H (15.5mm x 11.4mm x 4.4mm) | - | - | - | - |
|
MPM3509BGQVE-AEC1-Z36V, 0.6A MODULE, SYNCHRONOUS, S |
3,605 |
|
Техническая документация |
- | 17-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 34.2V | - | - | - | 600mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | - | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 17-QFN (3x5) | - | - | - |
|
|
TPSM83100SIUR1.5-A HIGH EFFICIENCY BUCK-BOOST |
1,240 |
|
Техническая документация |
TPSM | 8-TFDFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.6V | 5.5V | 1.2 ~ 5.5V | - | - | - | 1.5A | 8.25 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.10" L x 0.08" W x 0.05" H (2.6mm x 2.1mm x 1.3mm) | 8-µSIP (2.6x2) | - | - | - |
|
MPM3510AGQV-PDC DC CONVERTER 0.81-32V |
7,218 |
|
Техническая документация |
- | 19-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.81 ~ 32V | - | - | - | 1.2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 19-QFN (3x5) | - | - | - |
.jpg)
|

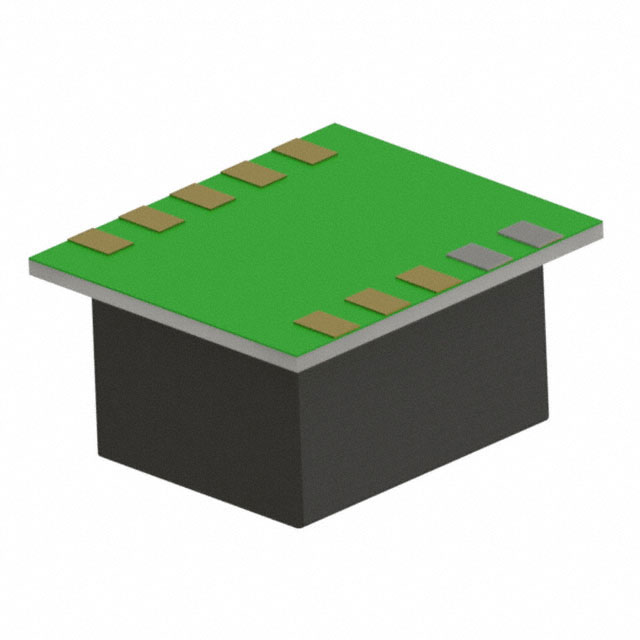

MAXM17900AMB+TDC DC CONVERTER 0.9-5.5V |
3,836 |
|
Техническая документация |
- | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 24V | 0.9 ~ 5.5V | - | - | - | 100mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) | 10-eMGA (3x2.6) | - | - | - |
|
LMZM23601V5SILTDC DC CONVERTER 5V |
2,424 |
|
Техническая документация |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 87% | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23601V3SILTDC DC CONVERTER 3.3V |
2,173 |
|
Техническая документация |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | 81% | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|
|
LMZM23601SILTDC DC CONVERTER 1.2-15V |
1,309 |
|
Техническая документация |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1.2 ~ 15V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) | 10-uSIP (3.8x3) | - | - | - |
|

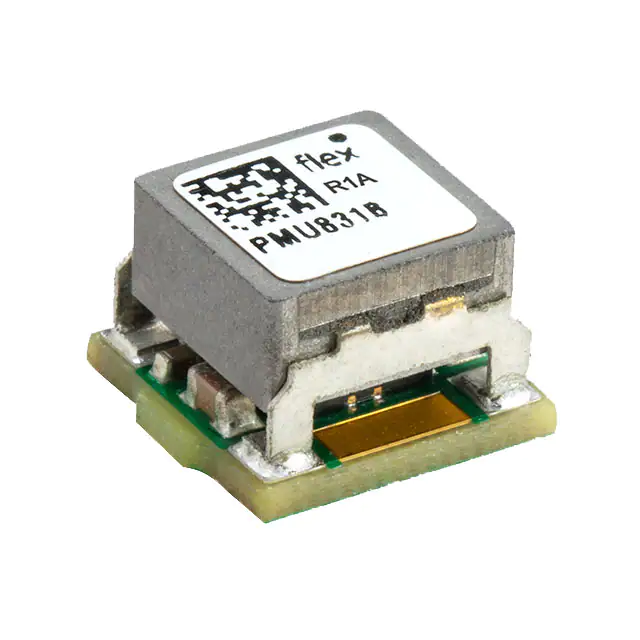

PMU8318DC DC CONVERTER 0.6-5.5V 33W |
1,732 |
|
Техническая документация |
PMU8000 | 24-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 17V | 0.6 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 92.8% | - | - | Surface Mount | 0.30" L x 0.30" W x 0.21" H (7.5mm x 7.5mm x 5.4mm) | - | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|

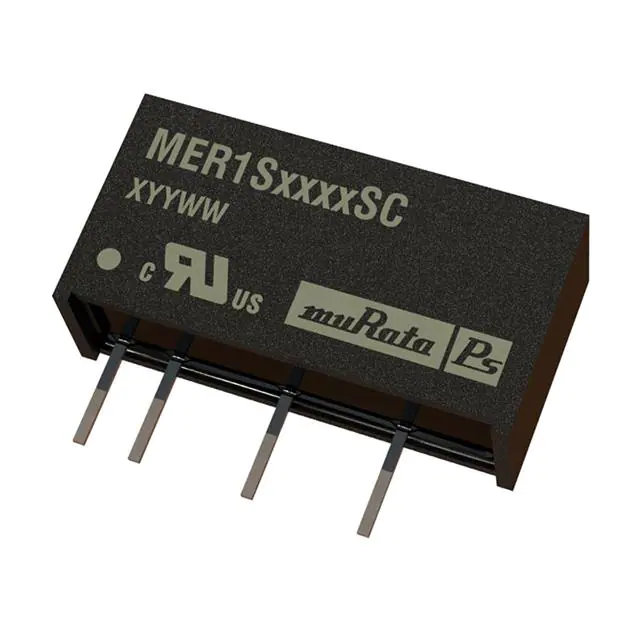

MER1S2405SCDC DC CONVERTER 5V 1W |
288 |
|
Техническая документация |
MER1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 22.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|

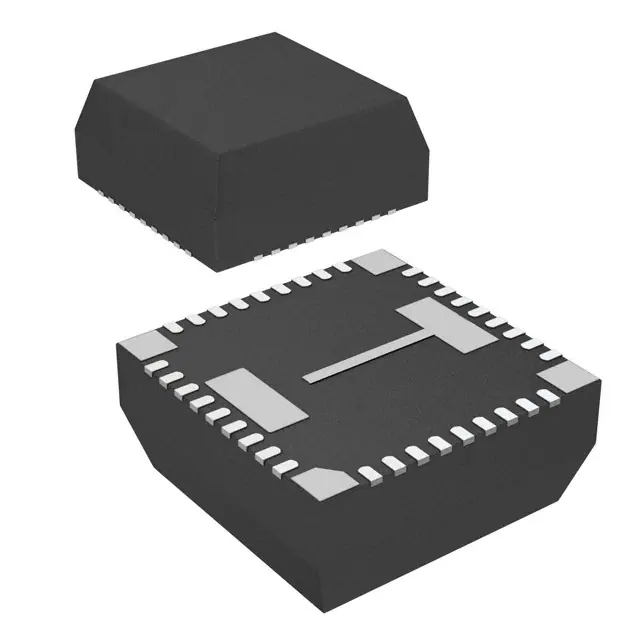

LMZ31704RVQRDC DC CONVERTER 0.6-5.5V 22W |
671 |
|
Техническая документация |
SIMPLE SWITCHER® | 42-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 17V | 0.6 ~ 5.5V | - | - | - | 4A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.44" L x 0.36" W x 0.11" H (11.2mm x 9.2mm x 2.9mm) | 42-B3QFN (10x10) | Enable, Active High | - | - |
|

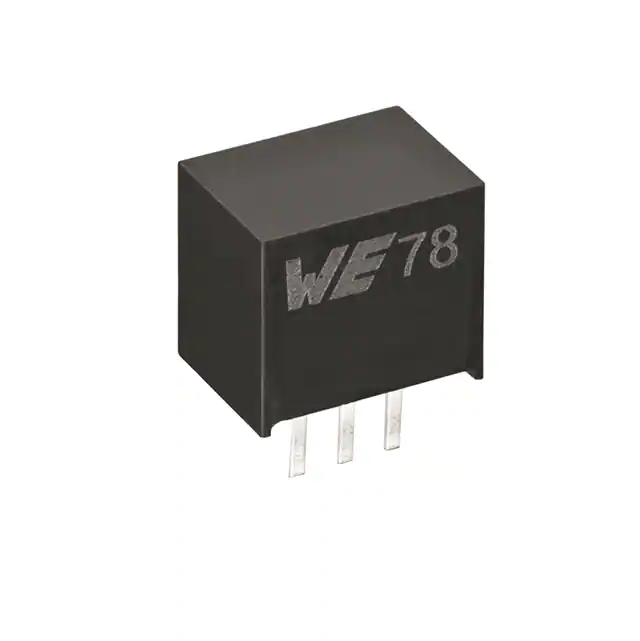

173010535DC DC CONVERTER 5V 5W |
500 |
|
Техническая документация |
MagI³C (1W) | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 36V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | - | - | - | - |
|
TES 1-0511DC DC CONVERTER 5V 1W |
875 |
|
Техническая документация |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
LMZ31503RUQTDC DC CONVERTER 0.8-5.5V 17W |
5,992 |
|
Техническая документация |
SIMPLE SWITCHER® | 47-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14.5V | 0.8 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 93.3% | - | - | Surface Mount | 0.60" L x 0.36" W x 0.11" H (15.2mm x 9.2mm x 2.9mm) | 47-B1QFN (15x9) | Enable, Active High | - | - |
|
|

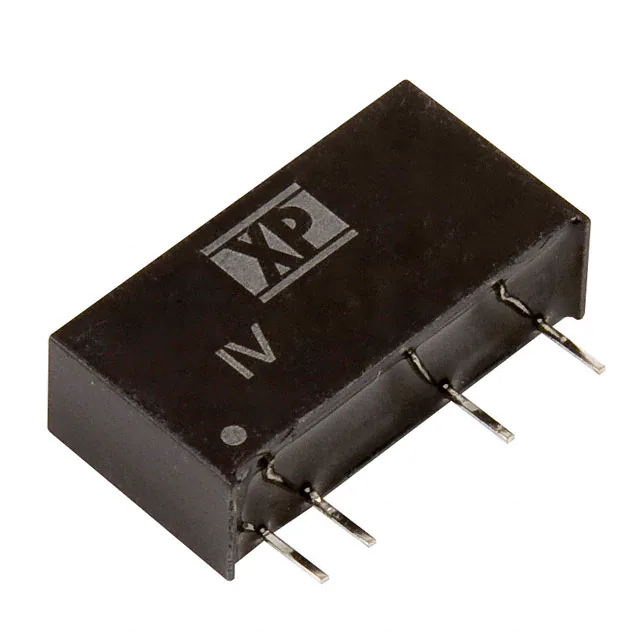

IV1205SADC DC CONVERTER 5V 1W |
609 |
|
Техническая документация |
IV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | 62368-1 |
|
IV0505SADC DC CONVERTER 5V 1W |
570 |
|
Техническая документация |
IV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | 62368-1 |
|
|
TLVM13640RDLRDC DC CONVERTER 1 ~ 6V |
483 |
|
Техническая документация |
TVLM13640 | 20-PowerBFQFN Module | Bulk | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 6V | - | - | - | 4A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 95.6% | - | - | Surface Mount | 0.22" L x 0.20" W x 0.16" H (5.5mm x 5.0mm x 4.1mm) | 20-B3QFN (5x5.5) | Enable, Active High | - | - |
|
|
MAXM17903AMB+TDC DC CONVERTER 0.9-5V |
4,473 |
|
Техническая документация |
Himalaya | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 24V | 0.9 ~ 5V | - | - | - | 300mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) | 10-eMGA (3x2.6) | - | - | - |
