DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPSM365R3RDNR3-V TO 65-V INPUT, 1-V TO 13-V O |
971 |
|
Техническая документация |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 65V | 1 ~ 13V | - | - | - | 300mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 88.4% | - | - | Surface Mount, Wettable Flank | 0.18" L x 0.14" W x 0.08" H (4.5mm x 3.5mm x 2.1mm) | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
|
|
XCL206F083CR-G600MA INDUCTOR BUILT-IN PWM STEP |
3,035 |
|
Техническая документация |
XCL206 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 0.8V | - | - | - | 600mA | 480 mW | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|

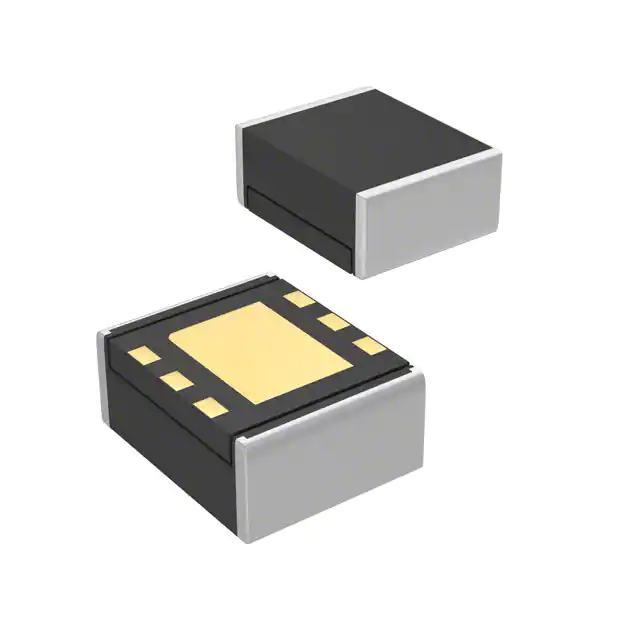

XCL202B331ER-GDC DC CONVERTER 3.3V |
10,148 |
|
Техническая документация |
XCL202 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2V | 6V | 3.3V | - | - | - | 400mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|
XCL102D503CR-GDC DC CONVERTER 4.9-5.1V 2.5W |
7,453 |
|
Техническая документация |
XCL102 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 0.9V | 6V | 4.9 ~ 5.1V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|
|
XCL103D503CR-GDC DC CONVERTER 4.9-5.1V 2.5W |
3,878 |
|
Техническая документация |
XCL103 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 0.9V | 6V | 4.9 ~ 5.1V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|
TPSM82813SSILR2.75-V TO 6-V, 3-A STEP-DOWN MOD |
948 |
|
Техническая документация |
- | 14-DFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.75V | 6V | 0.6 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.16" L x 0.12" W x 0.09" H (4.0mm x 3.0mm x 2.4mm) | 14-uSIP (4x3) | - | - | - |
|
MPM3610GQV-ZDC DC CONVERTER 4.5-21V |
5,599 |
|
Техническая документация |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 21V | 4.5 ~ 21V | - | - | - | 1.2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
MPM3805AGQB-AEC1-ZDC DC CONVERTER 0.6-6V |
1,430 |
|
Техническая документация |
- | 12-PowerVFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.6V | 6V | 0.6 ~ 6V | - | - | - | 600mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | - | Automotive | AEC-Q100 | Surface Mount | 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm) | 12-QFN (3x2.5) | - | - | - |
|
DPU01N-15DC DC CONVERTER +/-15V 1W |
1,553 |
|
Техническая документация |
DPU01 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | 6-SIP | - | - | - |
|
|
DPU01L-15DC DC CONVERTER +/-15V 1W |
476 |
|
Техническая документация |
DPU01 (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | 6-SIP | - | - | - |
|
SPU01N-05DC DC CONVERTER 5V 1W |
247 |
|
Техническая документация |
SPU01 (1W) | 6-SIP Module, 5 Leads | - | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
|
SPU01N-12DC DC CONVERTER 12V 1W |
140 |
|
Техническая документация |
SPU01 (1W) | 6-SIP Module, 5 Leads | - | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) | - | - | - | - |
|
LMZ30602RKGRDC DC CONVERTER 0.8-3.6V |
690 |
|
Техническая документация |
SIMPLE SWITCHER® | 39-BQFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 6V | 0.8 ~ 3.6V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.44" L x 0.36" W x 0.11" H (11.2mm x 9.2mm x 2.9mm) | - | Enable, Active High | - | - |
|
R1SE-0505DC DC CONVERTER 5V 1W |
589 |
|
Техническая документация |
ECONOLINE R1SE (E-Series) (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.26" H (12.8mm x 10.7mm x 6.7mm) | - | - | - | - |
|
TR05S12DC DC CONVERTER 12V 6W |
1,167 |
|
Техническая документация |
TR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 14V | 28V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
TR05S05DC DC CONVERTER 5V 3W |
640 |
|
Техническая документация |
TR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 7V | 28V | 5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 92% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | - | - |
|
R-78E15-0.5DC DC CONVERTER 15V 8W |
122 |
|
Техническая документация |
INNOLINE R-78E | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 18V | 28V | 15V | - | - | - | 500mA | 8 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | - | - | - |
|
ROE-1505SDC DC CONVERTER 5V 1W |
453 |
|
Техническая документация |
ECONOLINE ROE (E-Series) (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TPSM82902SISR3-V TO 17-V, 2-A HIGH EFFICIENCY |
986 |
|
Техническая документация |
MicroSip™ | 10-LDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.4 ~ 5.5V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.11" W x 0.06" H (3.0mm x 2.8mm x 1.5mm) | 10-uSIP (3x2.8) | Enable, Active Low | - | - |
|
MUN12AD01-SGDC DC CONVERTER 0.8-6V |
23,332 |
|
Техническая документация |
- | 6-LDFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 16V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.15" L x 0.10" W x 0.06" H (3.9mm x 2.6mm x 1.6mm) | 6-DFN (3.9x2.6) | - | - | - |
