Мониторы преобразователей тока/напряжения
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип | Входной диапазон | Выход | Изоляция | Время отклика | Точность | Напряжение - Питание | Тип крепления | Тип вывода | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISOBLOCK V-4C (5V 5V)VOLTAGE SEN W/GALVANIC ISOLATION |
3,146 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±5V | ±5V | 1500V (Working) | 2.8µs | ±0.2% | 12 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | CE |
|
|
ISOBLOCK V-4C (50MV 5V)VOLTAGE SEN W/GALVANIC ISOLATION |
4,017 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±50mV | ±5V | 1500V (Working) | 2.8µs | ±0.2% | 12 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | CE |
|
|
ISOBLOCK V-4C (20V 5V)VOLTAGE SEN W/GALVANIC ISOLATION |
1,646 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±20V | ±5V | 1500V (Working) | 2.8µs | ±0.2% | 12 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | CE |
|
P51000K11-M2M/11CURRENT TRANSDUCER 2000 VDC |
4,575 |
|
Техническая документация |
ProLine | Box | Active | Voltage Transducer | ±300mV (Configurable) | ±20mA, ±10V (Configurable) | 2000VAC/DC (Working), 10000VAC (Test) | 45µs | ±0.1% | 24 ~ 230VAC/DC | DIN Rail | Screw Terminal | -40°C ~ 85°C | UL |
|
|
P51000K11-M1M/11CURRENT TRANSDUCER 2000 VDC |
4,095 |
|
Техническая документация |
ProLine | Box | Active | Voltage Transducer | ±100mV (Configurable) | ±20mA, ±10V (Configurable) | 2000VAC/DC (Working), 10000VAC (Test) | 45µs | ±0.1% | 24 ~ 230VAC/DC | DIN Rail | Screw Terminal | -40°C ~ 85°C | UL |
|
ISOBLOCK V-4C (50V 5V)TRANSDUCER VOLTAGE 9-28VDC |
3,178 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±50V | ±5V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|

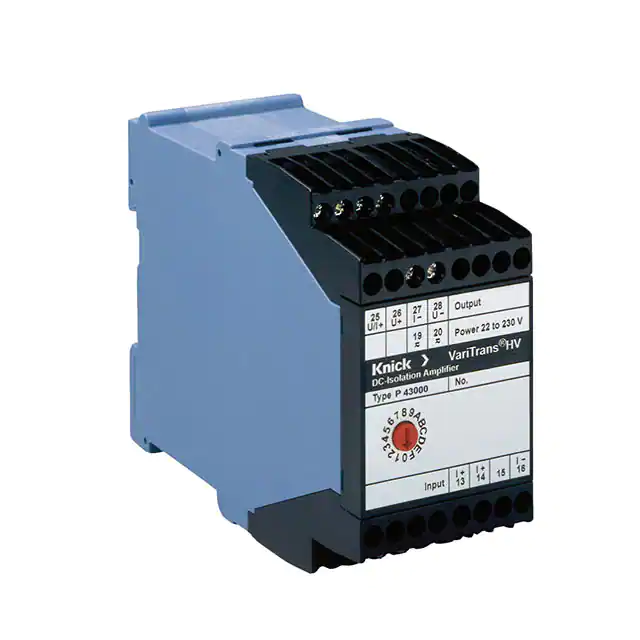

P43000D2CURRENT TRANSDUCER 2200 VDC |
1,750 |
|
Техническая документация |
VariTrans | Box | Active | Voltage Transducer | ±5A (Configurable) | ±20mA, ±10V (Configurable) | 2200VAC/DC (Working), 10000VAC (Test) | 110µs | ±0.3% | 20 ~ 253VAC/DC | DIN Rail | Screw Terminal | -10°C ~ 70°C | - |
|
|
P51100K11-M1M/11CURRENT TRANSDUCER 4800 VDC |
3,464 |
|
Техническая документация |
ProLine | Box | Active | Voltage Transducer | ±100mV (Configurable) | ±20mA, ±10V (Configurable) | 4800VAC/DC (Working), 16000VAC (Test) | 45µs | ±0.1% | 24 ~ 230VAC/DC | DIN Rail | Screw Terminal | -40°C ~ 85°C | UL |
|
|
P51100K11-M2M/11CURRENT TRANSDUCER 4800 VDC |
3,072 |
|
Техническая документация |
ProLine | Box | Active | Voltage Transducer | ±300mV (Configurable) | ±20mA, ±10V (Configurable) | 4800VAC/DC (Working), 16000VAC (Test) | 45µs | ±0.1% | 24 ~ 230VAC/DC | DIN Rail | Screw Terminal | -40°C ~ 85°C | UL |
|

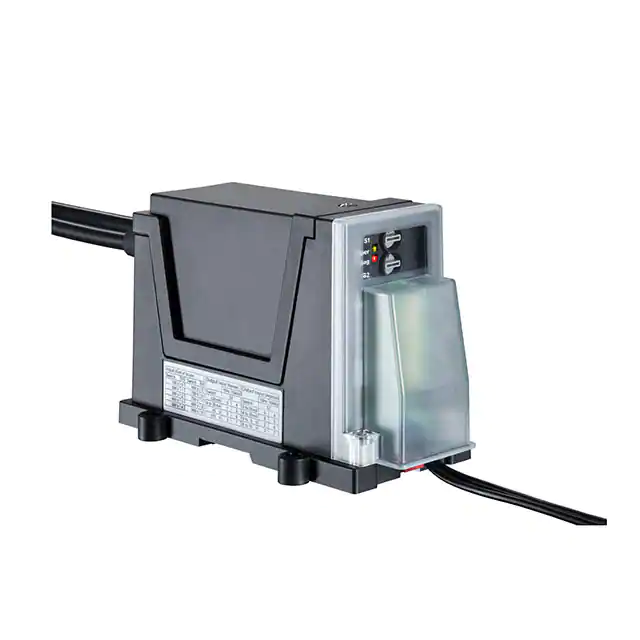

P52000K11-M5M/11VOLTAGE TRANSDUCER 2000 VDC |
3,966 |
|
Техническая документация |
ProLine | Box | Active | Voltage Transducer | ±900V (Configurable) | ±20mA, ±10V (Configurable) | 2000VAC/DC (Working), 10000VAC (Test) | 60µs | ±0.1% | 24 ~ 230VAC/DC | DIN Rail | Screw Terminal | -40°C ~ 85°C | UL |
|
|

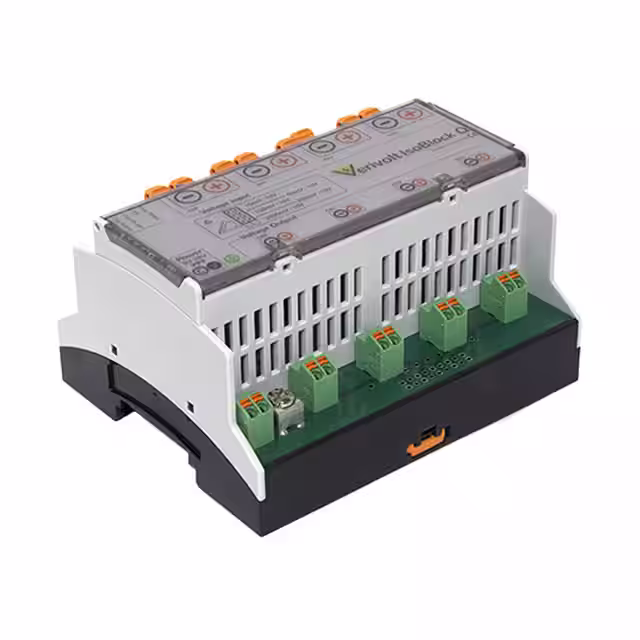

ISOBLOCK Q-4CISOLATION AMPLIFIER |
1,956 |
|
Техническая документация |
IsoBlock Q | Box | Active | Voltage Transducer | - | ±10V | 2500V (Working) | 5µs | ±0.2% | 2 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | CE |
|
|
ISOBLOCK V-4C (500VAC 7VAC0.1%)TRANSDUCER VOLTAGE 9-28VDC |
3,244 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | 0 ~ 500VAC | 0 ~ 7VAC | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-4C (250VAC 7VAC0.1%)TRANSDUCER VOLTAGE 9-28VDC |
1,354 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | 0 ~ 250VAC | 0 ~ 7VAC | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
ISOBLOCK Q-4C (HR)TRANSDUCER VOLTAGE 9-28VDC |
4,036 |
|
Техническая документация |
IsoBlock Q | Box | Active | Voltage Transducer | - | ±10V | 2500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK Q-4C (LR)TRANSDUCER VOLTAGE 9-28VDC |
3,120 |
|
Техническая документация |
IsoBlock Q | Box | Active | Voltage Transducer | - | ±10V | 2500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
P43100D2-0005CURRENT TRANSDUCER 3600 VDC |
1,618 |
|
Техническая документация |
VariTrans | Box | Active | Voltage Transducer | ±5A | ±20mA | 3600VAC/DC (Working), 15000VAC (Test) | 110µs | ±0.3% | 20 ~ 253VAC/DC | DIN Rail | Screw Terminal | -10°C ~ 70°C | - |
|
|
ISOBLOCK V-4C (1500V 10V0.1%)TRANSDUCER VOLTAGE 9-28VDC |
2,493 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±1500V | ±10V | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-4C (1000V 10V0.1%)TRANSDUCER VOLTAGE 9-28VDC |
2,106 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±1000V | ±10V | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-4C (750V 10V0.1%)TRANSDUCER VOLTAGE 9-28VDC |
2,050 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±750V | ±10V | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-4C (500V 10V0.1%)TRANSDUCER VOLTAGE 9-28VDC |
2,931 |
|
Техническая документация |
IsoBlock V | Box | Active | Voltage Transducer | ±500V | ±10V | 1500V (Working) | 2.8µs | ±0.1% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
