Светодиодные излучатели - инфракрасные, УФ, видимые
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Ток - постоянный ток вперед (If) (макс.) | Сила излучения (Ie) Мин. @ If | Длина волны | Напряжение - прямое (Vf) (тип.) | Угол обзора | Ориентация | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MTPS3074BW750NM TO-46 METAL CAN FLAT/BALL |
3,395 |
|
Техническая документация |
- | TO-206AA, TO-18-3 Metal Can | Bag | Obsolete | Infrared (IR) | 80mA | - | 750nm | 1.9V | 16° | Top View | -20°C ~ 85°C | - | - | Through Hole |
|
|
MTMS1300N24TO-18 WITH NARROW DOMED LENS - 1 |
4,286 |
|
Техническая документация |
- | TO-46-4 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 1300nm | 0.9V | - | Top View | -20°C ~ 85°C | - | - | Through Hole |
|

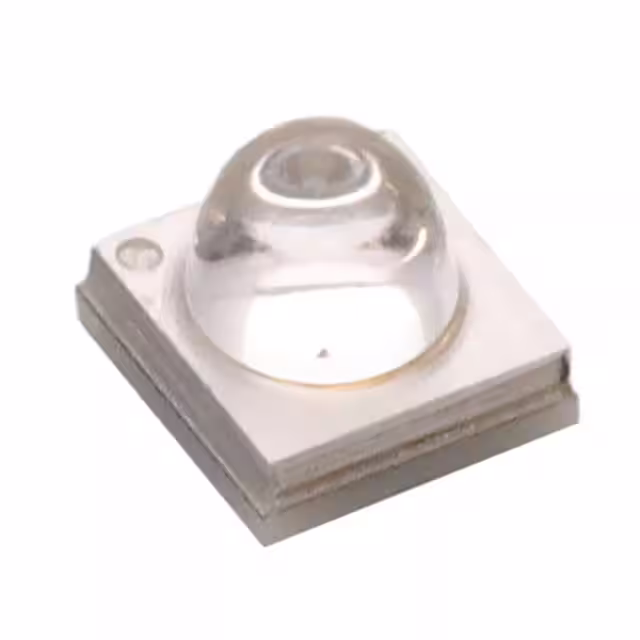

IN-C39ATKU1TOP VIEW / 3939 /3.9 X 3.9 X 3.2 |
2,245 |
|
Техническая документация |
IN-C39(X)TK UVC | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 150mA | - | 265nm ~ 285nm | 7V | 30° | Top View | - | - | - | Surface Mount |
|
|
IN-C45PPATNU1TOP MOUNT / 4545 / 4.4 X 4.4 X 3 |
1,366 |
|
Техническая документация |
- | 2-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | Ultraviolet (UV) | 700mA | - | 275nm (270nm ~ 280nm) | 6V | 30° | Top View | -10°C ~ 60°C | - | - | Surface Mount |
|
|
IN-C45PPBTNU1TOP MOUNT / 4545 / 4.4 X 4.4 X 3 |
3,098 |
|
Техническая документация |
- | 2-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | Ultraviolet (UV) | 700mA | - | 275nm (270nm ~ 280nm) | 6V | 60° | Top View | -10°C ~ 60°C | - | - | Surface Mount |
|
PDI-E813EMITTER IR 880NM 180MA TO-46 |
2,390 |
|
Техническая документация |
- | TO-46-2 Lens Top Metal Can | Tray | Active | Infrared (IR) | 180mA | - | 880nm | 1.5V | - | Top View | -55°C ~ 125°C (TA) | - | - | Through Hole |
|
|
HIS180SMD-0THERMAL INFRARED EMITTER IN STAN |
1,659 |
|
Техническая документация |
HISsmd | 6-SMD, No Lead | Box | Active | Infrared (IR) | 125mA | - | 11µm (2µm ~ 20µm) | 2.6V (Max) | - | Top View | - | - | - | Surface Mount |
|
OP236TXVEMITTER IR 890NM 100MA TO-46 |
4,124 |
|
Техническая документация |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 890nm | 1.55V | 18° | Top View | -55°C ~ 125°C (TA) | - | - | Through Hole |
|
|
XFM-5050-UV-C130-FD270-00XFM-5050-UV-C130-FD270-00 |
2,642 |
|
Техническая документация |
UVC LED | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 800mA | - | 275nm (270nm ~ 280nm) | 20.2V | 150° | Top View | 95°C (TJ) | - | - | Surface Mount |
|
|
CL7002C3EMITTER UV 275NM 150MA SMD |
3,840 |
|
Техническая документация |
- | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Ultraviolet (UV) | 150mA | - | 275nm | 5.2V | 120° | Top View | 100°C (TJ) | - | - | Surface Mount |
|
|
XFM-5050-UV-C130-FC270-00EMITTER UV 270NM MODULE |
2,275 |
|
Техническая документация |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 800mA | - | 275nm | 20.2V | 130° | Top View | 95°C | - | - | Surface Mount |
|

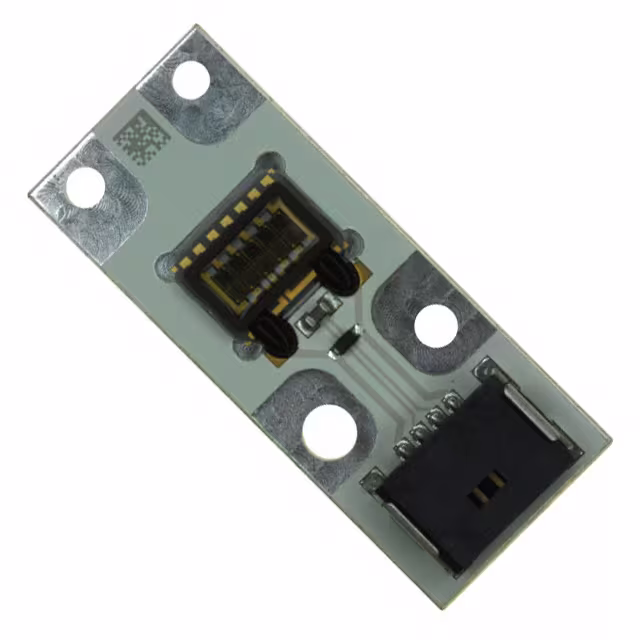

SFH 4730EMITTER IR 850NM 1A MODULE |
2,855 |
|
Техническая документация |
- | Module | Tray | Obsolete | Infrared (IR) | 1A | 630mW/sr @ 1A | 850nm | 18V | 120° | Top View | -40°C ~ 125°C (TA) | - | - | Chassis Mount |
|
QBHP5050E-UV385BKLED UV 385NM 2A 2SMD |
2,452 |
|
Техническая документация |
QBHP5050E-UVxxxBK | 2-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | Ultraviolet (UV) | 2A | - | 385nm | 3.7V | 125° | Top View | -40°C ~ 80°C (TA) | - | - | Surface Mount |
|

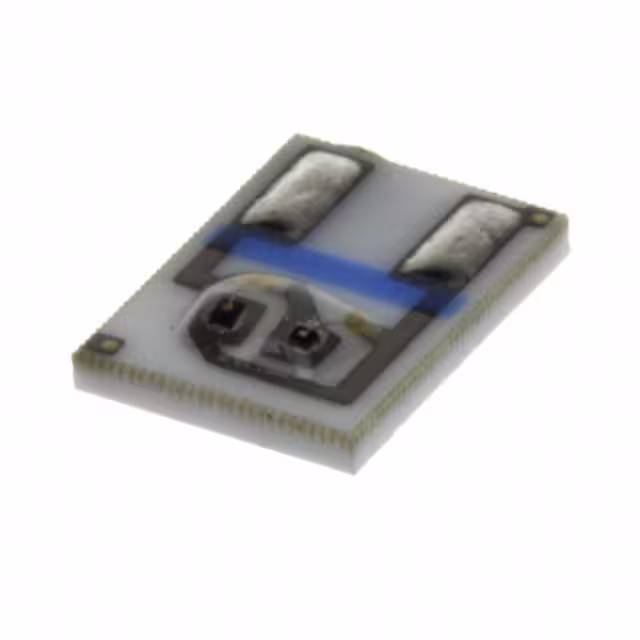

PDI-E838EMITTER IR VIS MULTI-M 30MA SMD |
2,693 |
|
Техническая документация |
- | 2-SMD, No Lead | Bulk | Active | Infrared (IR), Visible | 30mA | - | 880nm, 660nm | 1.2V, 1.8V | - | Top View | -40°C ~ 80°C (TA) | - | - | Surface Mount |
|

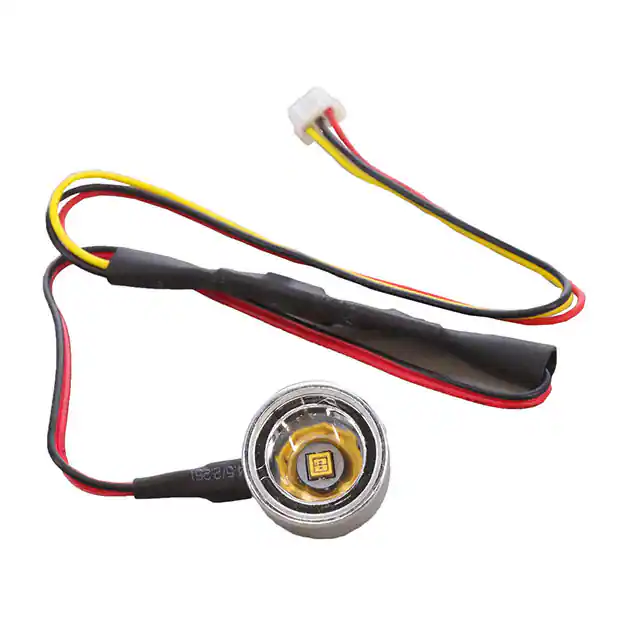

SADC-L117-DNN-U1930UVC MODULE AIR STERILIZATION/ E |
1,112 |
|
Техническая документация |
SADC | Module, Wire Leads | Obsolete | Ultraviolet (UV) | - | 18mW | 265nm ~ 280nm | - | - | Top View | 0°C ~ 35°C | - | - | Chassis Mount | |
|
PDI-E837EMITTER IR VIS MULTI-M 30MA SMD |
4,482 |
|
Техническая документация |
- | Nonstandard SMD | Bulk | Active | Infrared (IR), Visible | 30mA | - | 880nm, 660nm | 1.3V, 1.8V | - | Top View | -40°C ~ 80°C (TA) | - | - | Surface Mount |
|
|
XFM-5050-UV-D130-GA270-00XFM-5050-UV-D130-GA270-00 |
2,075 |
|
Техническая документация |
UVC LED | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 3.2A | - | 275nm (270nm ~ 280nm) | 6.75V | 150° | Top View | 95°C (TJ) | - | - | Surface Mount |
|
|
HIS20SMD-ATHERMAL INFRARED EMITTER IN STAN |
3,928 |
|
Техническая документация |
HISsmd | 6-SMD, No Lead | Box | Active | Infrared (IR) | 140mA | - | 4µm (2µm ~ 6µm) | 1.25V (Max) | - | Top View | - | - | - | Surface Mount |
|
|
HIS100SMD-ATHERMAL INFRARED EMITTER IN STAN |
4,416 |
|
Техническая документация |
HISsmd | 6-SMD, No Lead | Box | Active | Infrared (IR) | 170mA | - | 4µm (2µm ~ 6µm) | 1.7V (Max) | - | Top View | - | - | - | Surface Mount |
|
QBHP6868E-UV395KLED UV 395NM 2A SMD |
1,296 |
|
Техническая документация |
QBHP6868E-UVxxxK | 2-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | Ultraviolet (UV) | 2A | - | 395nm | 3.8V | 60° | Top View | -40°C ~ 80°C (TA) | - | - | Surface Mount |
