Промышленные блоки питания на DIN-рейку
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20803003011AC/DC DIN RAIL SUPPLY 24V 95W |
1,082 |
|
Техническая документация |
- | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4A | 95W | 3 kV | ITE (Commercial) | - | -25°C ~ 75°C (With Derating) | IP65, Universal Input | 4.72" L x 3.05" W x 3.43" H (120.0mm x 77.5mm x 87.0mm) | cCSAus, TUV | - |
|

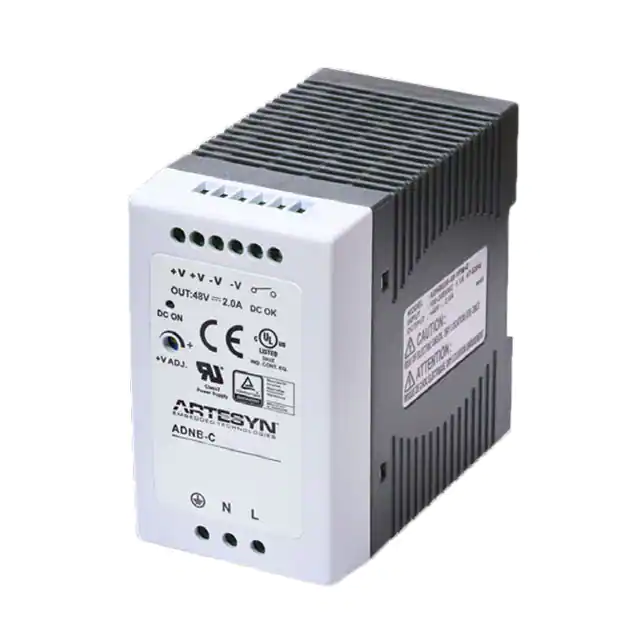

ADNB017-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 40W |
4,642 |
|
Техническая документация |
ADNB-C (40.8W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.7A | 40W | 4.242 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB027-15-1PM-CAC/DC DIN RAIL SUPPLY 15V 40W |
2,964 |
|
Техническая документация |
ADNB-C (40.8W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 2.7A | 40W | 4.242 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB034-12-1PM-CAC/DC DIN RAIL SUPPLY 12V 40W |
3,896 |
|
Техническая документация |
ADNB-C (40.8W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3.4A | 40W | 4.242 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB025-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 60W |
1,586 |
|
Техническая документация |
ADNB-C (60W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB040-15-1PM-CAC/DC DIN RAIL SUPPLY 15V 60W |
3,245 |
|
Техническая документация |
ADNB-C (60W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 4A | 60W | 4.242 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB050-12-1PM-CAC/DC DIN RAIL SUPPLY 12V 60W |
2,467 |
|
Техническая документация |
ADNB-C (60W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 4.242 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB020-48-1PM-CAC/DC DIN RAIL SUPPLY 48V 96W |
1,598 |
|
Техническая документация |
ADNB-C (96W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2A | 96W | 4.242 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB040-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 96W |
3,592 |
|
Техническая документация |
ADNB-C (96W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4A | 96W | 4.242 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
|
ADNB075-12-1PM-CAC/DC DIN RAIL SUPPLY 12V 96W |
4,168 |
|
Техническая документация |
ADNB-C (96W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7.5A | 96W | 4.242 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 2.17" W x 3.54" H (99.0mm x 55.0mm x 90.0mm) | CE, cULus, UR, TUV | - |
|
BP4660-7RDDC/DC DIN RAIL SUPPLY QUAD 24V |
1,062 |
|
Техническая документация |
Melcher P (90 ~ 192W) | Bulk | Active | DC | 4 | - | 16V | 36V | 24V | 24V | 24V | 24V | - | - | - | - | - | ITE (Commercial), Railway | 88% | -25°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.46" L x 4.37" W x 0.78" H (164.0mm x 111.0mm x 19.8mm) | cCSAus, CE, NEMKO | 60950-1 |
|
BS1501-7RB1DC/DC DIN RAIL SUPPLY 15V 98W |
3,806 |
|
Техническая документация |
MelcherS | Bulk | Active | DC | 1 | - | 14V | 70V | 15V | - | - | - | - | - | 6.5A | 98W | - | ITE (Commercial), Railway | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 1.86" H (171.9mm x 111.0mm x 47.2mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
BS2660-9RDC/DC DIN RAIL SUPPLY 2X24V 96W |
2,847 |
|
Техническая документация |
MelcherS | Bulk | Active | DC | 2 | - | 30V | 30V | 24V | 24V | - | - | - | - | 2A, 2A | 96W | - | ITE (Commercial), Railway | 82% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 1.86" H (171.9mm x 111.0mm x 47.2mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
CM2540-9DC/DC DIN RAIL SUPPLY 2X15V 51W |
1,818 |
|
Техническая документация |
MelcherM | Bulk | Active | DC | 2 | - | 28V | 140V | 15V | 15V | - | - | - | - | 1.7A, 1.7A | 51W | - | ITE (Commercial), Railway | 80% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.60" L x 4.37" W x 1.54" H (167.6mm x 111.0mm x 39.1mm) | CE, cURus, TUV | 60950-1 |
|
|
ER2320-9RB1GDC/DC DIN RAIL SUPPLY 2X12V 240W |
3,547 |
|
Техническая документация |
Melcher ER | Bulk | Active | DC | 2 | - | 77V | 150V | 12V | 12V | - | - | - | - | 10A, 10A | 240W | - | ITE (Commercial), Railway | 94% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 3.15" H (171.9mm x 111.0mm x 80.0mm) | cCSAus, CE, EAC | 60950-1 |
|
|
ES2320-9ERDC/DC DIN RAIL SUPPLY 2X12V 96W |
3,283 |
|
Техническая документация |
MelcherS | Bulk | Active | DC | 2 | - | 67V | 385V | 12V | 12V | - | - | - | - | 4A, 4A | 96W | - | ITE (Commercial), Railway | 81% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 1.86" H (171.9mm x 111.0mm x 47.2mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
ES2660-9ERDC/DC DIN RAIL SUPPLY 2X24V 96W |
4,772 |
|
Техническая документация |
MelcherS | Bulk | Active | DC | 2 | - | 67V | 385V | 24V | 24V | - | - | - | - | 2A, 2A | 96W | - | ITE (Commercial), Railway | 81% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.77" L x 4.37" W x 1.86" H (171.9mm x 111.0mm x 47.2mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
FK1501-9RDC/DC DIN RAIL SUPPLY 15V 150W |
1,013 |
|
Техническая документация |
MelcherK | Bulk | Active | DC | 1 | - | 20V | 100V | 15V | - | - | - | - | - | 10A | 150W | - | ITE (Commercial), Railway | 85% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.60" L x 4.40" W x 3.20" H (167.6mm x 111.8mm x 81.3mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
FK1601-7RTDC/DC DIN RAIL SUPPLY 24V 144W |
1,750 |
|
Техническая документация |
MelcherK | Bulk | Active | DC | 1 | - | 20V | 100V | 24V | - | - | - | - | - | 6A | 144W | - | ITE (Commercial), Railway | 86% | -25°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.60" L x 4.40" W x 3.20" H (167.6mm x 111.8mm x 81.3mm) | cCSAus, CE, NEMKO | 60950-1 |
|
|
FM1605-7RDC/DC DIN RAIL SUPPLY 24V 48W |
4,713 |
|
Техническая документация |
Melcher M (50W) | Bulk | Active | DC | 1 | - | 20V | 100V | 24V | - | - | - | - | - | 2A | 48W | - | ITE (Commercial), Railway | 82% | -25°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.60" L x 4.37" W x 1.54" H (167.6mm x 111.0mm x 39.1mm) | CE, cURus, TUV | 60950-1 |
