Фиксированные индукторы
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1054L150FIXED IND 15UH 6.7A 39.1MOHM SMD |
990 |
|
Техническая документация |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 6.7 A | 11A | Shielded | 39.1mOhm Max | - | 7.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.213" (5.40mm) |
|
HCMA1104-100-RFIXED IND 10UH 7.5A 30 MOHM SMD |
809 |
|
Техническая документация |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 7.5 A | 8.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP1270-R47MFIXED IND 470NH 41A 1.2 MOHM SMD |
605 |
|
Техническая документация |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 470 nH | ±20% | 41 A | 65A | Shielded | 1.2mOhm Max | - | 85MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
LD2-151-RFIXED IND 150UH 1.23A 640MOHM SM |
450 |
|
Техническая документация |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.23 A | 950mA | Unshielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
SRP1270-R68MFIXED IND 680NH 35A 1.6 MOHM SMD |
360 |
|
Техническая документация |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 680 nH | ±20% | 35 A | 60A | Shielded | 1.6mOhm Max | - | 65MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
MPIA4020V2-R33-RFIXED IND 330NH 10A 9 MOHM SMD |
295 |
|
Техническая документация |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 10 A | 12A | Shielded | 9mOhm Max | - | 113MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MHE06036R8M-10HIGH CURRENT LOW DCR POWER INDUC |
11,929 |
|
Техническая документация |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 5.2 A | 9.7A | Shielded | 44.5mOhm Max | - | 16.5MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06031R0M-10HIGH CURRENT LOW DCR POWER INDUC |
7,893 |
|
Техническая документация |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 17.1 A | 20.7A | Shielded | 5.95mOhm Max | - | 48MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06032R2M-10HIGH CURRENT LOW DCR POWER INDUC |
3,973 |
|
Техническая документация |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 9.9 A | 14.3A | Shielded | 13.1mOhm Max | - | 32MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06031R8M-10HIGH CURRENT LOW DCR POWER INDUC |
3,936 |
|
Техническая документация |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 12.4 A | 16.4A | Shielded | 9.5mOhm Max | - | 34MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MHE06033R3M-10HIGH CURRENT LOW DCR POWER INDUC |
2,673 |
|
Техническая документация |
MHE | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 8 A | 11A | Shielded | 19.2mOhm Max | - | 25MHz | - | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|

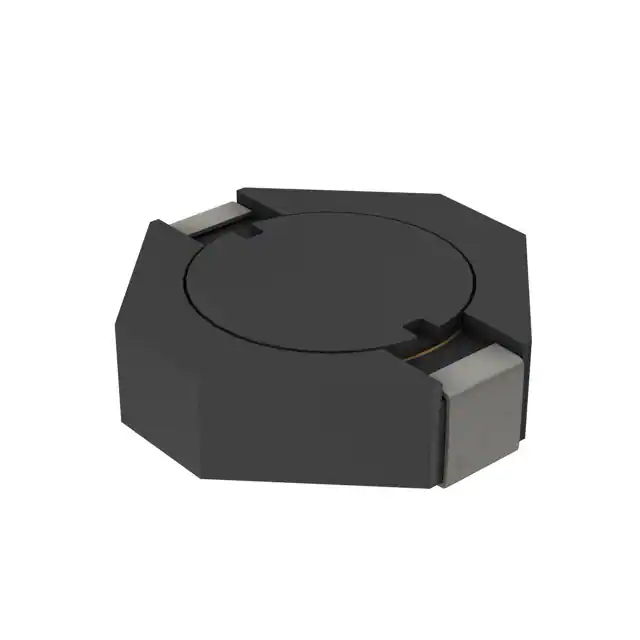

SD52-150-RFIXED IND 15UH 970MA 161.8 MOHM |
2,200 |
|
Техническая документация |
SD52 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 970 mA | 880mA | Shielded | 161.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
MPL-AL4020-R68FIXED IND 680NH 8.7A 7.5MOHM SMD |
2,125 |
|
Техническая документация |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 680 nH | - | 8.7 A | 11A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
PG0871.103NLTFIXED IND 10.5UH 4.7A 31.5 MOHM |
1,369 |
|
Техническая документация |
PG0871NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10.5 µH | ±20% | 4.7 A | 6.3A | Shielded | 31.5mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
HCM1A0805V2-4R7-RIND MP 4.7UH 8A 2 PADS SMT |
1,348 |
|
Техническая документация |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 4.7 µH | ±20% | 8 A | 8A | Shielded | 15.6mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
|

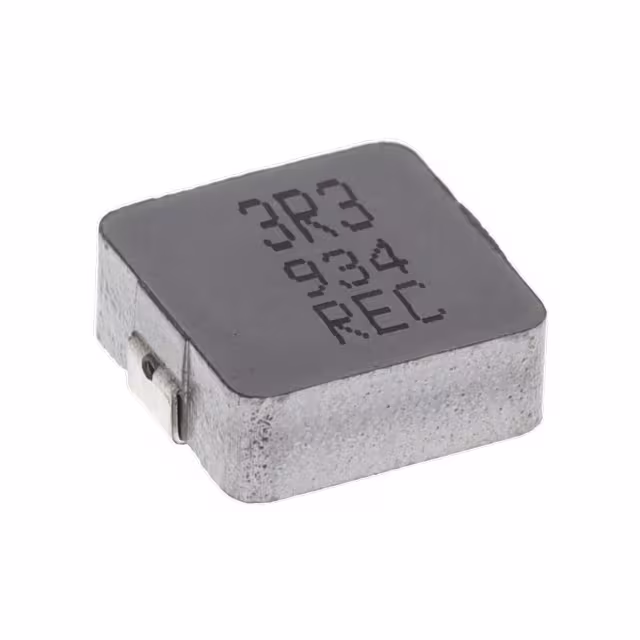

CMLS104T-3R3MSFIXED IND 3.3UH 10.7A 11.8 MOHM |
1,225 |
|
Техническая документация |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 10.7 A | 21A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
MDH10060C-100MA=P3FIXED IND 10UH 3.8A 17 MOHM SMD |
990 |
|
Техническая документация |
MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.8 A | 4.1A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
APSA00070748681M00FIXED IND 680UH 270MA 1.77OHM SM |
973 |
|
Техническая документация |
APSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 270 mA | 200mA | Shielded | 1.77Ohm Max | - | 2.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
|
MDH10060C-220MA=P3FIXED IND 22UH 2.7A 40 MOHM SMD |
940 |
|
Техническая документация |
MDH10060C | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.7 A | 2.8A | Shielded | 40mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.394" W (10.10mm x 10.00mm) | 0.248" (6.30mm) |
|
|
HCM1A0805V2-470-RIND MP 47UH 2.6A 2 PADS SMT |
456 |
|
Техническая документация |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 47 µH | ±20% | 2.5 A | 2.6A | Shielded | 137mOhm Max | - | 4.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
