Фиксированные индукторы
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3015C-5R6MIND,3X3X1.3MM,5.6UH20%,1.8A,SHD |
1,780 |
|
Техническая документация |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±20% | 1.8 A | 1.4A | Shielded | 162mOhm Max | 10 @ 100MHz | 40MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SRN3015C-1R0MIND,3X3X1.3MM,1UH20%,3A,SHD |
1,752 |
|
Техническая документация |
SRN3015C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 3 A | 3A | Shielded | 36mOhm Max | 10 @ 100MHz | 100MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VLS201610ET-R68NFIXED IND 680NH 1.65A 86MOHM SMD |
1,532 |
|
Техническая документация |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 1.65 A | 1.65A | Shielded | 86mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
VLS6045EX-6R8M-CAFIXED IND 6.8UH 3.6A 46.8MOHM SM |
1,159 |
|
Техническая документация |
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.6 A | 4.7A | Shielded | 46.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
HL021R5BTTRFIXED IND 1.5NH 340MA 128MOHM SM |
8,500 |
|
Техническая документация |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.5 nH | ±0.1nH | 340 mA | - | Unshielded | 128mOhm Max | 25 @ 450MHz | 14GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
.jpg)
|
B82422T1333K000FIXED IND 33UH 70MA 5.6 OHM SMD |
7,467 |
|
Техническая документация |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 70 mA | - | Unshielded | 5.6Ohm Max | 27 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
HL022R4BTTRFIXED IND 2.4NH 330MA 192MOHM SM |
6,619 |
|
Техническая документация |
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.4 nH | ±0.1nH | 330 mA | - | Unshielded | 192mOhm Max | 27 @ 450MHz | 9.4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|
AISC-0603F-R10K-TFIXED IND 100NH 850MA 110MOHM SM |
5,476 |
|
Техническая документация |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 850 mA | - | Unshielded | 110mOhm Max | - | 1.37GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

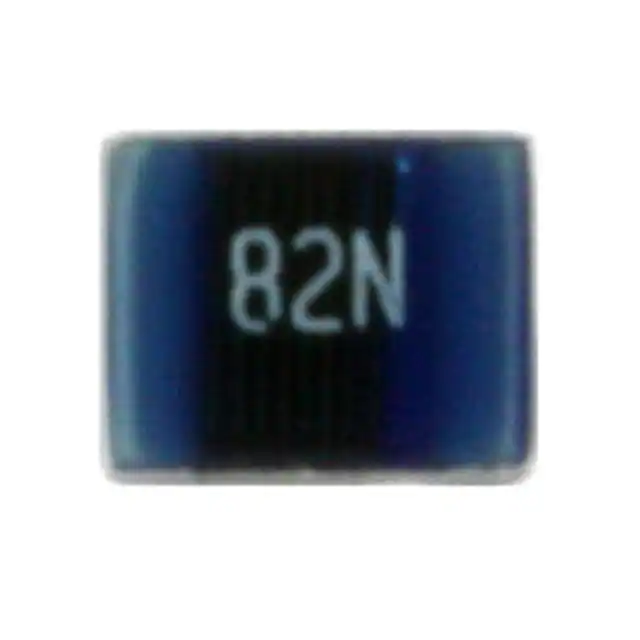

744762182AFIXED IND 82NH 1A 180 MOHM SMD |
5,272 |
|
Техническая документация |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 60 @ 350MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
B82422A3820K100FIXED IND 82NH 450MA 240MOHM SMD |
5,250 |
|
Техническая документация |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±10% | 450 mA | - | Unshielded | 240mOhm Max | 27 @ 50MHz | 1.05GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
SDCHA1V5020-2R2-RIND SMD POWER 2.2UH 3.3A |
4,887 |
|
Техническая документация |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 3.3 A | 4.1A | Shielded | 32mOhm | - | 86MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
B82422A3181K100FIXED IND 180NH 360MA 380MOHM SM |
4,000 |
|
Техническая документация |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±10% | 360 mA | - | Unshielded | 380mOhm Max | 25 @ 30MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
744762327AFIXED IND 2.7UH 195MA 2.6OHM SMD |
3,936 |
|
Техническая документация |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 195 mA | - | Unshielded | 2.6Ohm Max | 20 @ 7.96MHz | 130MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
MCEK1210T1R0MHNFIXED IND 1UH 1.1A 179 MOHM SMD |
3,797 |
|
Техническая документация |
MCOIL™, MC | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 1.1 A | 1.5A | Shielded | 179mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|

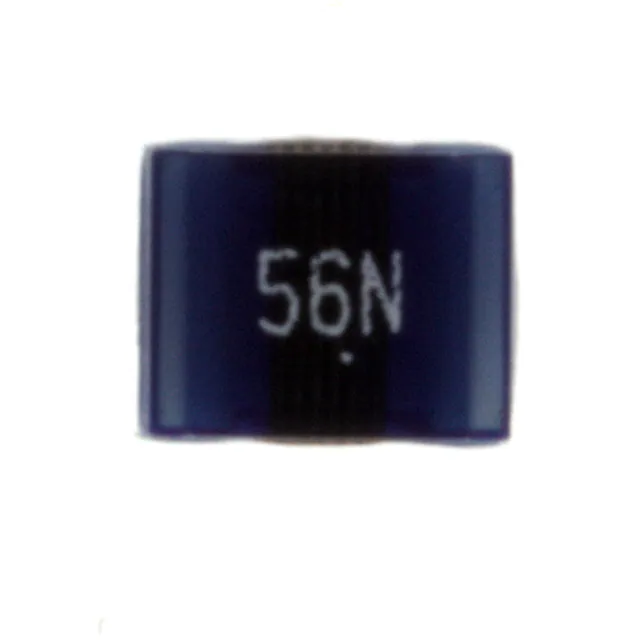

744762156AFIXED IND 56NH 1A 120 MOHM SMD |
3,572 |
|
Техническая документация |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 60 @ 350MHz | 1.35GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
SDCHA1V5040-220-RIND SMD POWER 22.0UH 1.5A |
2,930 |
|
Техническая документация |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 1.5 A | 1.62A | Shielded | 123mOhm | - | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.157" (4.00mm) |
|
744762068AFIXED IND 6.8NH 1A 60 MOHM SMD |
2,890 |
|
Техническая документация |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 1 A | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|

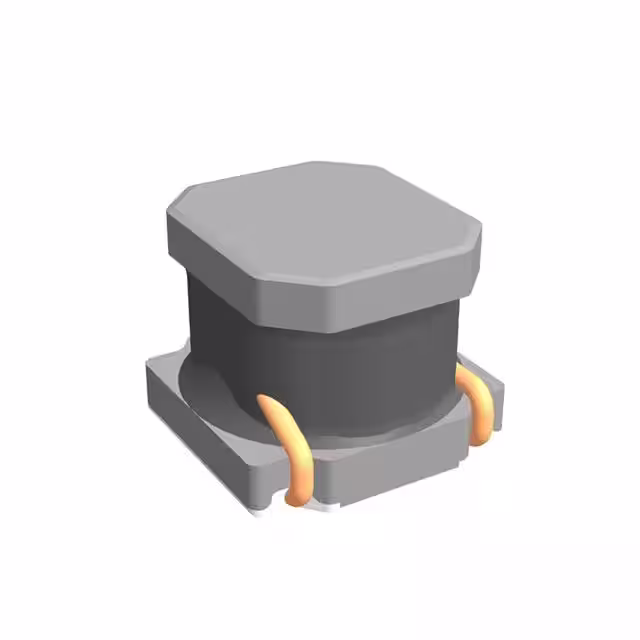

SDCHA1V5040-3R3-RIND SMD POWER 3.3UH 3.5A |
2,650 |
|
Техническая документация |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 3.5 A | 4.4A | Shielded | 24mOhm | - | 43MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.195" W (4.95mm x 4.95mm) | 0.161" (4.10mm) |
|
LQM2HPN1R5MCHLFIXED IND 1.5UH 950MA 360MOHM SM |
2,537 |
|
Техническая документация |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 950 mA | 600mA | Shielded | 360mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SDCHA1V5020-220-RIND SMD POWER 22.0UH 1.1A |
2,500 |
|
Техническая документация |
SDCHA1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 1.1 A | 1.1A | Shielded | 225mOhm | - | 24MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
