FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSP613PMOSFET P-CH 60V 2.9A SOT223-4 |
3,681 |
|
Техническая документация |
SIPMOS® | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.9A (Ta) | 10V | 130mOhm @ 2.9A, 10V | 4V @ 1mA | 33 nC @ 10 V | ±20V | 875 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4-21 |
|
|
BSP613PL6327HUSA1MOSFET P-CH 60V 2.9A SOT223-4 |
2,921 |
|
Техническая документация |
SIPMOS® | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.9A (Ta) | 10V | 130mOhm @ 2.9A, 10V | 4V @ 1mA | 33 nC @ 10 V | ±20V | 875 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
|
BSP89 E6327MOSFET N-CH 240V 350MA SOT223-4 |
9,565 |
|
Техническая документация |
SIPMOS® | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 240 V | 350mA (Ta) | 4.5V, 10V | 6Ohm @ 350mA, 10V | 1.8V @ 108µA | 6.4 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
|
BSP89L6327HTSA1MOSFET N-CH 240V 350MA SOT223-4 |
5,062 |
|
Техническая документация |
SIPMOS® | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 240 V | 350mA (Ta) | 4.5V, 10V | 6Ohm @ 350mA, 10V | 1.8V @ 108µA | 6.4 nC @ 10 V | ±20V | 140 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4-21 |
|
|
BSP92PL6327HTSA1MOSFET P-CH 250V 260MA SOT223-4 |
2,616 |
|
Техническая документация |
SIPMOS® | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 250 V | 260mA (Ta) | 4.5V, 10V | 12Ohm @ 260mA, 10V | 2V @ 130µA | 5.4 nC @ 10 V | ±20V | 104 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4-21 |
|
BSS123 E6433MOSFET N-CH 100V 170MA SOT23-3 |
3,893 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 1.8V @ 50µA | 2.67 nC @ 10 V | ±20V | 69 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS126 E6906MOSFET N-CH 600V 21MA SOT23-3 |
9,617 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 600 V | 21mA (Ta) | 0V, 10V | 500Ohm @ 16mA, 10V | 2.7V @ 8µA | 2.1 nC @ 5 V | ±20V | 28 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS138N E6433MOSFET N-CH 60V 230MA SOT23-3 |
2,407 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 4.5V, 10V | 3.5Ohm @ 230mA, 10V | 1.4V @ 250µA | 1.4 nC @ 10 V | ±20V | 41 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS138N E6908MOSFET N-CH 60V 230MA SOT23-3 |
5,183 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 4.5V, 10V | 3.5Ohm @ 230mA, 10V | 1.4V @ 250µA | 1.4 nC @ 10 V | ±20V | 41 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS138N E7854MOSFET N-CH 60V 230MA SOT23-3 |
8,694 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 4.5V, 10V | 3.5Ohm @ 230mA, 10V | 1.4V @ 250µA | 1.4 nC @ 10 V | ±20V | 41 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS139 E6906MOSFET N-CH 250V 100MA SOT23-3 |
9,925 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 250 V | 100mA (Ta) | 0V, 10V | 14Ohm @ 0.1mA, 10V | 1V @ 56µA | 3.5 nC @ 5 V | ±20V | 76 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS159N E6327MOSFET N-CH 60V 230MA SOT23-3 |
5,540 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 0V, 10V | 3.5Ohm @ 160mA, 10V | 2.4V @ 26µA | 2.9 nC @ 5 V | ±20V | 44 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS159N E6906MOSFET N-CH 60V 230MA SOT23-3 |
3,926 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 0V, 10V | 3.5Ohm @ 160mA, 10V | 2.4V @ 26µA | 2.9 nC @ 5 V | ±20V | 44 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS169 E6906MOSFET N-CH 100V 170MA SOT23-3 |
9,011 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 0V, 10V | 6Ohm @ 170mA, 10V | 1.8V @ 50µA | 2.8 nC @ 7 V | ±20V | 68 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
BSS192PL6327HTSA1MOSFET P-CH 250V 190MA SOT89 |
7,275 |
|
Техническая документация |
SIPMOS® | TO-243AA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 250 V | 190mA (Ta) | 2.8V, 10V | 12Ohm @ 190mA, 10V | 2V @ 130µA | 6.1 nC @ 10 V | ±20V | 104 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
|
|
BSS225MOSFET N-CH 600V 90MA SOT89 |
7,346 |
|
Техническая документация |
SIPMOS® | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 90mA (Ta) | 4.5V, 10V | 45Ohm @ 90mA, 10V | 2.3V @ 94µA | 5.8 nC @ 10 V | ±20V | 131 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
|
|
BSS225L6327HTSA1MOSFET N-CH 600V 90MA SOT89 |
4,904 |
|
Техническая документация |
SIPMOS® | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 90mA (Ta) | 4.5V, 10V | 45Ohm @ 90mA, 10V | 2.3V @ 94µA | 5.8 nC @ 10 V | ±20V | 131 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
|
|
BSS7728NMOSFET N-CH 60V 200MA SOT23-3 |
8,484 |
|
Техническая документация |
SIPMOS® | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 2.3V @ 26µA | 1.5 nC @ 10 V | ±20V | 56 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT23 |
|
|
BSS87L6327HTSA1MOSFET N-CH 240V 260MA SOT89 |
9,709 |
|
Техническая документация |
SIPMOS® | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 240 V | 260mA (Ta) | 4.5V, 10V | 6Ohm @ 260mA, 10V | 1.8V @ 108µA | 5.5 nC @ 10 V | ±20V | 97 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT89 |
|

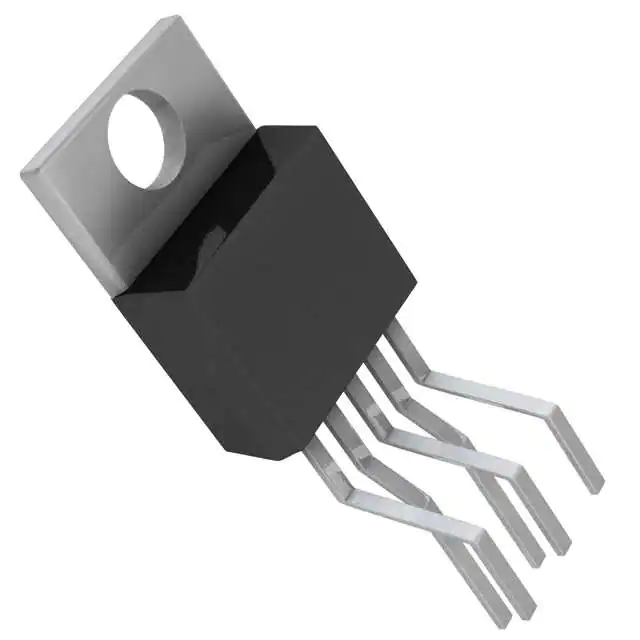

BTS244ZNKSA1MOSFET N-CH 55V 35A TO220-5-3 |
5,093 |
|
Техническая документация |
TEMPFET® | TO-220-5 Formed Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 35A (Tc) | 4.5V, 10V | 13mOhm @ 19A, 10V | 2V @ 130µA | 130 nC @ 10 V | ±20V | 2660 pF @ 25 V | Temperature Sensing Diode | 170W (Tc) | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-5-3 |
