Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0612H4001FAN AXIAL 60X25MM 12VDC WIRE |
1,671 |
|
Техническая документация |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.389 in H2O (96.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.04 W | 6150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9LG0624M4001FAN AXIAL 60X25MM 24VDC WIRE |
3,405 |
|
Техническая документация |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 960 mW | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9LG0624H400160X25MM 24V, HIGH PERF LONG LIFE |
3,011 |
|
Техническая документация |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0624H4D00160X25MM 24V, HIGH PERF LONG LIFE |
3,843 |
|
Техническая документация |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG0624M4D00160X25MM 24V, HIGH PERF LONG LIFE |
1,182 |
|
Техническая документация |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

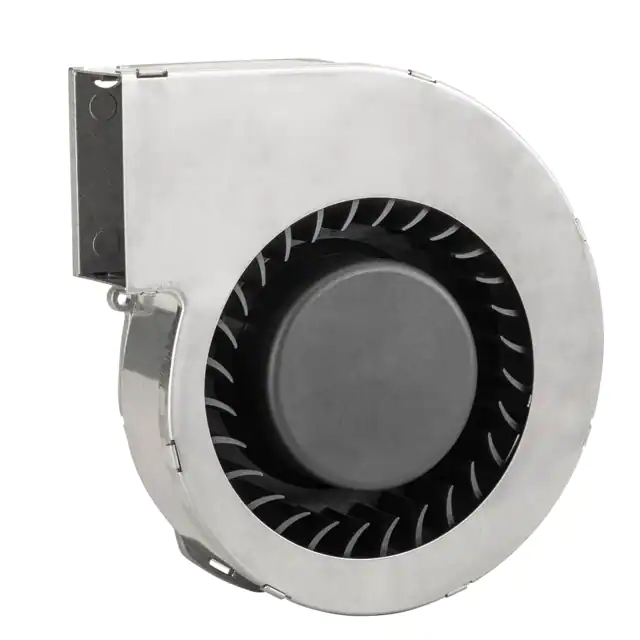

P1232X12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE |
2,247 |
|
Техническая документация |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 32.00mm | 37.9 CFM (1.07m³/min) | 1.590 in H2O (396.0 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 58.5dB(A) | 16.2 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
PFB1212GHE-T50FFAN AXIAL 120X38MM 12VDC WIRE |
1,380 |
|
Техническая документация |
PFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 32.4 W | 4800 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
9CRA0612P0S001FAN AXIAL DUAL 60X76MM 12VDC |
2,357 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 60.0 CFM (1.68m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 18 W | 14000 Front, 11000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.604 lb (273.97 g) |
|
9GA1248S4001FAN AXIAL 120X25.4MM 48VDC WIRE |
2,643 |
|
Техническая документация |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.0dB(A) | 7.68 W | 5400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
BFB1624HFAN BLOWER 159X40MM 24VDC WIRE |
1,147 |
|
Техническая документация |
BFB | Tray | Active | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 40.00mm | 61.8 CFM (1.73m³/min) | 1.387 in H2O (345.5 Pa) | Ball | Blower | Locked Rotor Protection | 56.5dB(A) | 17.16 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
|
VG40561BX-000U-S9H12VDC FAN 40X56MM TACH/PWM |
4,807 |
|
Техническая документация |
VG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 25.0 CFM (0.700m³/min) | 6.190 in H2O (1541.9 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 65.0dB(A) | 16.8 W | 25500 RPM Front, 22300 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VG40561B1-000U-S9H12VDC FAN 40X56MM TACH/PWM |
3,594 |
|
Техническая документация |
VG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 19.7 CFM (0.552m³/min) | 4.160 in H2O (1036.2 Pa) | Ball | Tubeaxial (Dual) | PWM Control | 62.5dB(A) | 9 W | 20400 RPM Front, 17800 RPM Rear | 3 Wire Leads per Fan | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
19031088AFAN AXIAL 172X50.8MM 48V PQ48C4 |
2,548 |
|
Техническая документация |
Patriot | - | Active | 48VDC | Round - 172mm Dia | 50.80mm | 205.0 CFM (5.74m³/min) | 0.615 in H2O (153.2 Pa) | Ball | Tubeaxial | - | 49.8dB(A) | 19 W | 3125 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|

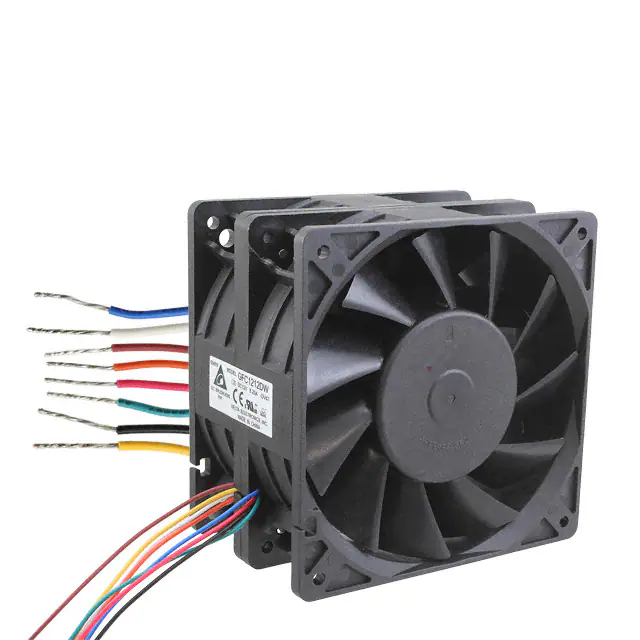

GFC1212DW-DV47FAN AXIAL DUAL 120X76MM 12VDC |
4,959 |
|
Техническая документация |
GFC | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 76.00mm | 293.6 CFM (8.22m³/min) | 1.441 in H2O (358.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 72 W | 5300 Front, 3950 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 1.7 lbs (780.0 g) |
|

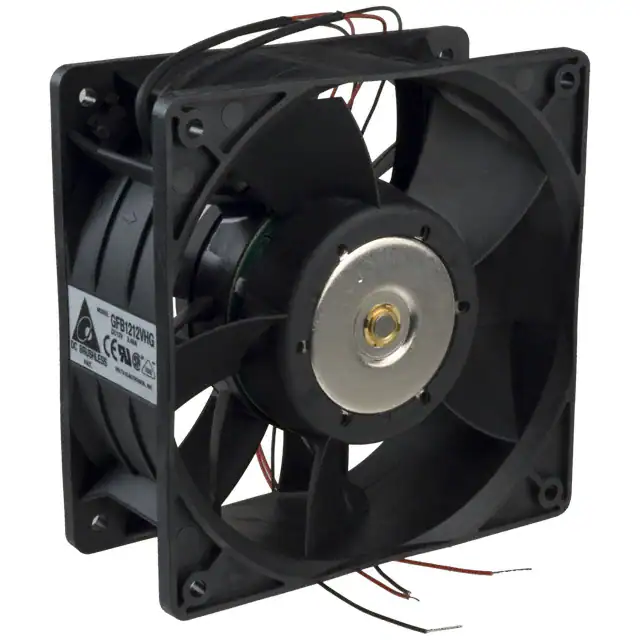

GFB1212VHGFAN AXIAL DUAL 120X50.8MM 12VDC |
4,151 |
|
Техническая документация |
GFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 50.80mm | 184.4 CFM (5.16m³/min) | 0.687 in H2O (171.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 65.0dB(A) | 33.84 W | 3400 Front, 3100 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|

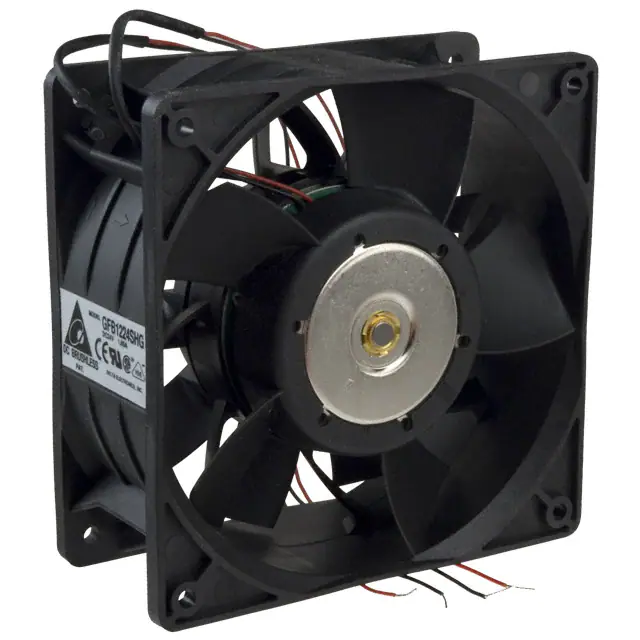

GFB1224SHGFAN AXIAL DUAL 120X50.8MM 24VDC |
4,881 |
|
Техническая документация |
GFB | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 50.80mm | 203.9 CFM (5.71m³/min) | 0.820 in H2O (204.3 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection | 67.6dB(A) | 35.04 W | 3700 Front, 3400 Rear | 2 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|
|
9WV0812M1D001FAN AXIAL 80X38MM 12VDC WIRE |
2,950 |
|
Техническая документация |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.9 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 51.0dB(A) | 9 W | 6000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.518 lb (234.96 g) |
|
|
9WV0812M1001FAN AXIAL 80X38MM 12VDC WIRE |
3,108 |
|
Техническая документация |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 80.9 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 9 W | 6000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.518 lb (234.96 g) |
|
|
9WV0824A100180X38MM 24V,SPLASH PROOF DC TACH |
1,692 |
|
Техническая документация |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9LG0624P4M001FAN AXIAL 60X25MM 24VDC WIRE |
2,134 |
|
Техническая документация |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 24.0dB(A) | 960 mW | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
