Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001137AFAN AXIAL 48VDC STD48Z3E2X-E3 |
1,126 |
|
Техническая документация |
Sprint | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 45.0 CFM (1.26m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.5dB(A) | 5.8 W | 4700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
W2G110-AM41-31FAN AXIAL 119X38MM 48VDC TERM |
4,919 |
|
Техническая документация |
W1G110 | - | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 156.0 CFM (4.37m³/min) | - | Ball | Tubeaxial | - | 54.0dB(A) | 5.9 W | - | 2 Terminals | - | - | CSA, UL, VDE | - |
|
|
9WG1212F102-EFAN AXIAL 120X38MM 12VDC WIRE |
4,217 |
|
Техническая документация |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 3.36 W | 2280 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212M102-EFAN AXIAL 120X38MM 12VDC WIRE |
1,330 |
|
Техническая документация |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.52 W | 1950 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224E102-EFAN AXIAL 120X38MM 24VDC WIRE |
4,997 |
|
Техническая документация |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 8.16 W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224H102-EFAN AXIAL 120X38MM 24VDC WIRE |
3,995 |
|
Техническая документация |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224M102-EFAN AXIAL 120X38MM 24VDC WIRE |
3,984 |
|
Техническая документация |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.64 W | 1950 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
PFB1212GHEFAN AXIAL 120X38MM 12VDC WIRE |
2,938 |
|
Техническая документация |
PFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 64.0dB(A) | 32.4 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
|
4218/2FAN AXIAL 119X38MM 48VDC WIRE |
1,736 |
|
Техническая документация |
4200 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 4.3 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.639 lb (289.85 g) |
|
9WFA0624G6002FAN AXIAL 60X20MM 24VDC WIRE |
2,867 |
|
Техническая документация |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 27.9 CFM (0.781m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 3.8 W | 7700 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.188 lb (85.28 g) |
|

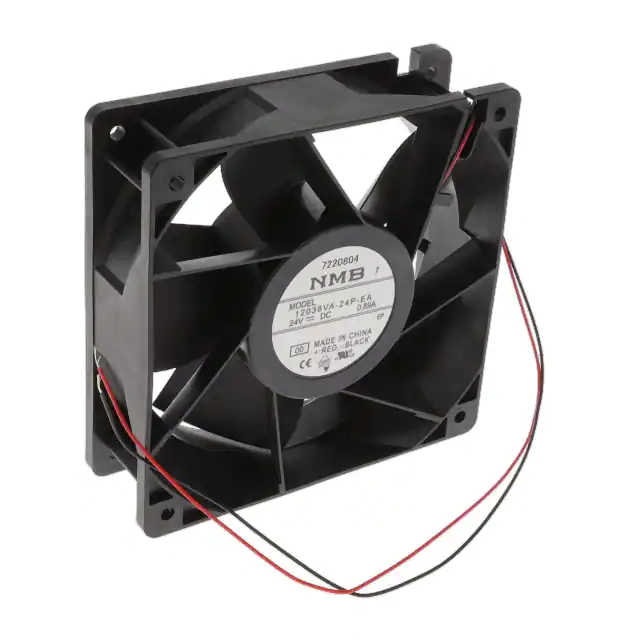

12038VA-24P-EA-00FAN AXIAL 120X38MM 24VDC WIRE |
4,130 |
|
Техническая документация |
12038VA | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Tubeaxial | Auto Restart | 60.0dB | 17.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
9WPA0424G3001FAN AXIAL 40X28MM 24VDC WIRE |
3,046 |
|
Техническая документация |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0412G30011FAN AXIAL 40X28MM 12VDC WIRE |
1,844 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0424G30011FAN AXIAL 40X28MM 24VDC WIRE |
3,081 |
|
Техническая документация |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0412G3001FAN AXIAL 40X28MM 12VDC WIRE |
4,874 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9WFA0424G6002FAN AXIAL 40X20MM 24VDC WIRE |
2,129 |
|
Техническая документация |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.9 CFM (0.305m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 2.6 W | 17000 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.101 lb (45.81 g) |
|
|
9WG1212E1D01-EFAN AXIAL 120X38MM 12VDC WIRE |
3,022 |
|
Техническая документация |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 7.32 W | 3100 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1212H101-EFAN AXIAL 120X38MM 12VDC WIRE |
3,723 |
|
Техническая документация |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224F101-EFAN AXIAL 120X38MM 24VDC WIRE |
4,552 |
|
Техническая документация |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 3.84 W | 2280 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
|
|
9WG1224F1D01-EFAN AXIAL 120X38MM 24VDC WIRE |
2,589 |
|
Техническая документация |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 3.84 W | 2280 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.904 lb (410.05 g) |
