Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19030577AFAN AXIAL 120X32MM 24VDC MC24H3 |
4,959 |
|
Техническая документация |
Muffin | - | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 80.0 CFM (2.24m³/min) | 0.269 in H2O (67.0 Pa) | Ball | Tubeaxial | - | 41.9dB(A) | 4.8 W | 3000 RPM | 2 Wire Leads | - | - | - | 0.529 lb (239.95 g) |
|
19032579AFAN WHIFFET 24VDC WT24B3QDNX |
3,791 |
|
Техническая документация |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

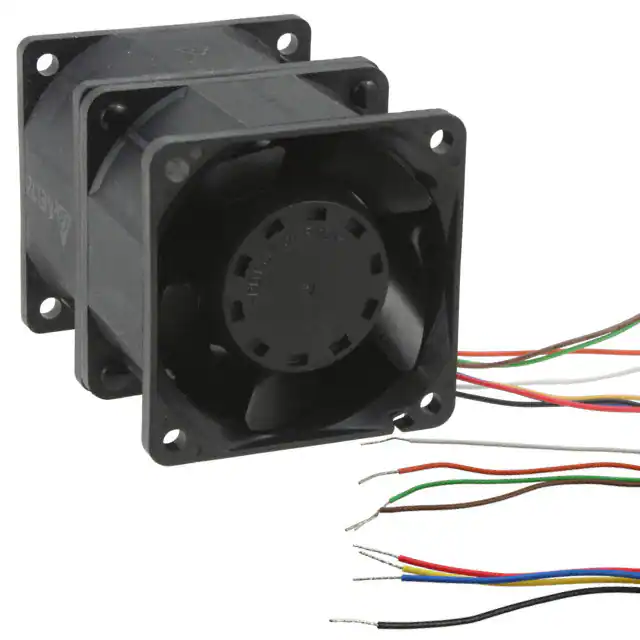

GFC0612DW-F00FAN AXIAL DUAL 60X76MM 12VDC |
3,077 |
|
Техническая документация |
GFC | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 69.7 CFM (1.95m³/min) | 2.690 in H2O (670.1 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.2dB(A) | 28.8 W | 13300 Front, 9600 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.617 lb (280.00 g) |
|
|
VF60381BX-000U-S9H12VDC FAN 60X38MM TACH/PWM |
3,011 |
|
Техническая документация |
VF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | PWM Control | 64.1dB(A) | 22.8 W | 22800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60381B1-000U-S9H12VDC FAN 60X38MM TACH/PWM |
4,827 |
|
Техническая документация |
VF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | PWM Control | 60.9dB(A) | 12 W | 18300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
9GV0912P1G031FAN AXIAL 92X38MM 12VDC WIRE |
2,102 |
|
Техническая документация |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 49.2 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9WF0924H4D01FAN AXIAL 92X25MM 24VDC WIRE |
3,028 |
|
Техническая документация |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB(A) | 3.12 W | 3900 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9GV0912P1F031FAN AXIAL 92X38MM 12VDC WIRE |
3,837 |
|
Техническая документация |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 146.6 CFM (4.10m³/min) | 1.050 in H2O (261.5 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 22.8 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9WF0924H4011FAN AXIAL 92X25MM 24VDC WIRE |
1,100 |
|
Техническая документация |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB(A) | 3.12 W | 3900 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.265 lb (120.2 g) |
|
|
9CRA0412J401FAN AXIAL DUAL 40X48MM 12VDC |
4,988 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 30.0 CFM (0.840m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 14.4 W | 16200 Front, 10800 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|
|
9CRA0412K401FAN AXIAL DUAL 40X48MM 12VDC |
4,641 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 48.00mm | 32.5 CFM (0.910m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 64.0dB(A) | 19.2 W | 17500 Front, 11700 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|
1-NPT/603-1469FAN AXL 120X38MM 12VDC RECT CONN |
3,243 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
FFB1224SHE-R00FAN AXIAL 120X38MM 24VDC WIRE |
1,293 |
|
Техническая документация |
FFB | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.5dB(A) | 19.2 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
|
VF60381BX-000U-Q9H12VDC FAN 60X38MM ALARM/PWM |
3,736 |
|
Техническая документация |
VF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.8 CFM (1.90m³/min) | 4.840 in H2O (1205.6 Pa) | Ball | Tubeaxial | PWM Control | 64.1dB(A) | 22.8 W | 22800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
VF60381B1-000U-Q9H12VDC FAN 60X38MM ALARM/PWM |
1,802 |
|
Техническая документация |
VF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 53.9 CFM (1.51m³/min) | 4.230 in H2O (1053.6 Pa) | Ball | Tubeaxial | PWM Control | 60.9dB(A) | 12 W | 18300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
BFB1224VH-AF00FAN BLOWER 120X32MM 24VDC WIRE |
4,800 |
|
Техническая документация |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 42.5 CFM (1.19m³/min) | 1.848 in H2O (460.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 16.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
|
9CRA0312J401FAN AXIAL DUAL 38X48MM 12VDC |
1,597 |
|
Техническая документация |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 48.00mm | 24.7 CFM (0.692m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 13.2 W | 16000 Front, 13200 Rear | 3 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.177 lb (80.29 g) |
|
|
9CRA0312K40138X48MM 12V,COUNTER ROTATING DC |
4,583 |
|
Техническая документация |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 48.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GA0912H102FAN AXIAL 92X38MM 12VDC WIRE |
1,124 |
|
Техническая документация |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 25.2 W | 9700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9GA0912H1021FAN AXIAL 92X38MM 12VDC WIRE |
2,873 |
|
Техническая документация |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 25.2 W | 9700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
