Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0351012W2B-BT0FAN AXIAL 35X10MM 12VDC WIRE |
249 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 840 mW | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|

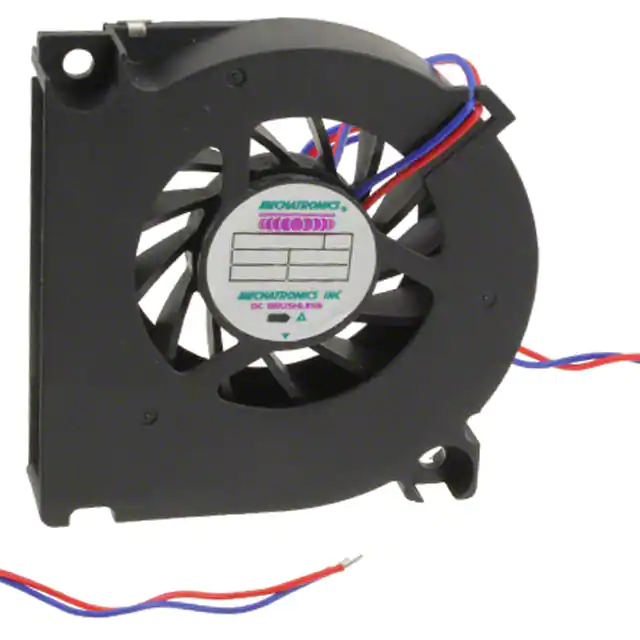

B6012M12D-BSRFAN BLOWER 60X12MM 12VDC WIRE |
201 |
|
Техническая документация |
B6012 | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 12.00mm | 5.0 CFM (0.140m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Blower | Thermal Overload Protector (TOP) | 34.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | - | 0.057 lb (25.85 g) |
|
AFB0424LBFAN AXIAL 40X15MM 24VDC WIRE |
5,971 |
|
Техническая документация |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.5 CFM (0.182m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.5dB(A) | 1.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
AFB0605MCFAN AXIAL 60X13MM BALL 5VDC WIRE |
4,529 |
|
Техническая документация |
AFB | Box | Active | 5VDC | Square - 60mm L x 60mm H | 13.00mm | 18.2 CFM (0.510m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 900 mW | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
AFB0424VHBFAN AXIAL 40X15MM 24VDC WIRE |
1,783 |
|
Техническая документация |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.5dB(A) | 2.4 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
AFB0424SHBFAN AXIAL 40X15MM 24VDC WIRE |
844 |
|
Техническая документация |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.5dB(A) | 2.88 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
AFB0624MBFAN AXIAL 60X15MM 24VDC WIRE |
104 |
|
Техническая документация |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 13.5 CFM (0.378m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.44 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
109P0612K702FAN AXIAL 60X15MM 12VDC WIRE |
129 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.9 CFM (0.613m³/min) | 0.399 in H2O (99.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 3.12 W | 6500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
EFB0424VHD-TZW2FAN AXIAL 40X20MM 24VDC WIRE |
229 |
|
Техническая документация |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 2.16 W | 9000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|

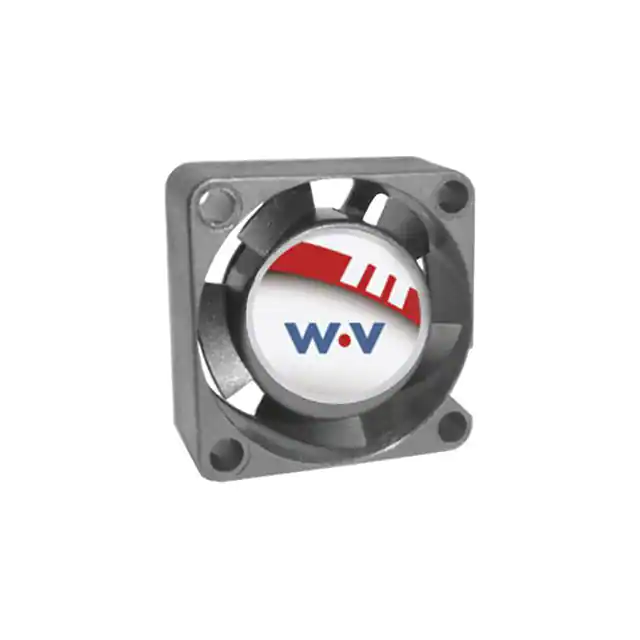

DC0301012U2B-BT0FAN AXIAL 30X10.5MM 12VDC WIRE |
858 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 5.7 CFM (0.160m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.08 W | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|

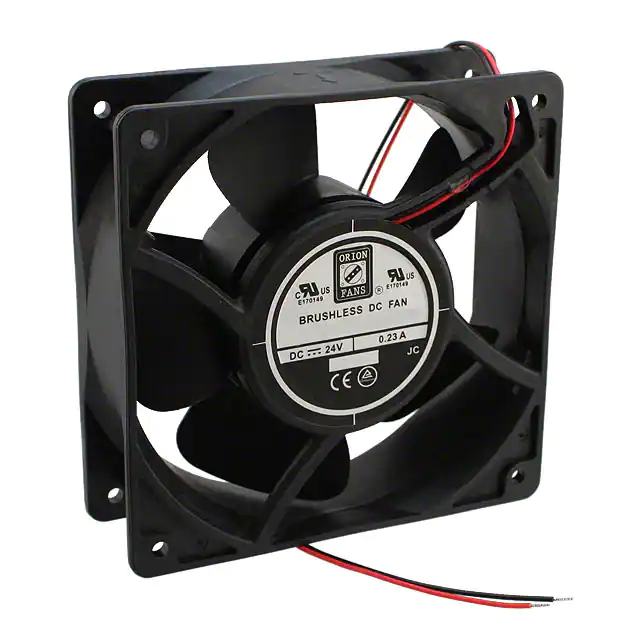

OD1238-24MSSFAN AXIAL 120X38.5MM 24VDC WIRE |
196 |
|
Техническая документация |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 96.0 CFM (2.69m³/min) | 0.230 in H2O (57.3 Pa) | Sealed Sleeve | Tubeaxial | - | 47.0dB | 4.8 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
9G0924H202FAN AXIAL 92X32MM 24VDC WIRE |
1,021 |
|
Техническая документация |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
109P0424H302FAN AXIAL 40X28MM 24VDC WIRE |
2,214 |
|
Техническая документация |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.28 W | 8700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0412B301FAN AXIAL 40X28MM 12VDC WIRE |
594 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.36 W | 10300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0624S7D01FAN AXIAL 60X15MM 24VDC WIRE |
388 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.9 CFM (0.473m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 1.92 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0405H3013FAN AXIAL 40X28MM BALL 5VDC WIRE |
308 |
|
Техническая документация |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.4 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0412G302FAN AXIAL 40X28MM 12VDC WIRE |
117 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 3.72 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0424B3013FAN AXIAL 40X28MM 24VDC WIRE |
105 |
|
Техническая документация |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 13.4 CFM (0.375m³/min) | 0.574 in H2O (143.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.12 W | 10300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
109P0612S7D01FAN AXIAL 60X15MM 12VDC WIRE |
207 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.0dB(A) | 1.8 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
9A0924S401FAN AXIAL 92X25MM 24VDC WIRE |
116 |
|
Техническая документация |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.6 W | 3550 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
