Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AF40101VX-1000U-SL912VDC FAN 40X10MM TACH/PWM IP52 |
1,467 |
|
Техническая документация |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.7dB(A) | 0.78 W | 8000 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40100VX-1000U-SL95VDC FAN 40X10MM TACH/PWM IP52 |
2,296 |
|
Техническая документация |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | PWM Control, Speed Sensor (Tach) | 30.7dB(A) | 0.6 W | 8000 RPM | 4 Wire Leads | IP52 | - | CCC, CE, cURus, TUV, UKCA | - |
|
3610SB-05W-B30-E00FAN AXIAL 92X25MM 24VDC WIRE |
4,348 |
|
Техническая документация |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | - | 28.0dB | 1.2 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
|
MC17080V2-000U-A99FAN AXIAL 17X8MM VAPO 5VDC WIRE |
2,080 |
|
Техническая документация |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.706 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 16.0dB(A) | 500 mW | 15000 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.01 lb (4.54 g) |
|
|
DC0601524L2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
2,513 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.92 W | 3500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524J2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
1,323 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.44 W | 3000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524H2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
2,078 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.88 W | 4500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524M2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
1,422 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.4 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
(7025B).jpg)
|
CFM-7015B-150-406-22FAN AXIAL 70X15.5MM 12VDC WIRE |
3,874 |
|
Техническая документация |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.6dB(A) | 3.96 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
BFB0612H-R00FAN BLOWER 60X25MM 12VDC WIRE |
2,106 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 6.7 CFM (0.188m³/min) | 0.428 in H2O (106.6 Pa) | Ball | Blower | Locked Rotor Sensor | 30.0dB(A) | 2.16 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CSA, UL, VDE | 0.113 lb (51.26 g) |
|
|
BFB0612HH-F00FAN BLOWER 60X25MM 12VDC WIRE |
1,908 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 7.9 CFM (0.221m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.88 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.113 lb (51.26 g) |
|
|
BFB0612H-F00FAN BLOWER 60X25MM 12VDC WIRE |
2,222 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 25.00mm | 6.7 CFM (0.188m³/min) | 0.428 in H2O (106.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 2.16 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 194°F (-10 ~ 90°C) | CE, CSA, UL, VDE | 0.113 lb (51.26 g) |
|
|
G4010H05B2-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
4,388 |
|
Техническая документация |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010H05B2-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE |
2,273 |
|
Техническая документация |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010H24B1-RSR-WSFAN AXIAL 40X10.3MM 24VDC WIRE |
1,201 |
|
Техническая документация |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010L12B1-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
2,186 |
|
Техническая документация |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010M05B2-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE |
2,330 |
|
Техническая документация |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 28.0dB(A) | - | 6000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
KDE0501PFB3-8(2).N.VFAN AXIAL 20X10MM BALL 5VDC WIRE |
4,090 |
|
Техническая документация |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 0.860 CFM (0.024m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 20.0dB(A) | 400 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.014 lb (6.35 g) |
V.jpg)
|

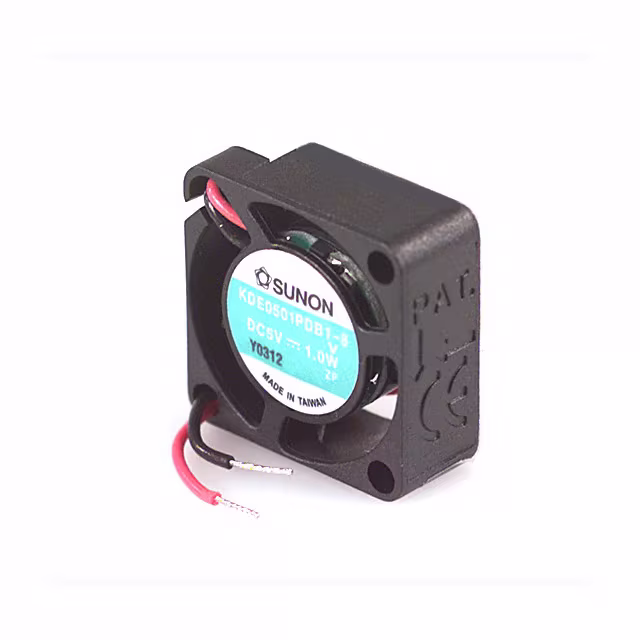

KDE0501PDB1-8(2)(V)FAN AXIAL 20X8MM BALL 5VDC WIRE |
4,460 |
|
Техническая документация |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.9 CFM (0.053m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | 1 W | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.011 lb (4.99 g) |
V.jpg)
|
KDE0517PDB2-8(2)(V)FAN AXIAL 17X8MM BALL 5VDC WIRE |
1,031 |
|
Техническая документация |
KDE | - | Obsolete | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.812 CFM (0.023m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 27.0dB(A) | 600 mW | 15000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.009 lb (4.08 g) |
