Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB03512MA-CAXIAL SQUARE-35MM L X 35MM H X10 |
1,932 |
|
Техническая документация |
AFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.3 CFM (0.120m³/min) | 0.076 in H2O (18.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 17.0dB(A) | 0.6 W | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
DC0401012U2B-BT0FAN AXIAL 40X10MM 12VDC WIRE |
2,631 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 1.08 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0401012M2B-BT0FAN AXIAL 40X10MM 12VDC WIRE |
2,357 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 21.0dB(A) | 360 mW | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0401012H2B-BT0FAN AXIAL 40X10MM 12VDC WIRE |
2,894 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
DC0401024U2B-3T0FAN 40X10MM 24VDC TACH |
2,401 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024M2B-3T0FAN 40X10MM 24VDC TACH |
2,321 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 480 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0401024H2B-3T0FAN 40X10MM 24VDC TACH |
3,402 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

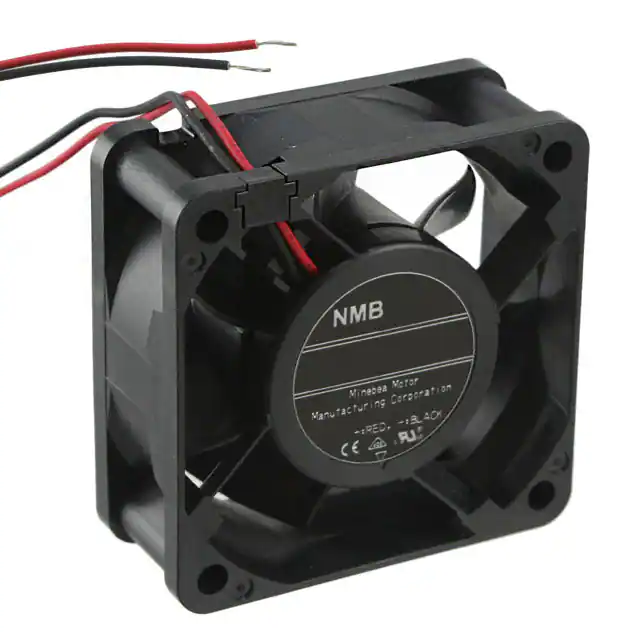

2410SB-05W-B50-B00FAN AXIAL 60X25MM 24VDC WIRE |
4,214 |
|
Техническая документация |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 1.92 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
PE60251B3-000U-G99FAN AXIAL 60X25MM 12VDC WIRE |
1,049 |
|
Техническая документация |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EF40201B3-1000U-G9912VDC FAN 40X20MM ALARM |
2,037 |
|
Техническая документация |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.4 CFM (0.179m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 16.2dB(A) | 0.42 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B2-1000U-G9912VDC FAN 40X20MM ALARM |
2,040 |
|
Техническая документация |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.3dB(A) | 0.48 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B1-1000U-G9912VDC FAN 40X20MM ALARM |
3,090 |
|
Техническая документация |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.5dB(A) | 0.66 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201BX-1000U-G9912VDC FAN 40X20MM ALARM |
4,329 |
|
Техническая документация |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.5dB(A) | 0.78 W | 8200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
DC0802012J2B-3T0FAN AXIAL 80X20MM 12VDC WIRE |
3,377 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 27.4 CFM (0.767m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.56 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|
|
DC0802012L2B-3T0FAN AXIAL 80X20MM 12VDC WIRE |
2,899 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 31.2 CFM (0.873m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.92 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|
|
DC0802012M2B-3T0FAN AXIAL 80X20MM 12VDC WIRE |
3,363 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 36.7 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|
DC0702512L2B-BT0FAN AXIAL 70X25MM 12VDC WIRE |
3,117 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 27.0dB(A) | 840 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.111 lb (50.35 g) |
|
DC0701512L2B-3T0FAN AXIAL 70X15MM 12VDC WIRE |
4,500 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.32 lb (145.15 g) |
|
|
DC0701512J2B-3T0FAN AXIAL 70X15MM 12VDC WIRE |
4,146 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.32 lb (145.15 g) |
|
|
DC0702524L2B-3T0FAN 70X25MM 24VDC TACH |
2,234 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.00mm | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.68 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
