Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(7025C).jpg)
|
CFM-7015C-150-406-22FAN AXIAL 70X15.5MM 12VDC WIRE |
3,108 |
|
Техническая документация |
CFM-70C | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.6dB(A) | 3.96 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8015-13-22FAN AXIAL 80X15.4MM 12VDC WIRE |
3,300 |
|
Техническая документация |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 44.0 CFM (1.23m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.8dB(A) | 2.88 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|

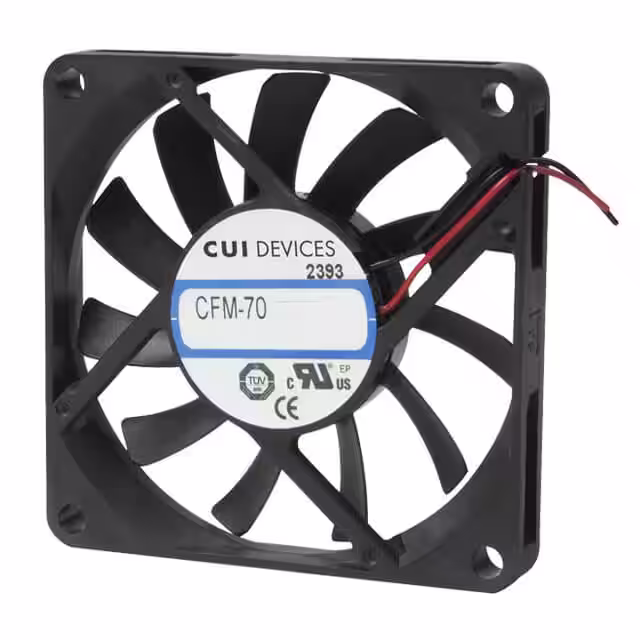

CFM-7010-13-11FAN AXIAL 70X10.6MM 12VDC WIRE |
2,179 |
|
Техническая документация |
CFM-70 | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 10.60mm | 31.1 CFM (0.871m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.6dB(A) | 3.24 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.083 lb (37.65 g) |
|
EFB0512HHAFAN AXIAL 50X10MM 12VDC WIRE |
3,993 |
|
Техническая документация |
EFB | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 13.6 CFM (0.381m³/min) | 0.232 in H2O (57.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.5dB(A) | 1.8 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|

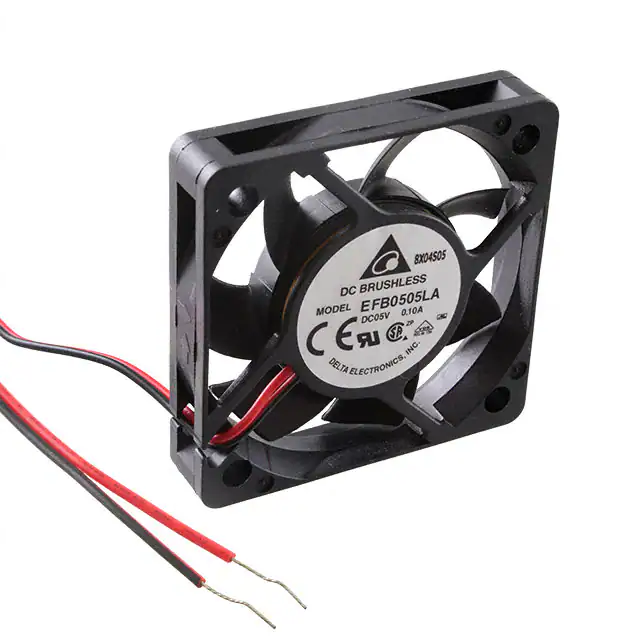

EFB0505LAFAN AXIAL 50X10MM BALL 5VDC WIRE |
4,428 |
|
Техническая документация |
EFB | Box | Active | 5VDC | Square - 50mm L x 50mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 350 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
19032744AFAN AXIAL 80X25MM CR0824HB-A70GL |
1,164 |
|
Техническая документация |
Flight LT 80 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.8dB(A) | 2.4 W | 3010 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.19 lb (86.18 g) |
|
KD1206PTB2.13.(2).GNFAN AXIAL 60X25MM 12VDC WIRE |
3,534 |
|
Техническая документация |
KD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD1206PTB3.13.(2).GNFAN AXIAL 60X25MM 12VDC WIRE |
1,178 |
|
Техническая документация |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
(8020CF).jpg)
|
CFM-8015CF-240-363-22FAN AXIAL 80X15.4MM 24VDC WIRE |
2,288 |
|
Техническая документация |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 5.04 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015CF-140-363-22FAN AXIAL 80X15.4MM 12VDC WIRE |
2,909 |
|
Техническая документация |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 35.2dB(A) | 6.12 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF60151V2-1B00U-G9912VDC FAN 60X15MM ALARM |
2,679 |
|
Техническая документация |
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.1 CFM (0.143m³/min) | 0.330 in H2O (82.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 0.66 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EE60201B2-000U-G9912VDC FAN 60X20MM ALARM |
3,668 |
|
Техническая документация |
EE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 1.14 W | 3700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151V1-1B00U-G9912VDC FAN 60X15MM ALARM |
1,307 |
|
Техническая документация |
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.6 CFM (0.157m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 32.8dB(A) | 0.9 W | 4000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EE60201B1-000U-G9912VDC FAN 60X20MM ALARM |
2,528 |
|
Техническая документация |
EE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.5dB(A) | 1.62 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151VX-1B00U-G9912VDC FAN 60X15MM ALARM |
3,720 |
|
Техническая документация |
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 6.2 CFM (0.174m³/min) | 0.710 in H2O (176.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 37.7dB(A) | 1.56 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EE60201B3-000U-G9912VDC FAN 60X20MM ALARM |
2,016 |
|
Техническая документация |
EE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.1 CFM (0.395m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.5dB(A) | 0.84 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
09225SS-12Q-ET-D0DC AXIAL FAN |
1,921 |
|
Техническая документация |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.6 CFM (1.84m³/min) | 0.293 in H2O (73.0 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.0dB | 3.36 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SS-12N-ET-D0DC AXIAL FAN |
2,557 |
|
Техническая документация |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.7 CFM (1.45m³/min) | 0.181 in H2O (45.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SS-12L-EL-D0DC AXIAL FAN |
2,025 |
|
Техническая документация |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB | 1.08 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SS-12M-EL-D0DC AXIAL FAN |
1,451 |
|
Техническая документация |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 45.6 CFM (1.28m³/min) | 0.145 in H2O (36.1 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB | 1.68 W | 2750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
