Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WP1224H101FAN AXIAL 120X38MM 24VDC WIRE |
1,358 |
|
Техническая документация |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.794 lb (360.15 g) |
|
19028886AFAN AXIAL 119.1X39.1MM MD24B5 |
304 |
|
Техническая документация |
Muffin XL | Box | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 6 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
19028870AFAN AXIAL 119.1X39.1MM MD48B2 |
104 |
|
Техническая документация |
Muffin XL | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 5.8 W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
19028866AFAN AXIAL 119.1X39.1MM MD24B1 |
385 |
|
Техническая документация |
Muffin XL | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 6 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
RLF35-8/12NFAN BLOWER CF 51X15MM 12VDC WIRE |
419 |
|
Техническая документация |
RLF35 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 5.7 CFM (0.160m³/min) | - | Ball | Blower, Centrifugal | Locked Rotor Protection | 6.4dB(A) | 3.5 W | 6700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | - |
|
GFB0612ES-EFAN AXIAL DUAL 60X56MM 12VDC |
128 |
|
Техническая документация |
GFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 56.00mm | 76.5 CFM (2.14m³/min) | 9.730 in H2O (2423.6 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 49.8 W | 22300 Front, 24500 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB0812UHE-EPFAN AXIAL 80X38MM 12VDC WIRE |
1,108 |
|
Техническая документация |
PFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 91.8 CFM (2.57m³/min) | 0.974 in H2O (242.6 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 57.5dB(A) | 11.88 W | 6550 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
3214JNFAN AXIAL 92X38MM 24VDC WIRE |
186 |
|
Техническая документация |
3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 77.0 CFM (2.16m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 8 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.529 lb (239.95 g) |
|
RLF35-8/14NFAN BLOWER CF 51X15MM 24VDC WIRE |
4,161 |
|
Техническая документация |
RLF35 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 5.7 CFM (0.160m³/min) | - | Ball | Blower, Centrifugal | Locked Rotor Protection | - | 4.3 W | 6700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | - |
|

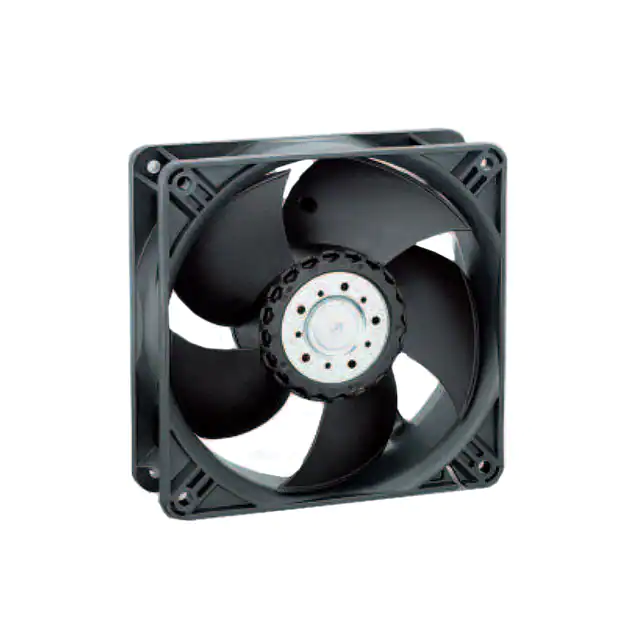

4412/2HFAN AXIAL 119X38MM 12VDC WIRE |
3,405 |
|
Техническая документация |
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 0.640 in H2O (160.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 8.6 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.604 lb (273.97 g) |
|
9HVA0812P1G001FAN AXIAL 80X38MM 12VDC WIRE |
270 |
|
Техническая документация |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 132.0 CFM (3.70m³/min) | 5.400 in H2O (1345.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 42 W | 16100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.485 lb (219.99 g) |
|
|
4414/2HHPFAN AXIAL 119X38MM 24VDC WIRE |
241 |
|
Техническая документация |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 168 CFM (4.8m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.553 lb (250.84 g) |
|

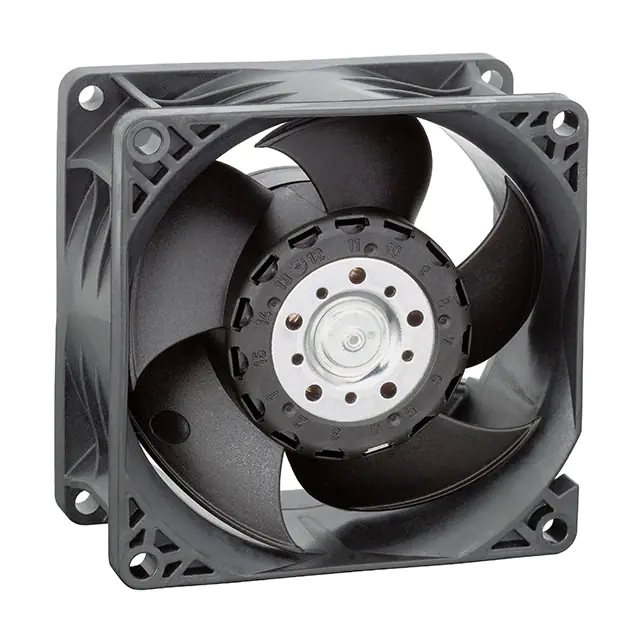

8214JNFAN AXIAL 80X38MM 24VDC WIRE |
528 |
|
Техническая документация |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 78.0 CFM (2.18m³/min) | - | Ball | Tubeaxial | - | 55.0dB(A) | 10 W | 8400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.353 lb (160.12 g) |
|
9LG0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
440 |
|
Техническая документация |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.389 in H2O (96.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 2.04 W | 6150 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9LG0624P4H001FAN AXIAL 60X25MM 24VDC WIRE |
229 |
|
Техническая документация |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.389 in H2O (96.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 1.92 W | 6150 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

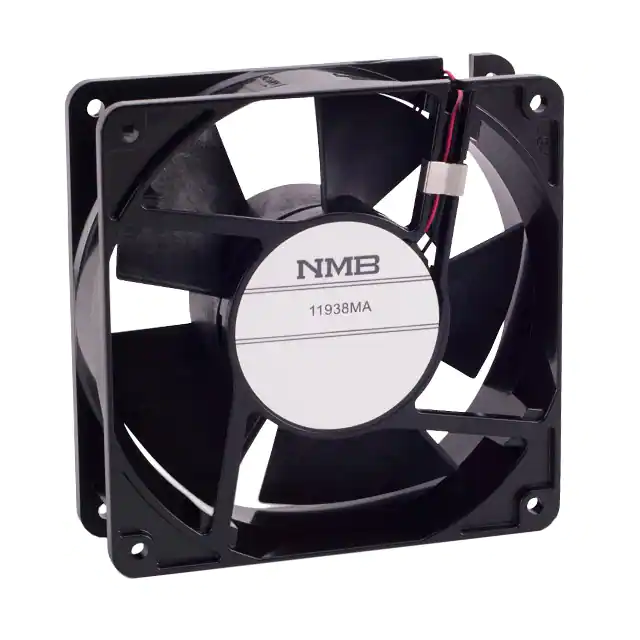

11938ME-24P-GA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
192 |
|
Техническая документация |
11938MA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 181.3 CFM (5.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 59.5dB | 22.4 W | 4700 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
19031636AFAN AXIAL 127X38.1MM 24V GL24B7 |
432 |
|
Техническая документация |
Galaxy | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.6dB(A) | 15 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
PFE0381BX-000U-S99FAN AXIAL 140X38MM 12VDC WIRE |
180 |
|
Техническая документация |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 70.3dB(A) | 39.6 W | 6800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.1 lbs (499.0 g) |
|
9LG0612P4J001FAN AXIAL 60X25MM 12VDC WIRE |
1,054 |
|
Техническая документация |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.68 W | 8650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9GV1248P4G01FAN AXIAL 120X25.4MM 48VDC WIRE |
778 |
|
Техническая документация |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 170.9 CFM (4.79m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
