Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD3506-12MSSFAN AXIAL 35X6MM 12VDC WIRE |
3,360 |
|
Техническая документация |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.00mm | - | - | Sealed Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
CBM-4007C-150-238-20DC BLOWER, 40 MM SQUARE, 7 MM, 1 |
1,956 |
|
Техническая документация |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.4 CFM (0.040m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 23.8dB(A) | 1.08 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-4007C-050-238-20DC BLOWER, 40 MM SQUARE, 7 MM, 5 |
2,700 |
|
Техническая документация |
CBM-40C | Box | Active | 5VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.4 CFM (0.040m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 23.8dB(A) | 700 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015C-275-287DC AXIAL FAN, 40 MM SQUARE, 15 M |
2,632 |
|
Техническая документация |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 28.7dB(A) | 1.2 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

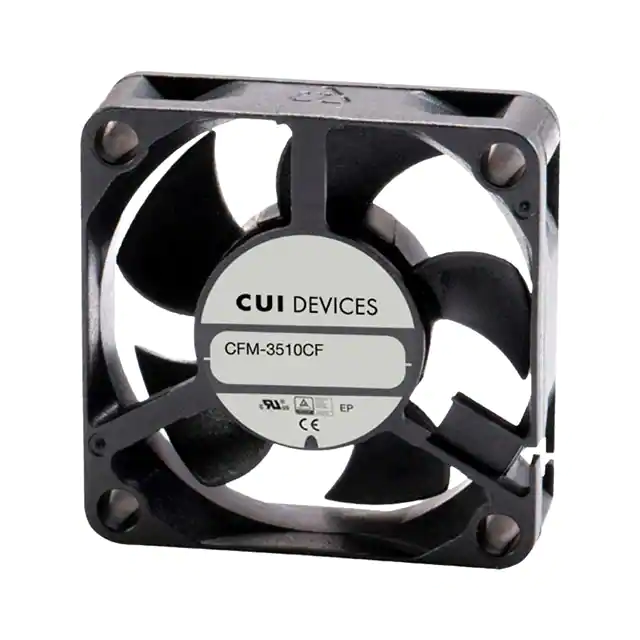

CFM-3510CF-190-277-22FAN AXIAL 35X10.3MM 12VDC WIRE |
4,061 |
|
Техническая документация |
CFM-35CF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.30mm | 5.9 CFM (0.165m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 27.7dB(A) | 1.44 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-230-404DC BLOWER, 49.2 X 49.8 X 20 MM, |
3,410 |
|
Техническая документация |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 9.9 CFM (0.277m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 40.4dB(A) | 3.36 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-130-404DC BLOWER, 75.7 X 75.7 X 30 MM, |
3,869 |
|
Техническая документация |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.1 CFM (0.283m³/min) | 0.330 in H2O (82.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart | 40.4dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010C-155-313-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
4,112 |
|
Техническая документация |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 11.8 CFM (0.330m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.3dB(A) | 1.56 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010C-135-215-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
3,956 |
|
Техническая документация |
CFM-50C | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | 0.48 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

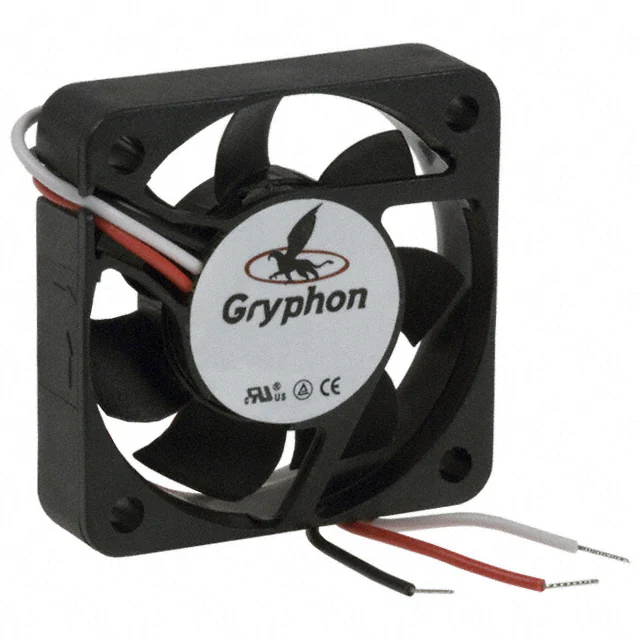

GDA4010-24BBFAN AXIAL 40X10MM 24VDC WIRE |
2,443 |
|
Техническая документация |
Gryphon | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.5dB(A) | 2.2 W | 7000 RPM | 3 Wire Leads | - | - | - | 0.035 lb (15.88 g) |
|
AFB0412HA-AR00FAN AXIAL 40X10MM 12VDC WIRE |
3,347 |
|
Техническая документация |
AFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 480 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
AFB0412HA-AAU4FAN AXIAL 40X10MM 12VDC WIRE |
4,405 |
|
Техническая документация |
AFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 27.0dB(A) | 480 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.031 lb (14.06 g) |
|

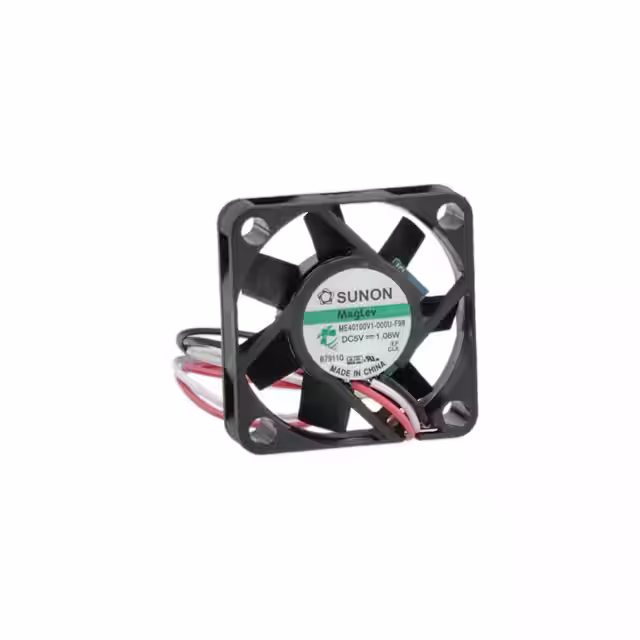

ME40100V1-000U-F99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
2,987 |
|
Техническая документация |
MagLev® ME | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.0dB(A) | 1.08 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
HA80251V4-000U-999FAN AXIAL 80X25MM 12VDC WIRE |
4,718 |
|
Техническая документация |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.7 CFM (0.664m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | - | 22.1dB(A) | 800 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.138 lb (62.6 g) |
|
|
CFM-2507CF-1100-240-22DC AXIAL FAN, 25 MM SQUARE, 7 MM |
1,631 |
|
Техническая документация |
CFM-25CF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.00mm | 2.2 CFM (0.061m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 24.1dB(A) | 1.32 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015V-247-290-11FAN AXIAL 50X15MM 24VDC WIRE |
1,001 |
|
Техническая документация |
CFM-50V | Tray | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 0.82 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.083 lb (37.65 g) |
|
|
CFM-5015V-258-330-11FAN AXIAL 50X15MM 24VDC WIRE |
3,113 |
|
Техническая документация |
CFM-50V | Tray | Obsolete | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.23 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.083 lb (37.65 g) |
|
ME92251V3-000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
3,564 |
|
Техническая документация |
MagLev® ME | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 1.3 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.212 lb (96.16 g) |
|
CFM-4010C-265-251-20FAN AXIAL 40X10.5MM 24VDC WIRE |
3,479 |
|
Техническая документация |
CFM-40C | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.1dB(A) | 1.2 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
HA30101V3-1000U-G9912VDC FAN 30X10MM ALARM |
1,704 |
|
Техническая документация |
HA | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.1dB(A) | 0.3 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
