Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4020-12LSSFAN AXIAL 40X20MM 12VDC WIRE |
1,065 |
|
Техническая документация |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 24.1dB(A) | 980 mW | 5150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-12MSSFAN AXIAL 40X20MM 12VDC WIRE |
3,536 |
|
Техническая документация |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 30.3dB(A) | 1.2 W | 6450 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-24LSSFAN AXIAL 40X20MM 24VDC WIRE |
1,486 |
|
Техническая документация |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 24.1dB(A) | 1.2 W | 5150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
|
OD4020-24MSSFAN AXIAL 40X20MM 24VDC WIRE |
3,823 |
|
Техническая документация |
OD4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.0 CFM (0.224m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 30.0dB(A) | 1.7 W | 6475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | - |
|
CFM-8015CF-240-363FAN AXIAL 80X15.4MM 24VDC WIRE |
1,656 |
|
Техническая документация |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.2dB(A) | 5.04 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8015CF-140-363FAN AXIAL 80X15.4MM 12VDC WIRE |
3,813 |
|
Техническая документация |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.2dB(A) | 6.12 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
03510SS-12M-AA-00FAN AXIAL 35X10MM 12VDC WIRE |
1,098 |
|
Техническая документация |
03510SS | Box | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 22.4dB(A) | 600 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
03510SS-05M-AA-00FAN AXIAL 35X10MM 5VDC WIRE |
1,052 |
|
Техническая документация |
03510SS | Box | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 22.4dB(A) | 600 mW | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-2010CF-1170-292-22DC AXIAL FAN, 20 MM SQUARE, 10 M |
4,965 |
|
Техническая документация |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 10.30mm | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.2dB(A) | 960 mW | 17000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025CF-035-274FAN AXIAL 60X25.4MM 5VDC WIRE |
4,670 |
|
Техническая документация |
CFM-60CF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 27.5dB(A) | 1.95 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025CF-150-351FAN AXIAL 60X25.4MM 12VDC WIRE |
3,455 |
|
Техническая документация |
CFM-60CF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.2dB(A) | 3.48 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

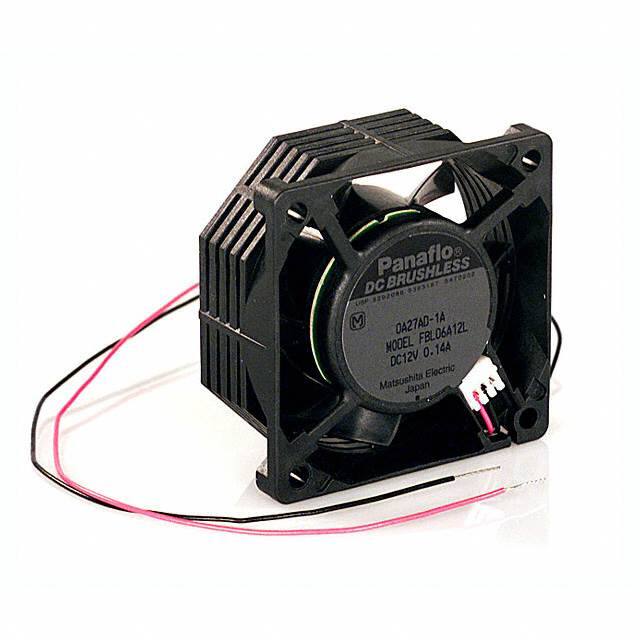

FBL06A12L1AFAN AXIAL 60X25.5MM 12VDC WIRE |
2,267 |
|
Техническая документация |
FBL | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.2 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|
FBL06A12M1AFAN AXIAL 60X25.5MM 12VDC WIRE |
3,969 |
|
Техническая документация |
FBL | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 16.6 CFM (0.465m³/min) | 0.155 in H2O (38.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.44 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|

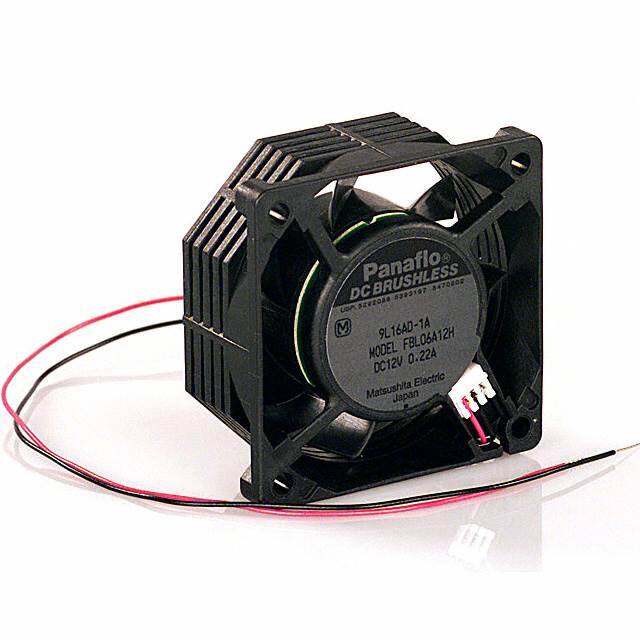

FBL06A12H1AFAN AXIAL 60X25.5MM 12VDC WIRE |
4,044 |
|
Техническая документация |
FBL | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.86 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|

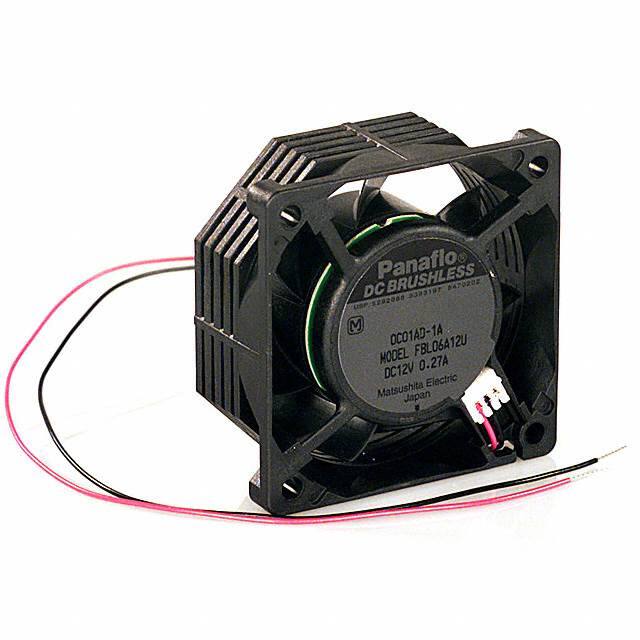

FBL06A12U1AFAN AXIAL 60X25.5MM 12VDC WIRE |
3,314 |
|
Техническая документация |
FBL | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 15.9 CFM (0.445m³/min) | 0.185 in H2O (46.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 42.0dB | 3.24 W | - | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.198 lb (89.81 g) |
|

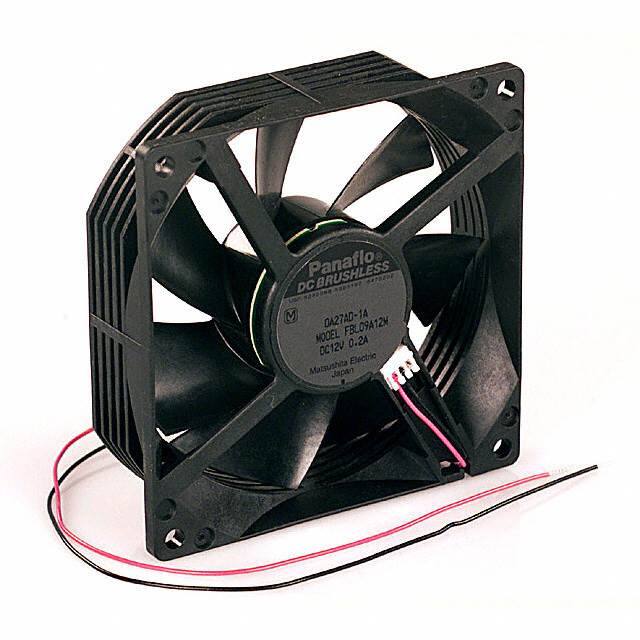

FBL09A12M1AFAN AXIAL 92X25.5MM 12VDC WIRE |
3,437 |
|
Техническая документация |
FBL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 1.8 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.243 lb (110.22 g) |
|

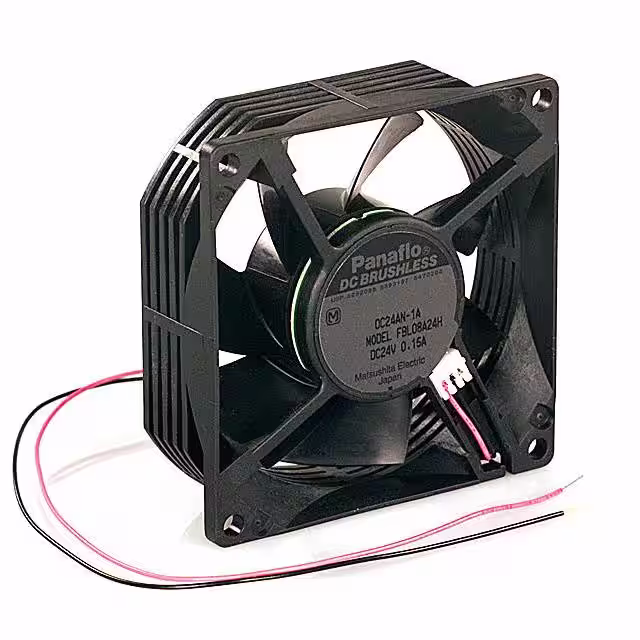

FBL08A24H1AFAN AXIAL 80X25.5MM 24VDC WIRE |
2,247 |
|
Техническая документация |
FBL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.52 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.22 lb (99.79 g) |
|
CFM-6010V-130-205-11FAN AXIAL 60X10MM 12VDC WIRE |
3,922 |
|
Техническая документация |
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.080 in H2O (20.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.5dB(A) | 680 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
|
|
CFM-6010V-135-250-11FAN AXIAL 60X10MM 12VDC WIRE |
3,869 |
|
Техническая документация |
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 14.3 CFM (0.400m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 1.05 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
|
|
CFM-6010V-140-285-11FAN AXIAL 60X10MM 12VDC WIRE |
2,580 |
|
Техническая документация |
CFM-60V | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 1.5 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
