Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

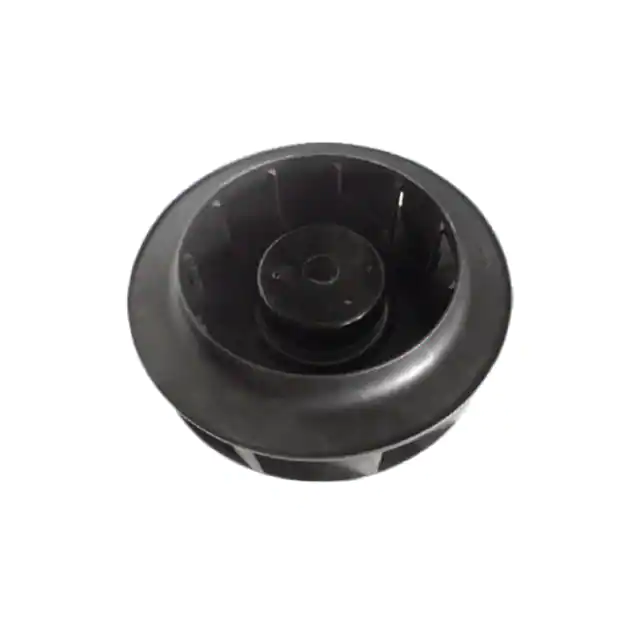

MSI2577H48B1+7-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
2,300 |
|
Техническая документация |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 76.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 4.5 lbs (2 kg) |
|
KFB2348HHU-EPFAN IMP MTRZD 225X99MM 48VDC |
2,119 |
|
Техническая документация |
KFB | Box | Active | 48VDC | Round - 225mm Dia | 99.00mm | 735.1 CFM (20.58m³/min) | 1.990 in H2O (495.7 Pa) | Ball | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 105.6 W | 2600 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL, VDE | 2.6 lbs (1.2 kg) |
|
R1G133-AA65-36FAN IMP MTRZD 133X91MM 48VDC |
2,698 |
|
Техническая документация |
R1G133AA | Bulk | Active | 48VDC | Round - 133mm Dia | 91.00mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3900 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 140°F (-25 ~ 60°C) | CCC, CSA, UL | - |
|
F250A3-072-D0730FAN IMP MTRZD 250X99.8MM 48VDC |
2,134 |
|
Техническая документация |
F250 | Bulk | Active | 48VDC | Round - 250mm Dia | 99.80mm | 862.0 CFM (24.14m³/min) | 2.980 in H2O (742.3 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 81.0dB | 163.2 W | 3100 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 5.3 lbs (2.4 kg) |
|

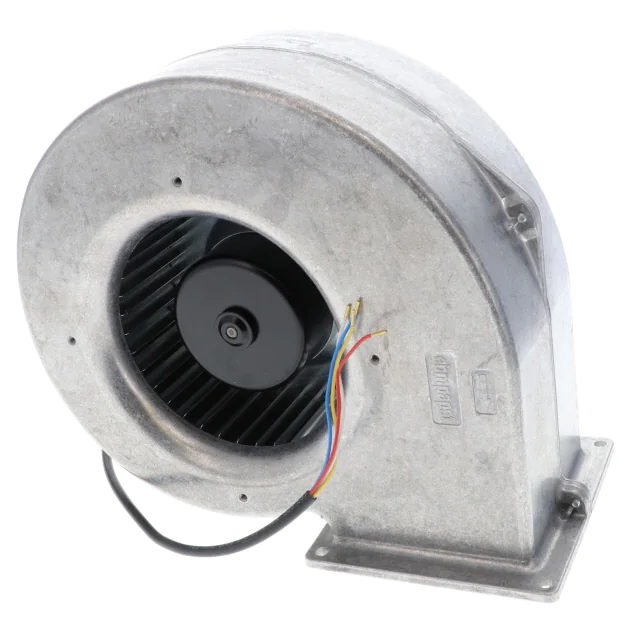

G1G140-AV17-02FAN BLOWER 226.3X130.0MM 24VDC |
1,575 |
|
Техническая документация |
G1G140 | Bulk | Active | 24VDC | Rectangular/Rounded - 226.3mm L x 261.5mm H | 130.0mm | - | - | Ball | Blower | PWM Control, Speed Sensor (Tach) | - | 54 W | 1750 RPM | 4 Wire Leads with Splice Terminals | IP22 | -13 ~ 140°F (-25 ~ 60°C) | EAC | - |
|

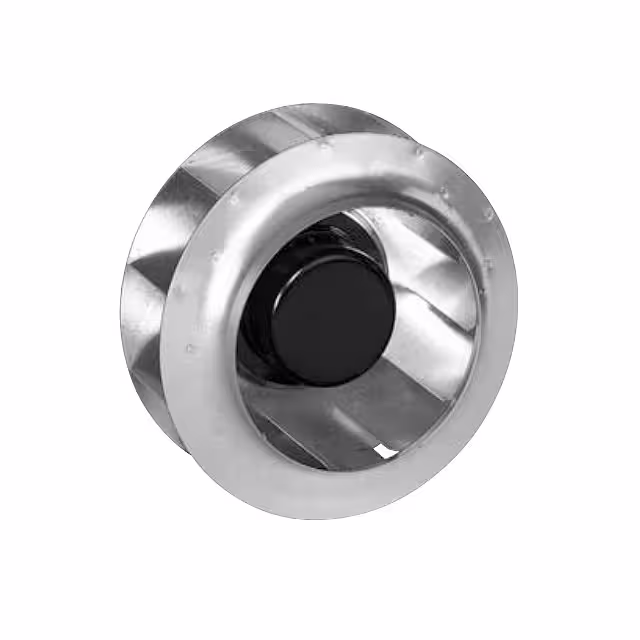

R1G280-AE45-52FAN IMP MTRZD 281X125.0MM 24VDC |
2,462 |
|
Техническая документация |
R1G280 | Bulk | Active | 24VDC | Round - 281mm Dia | 125.0mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 95 W | 1710 RPM | 4 Wire Leads with Splice Terminals | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
CHA4012BH-W20D12V 0.18A 40*20 BALL 2; 10.98CFM |
4,302 |
|
Техническая документация |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CHA8012BX-25B12V 0.37A 80*25 BALL 2; 46.46CFM |
4,155 |
|
Техническая документация |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFB0424MDFAN AXIAL 40X20MM 24VDC WIRE |
4,474 |
|
Техническая документация |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.2 CFM (0.202m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.2 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
|
EFB0412HHD-R00FAN AXIAL 40X20MM 12VDC WIRE |
4,646 |
|
Техническая документация |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.5dB(A) | 1.2 W | 8200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
|
BSB03505HP-00BLOWER SQUARE 35X5.5MM 5VDC PWM |
4,807 |
|
Техническая документация |
BSB | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 5.50mm | 2.1 CFM (0.059m³/min) | 1.181 in H2O (294.2 Pa) | Sleeve | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 1 W | 11000 RPM | 4 Position Rectangular Connector | - | 32 ~ 140°F (0 ~ 60°C) | - | - |
|
|
09225SA-24P-EA-D0FAN AXIAL 92X25MM 24VDC WIRE |
1,099 |
|
Техническая документация |
09225SA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 59.0 CFM (1.65m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Auto Restart | 37.0dB | 2.64 W | 3550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
08025SA-12N-AT-D0FAN AXIAL 80X25MM 12VDC WIRE |
4,564 |
|
Техническая документация |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB | 1.68 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CBM-4020B-145-305DC BLOWER, 40 MM SQUARE, 20 MM, |
2,075 |
|
Техническая документация |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 2.0 CFM (0.056m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Blower | Auto Restart | 30.5dB(A) | 0.48 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AFB0405HHA-AF00FAN AXIAL 40X10MM BALL 5VDC WIRE |
2,078 |
|
Техническая документация |
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.5dB(A) | 450 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
|
CBM-4020B-160-367-20DC BLOWER, 40 MM SQUARE, 20 MM, |
3,166 |
|
Техническая документация |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 20.00mm | 2.7 CFM (0.076m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 36.7dB(A) | 0.96 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530BF-120-282DC BLOWER, 75.7 X 75.7 X 30 MM, |
4,596 |
|
Техническая документация |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Blower | Auto Restart | 28.2dB(A) | 0.84 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FFB0424VHN-R00FAN AXIAL 40X28MM 24VDC WIRE |
4,484 |
|
Техническая документация |
FFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 2.4 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
CBM-5020B-160-360-20DC BLOWER, 49.2 X 49.8 X 20 MM, |
3,633 |
|
Техническая документация |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 6.1 CFM (0.171m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 36.0dB(A) | 3.24 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
F6025X24B-RHRFAN AXIAL 60X25MM 24VDC WIRE |
1,415 |
|
Техническая документация |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
