Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DC0401005V2B-BT0FAN 40X10MM 5VDC PWM/TACH |
2,110 |
|
Техническая документация |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 2 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
109P0412K3023FAN AXIAL 40X28MM 12VDC WIRE |
3,774 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 20.8 CFM (0.582m³/min) | 1.365 in H2O (340.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 6.6 W | 15500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
06025SA-12S-AU-D660X60X25MM, 12VDC, 7,000 RPM, 35 |
3,576 |
|
Техническая документация |
06025SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.5dB | 7.2 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
BFB0412HHA-A117FAN BLOWER 40X10MM 12VDC |
2,549 |
|
Техническая документация |
BFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | Blower | Locked Rotor Protection | 34.5dB(A) | 960 mW | 8500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.027 lb (12.25 g) |
|

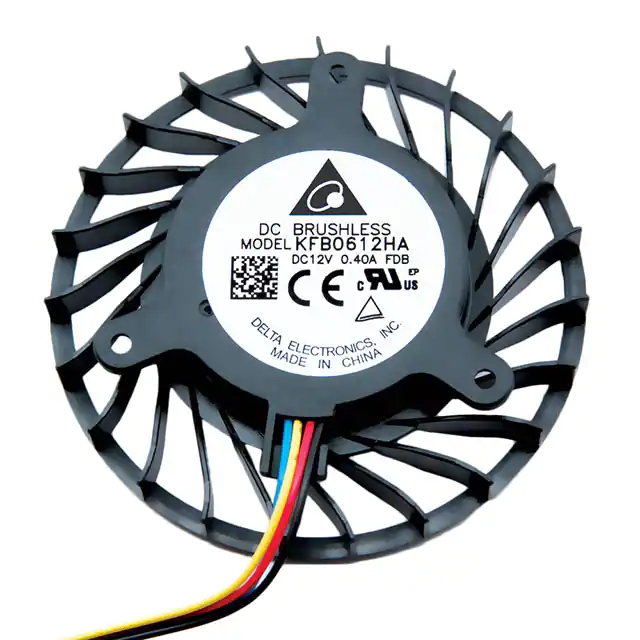

KFB0612HAFDBFAN IMP MTR FRAMEL 60X12MM 12VDC |
1,021 |
|
Техническая документация |
KFB - Frameless | Box | Active | 12VDC | Round - 60mm Dia | 12.00mm | 9.2 CFM (0.258m³/min) | 0.634 in H2O (157.9 Pa) | Ball | Motorized Impellers, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 36.7dB(A) | 1.8 W | 3300 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 212°F (-20 ~ 100°C) | CE, cURus, TUV | 0.061 lb (27.67 g) |
|
9GA0412H7001FAN AXIAL 40X15MM 12VDC WIRE |
4,455 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.1 CFM (0.199m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 720 mW | 7300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.062 lb (28.12 g) |
|
|
109P0424H3013FAN AXIAL 40X28MM 24VDC WIRE |
2,214 |
|
Техническая документация |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.414 in H2O (102.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.28 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9GA0412P7G001FAN AXIAL 40X15MM 12VDC WIRE |
4,705 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 12.7 CFM (0.356m³/min) | 0.770 in H2O (191.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 2.04 W | 13100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.062 lb (28.12 g) |
|
F8025M05B-FSR-EMFAN AXIAL 80X25MM BALL 5VDC WIRE |
3,885 |
|
Техническая документация |
F8025 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 26.0dB(A) | - | 2100 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
AFB0412SHB-F00FAN AXIAL 40X15MM 12VDC WIRE |
4,310 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 14.8 CFM (0.414m³/min) | 0.601 in H2O (149.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 3 W | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
AFB0724M-AFAN AXIAL 70X25.4MM 24VDC WIRE |
4,895 |
|
Техническая документация |
AFB | Tray | Active | 24VDC | Square - 70mm L x 70mm H | 25.40mm | 28.9 CFM (0.809m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 31.5dB(A) | 2.16 W | 3100 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
|
9GA0412P6F001FAN AXIAL 40X20MM 12VDC WIRE |
2,548 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 8000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
E1225E12B1+6-FSRFAN AXIAL 120X25MM 12VDC WIRE |
1,052 |
|
Техническая документация |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
11925SA-24P-EAD-0FAN AXIAL 119X25MM 24VDC WIRE |
4,620 |
|
Техническая документация |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 102.0 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | Auto Restart | 40.5dB | 4.08 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
PF80252V1-1000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,943 |
|
Техническая документация |
MagLev® PF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.7dB(A) | 4.32 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|

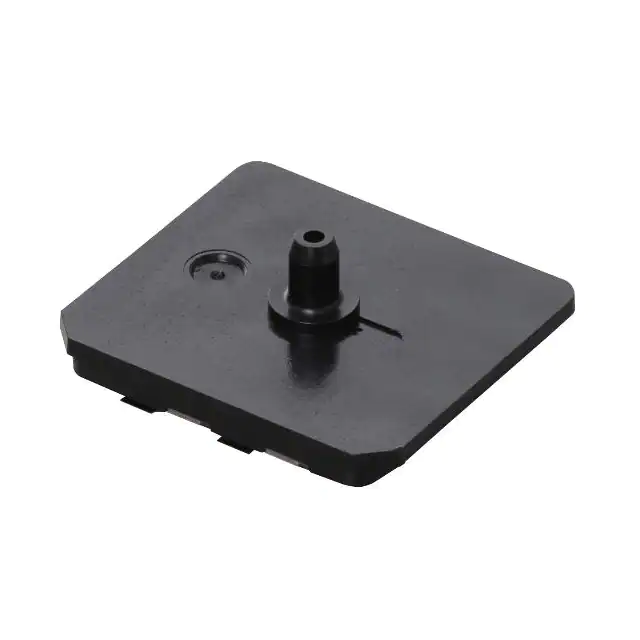

MZB3004T04FAN MIC BLOWR 21X7.9MM 8-19.5VDC |
3,854 |
|
Техническая документация |
- | Tray | Active | 8 ~ 19.5VDC | Rectangular - 21mm L x 19mm H | 7.90mm | 0.006 CFM (0.0002m³/min) | 200.737 in H2O (50000.0 Pa) | - | Micro Blower | - | - | 1.2 W | - | 2 Terminals | - | 32°F ~ 113°F (0°C ~ 45°C) | - | - |
|
|
9GA0405P6H001FAN AXIAL 40X20MM BALL 5VDC WIRE |
1,441 |
|
Техническая документация |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.770 in H2O (191.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 1.75 W | 12400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.077 lb (34.93 g) |
|
|
OD2510-24HBThermal Products |
2,643 |
|
Техническая документация |
OD2510 | Bulk | Active | 24VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 29.2dB(A) | 1.6 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
F1238M24B-FSRFAN AXIAL 119X38MM 24VDC WIRE |
3,892 |
|
Техническая документация |
F1238-S | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.0dB(A) | - | 2300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.536 lb (243.13 g) |
|
FFB0412VHN-TP03FAN AXIAL 40X28MM 12VDC WIRE |
2,535 |
|
Техническая документация |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 1.92 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
