Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4394MFAN AXIAL 119X32MM 24VDC TERM |
1,327 |
|
Техническая документация |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 82.0 CFM (2.30m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.6 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
OD1238-12MBVXE10AFAN 12VDC 120X38MM PWM/TACH |
4,482 |
|
Техническая документация |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.2dB(A) | 34.2 W | 4450 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
9WPA0812S400180X25MM 12VDC IP68 HIGH PERF TAC |
3,428 |
|
Техническая документация |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
OD1238-48H3BVXE10AFAN 48VDC 120X38MM PWM/TACH |
1,739 |
|
Техническая документация |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 285.2 CFM (7.99m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 64.6dB(A) | 77.7 W | 5980 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9CR0812H801FAN AXIAL DUAL 80X80MM 12VDC |
2,977 |
|
Техническая документация |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 140.0 CFM (3.92m³/min) | 1.610 in H2O (401.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 68.0dB(A) | 43.2 W | 7000 Front, 4600 Rear | 3 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
9LG0624P4JD00160X25MM 24V, HIGH PERF LONG LIFE |
2,894 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
19032038AFAN AXIAL 119.1X39.1MM MD48B3 |
3,188 |
|
Техническая документация |
Muffin XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 5.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.3 lbs (589.7 g) |
|
|
9WPA0412H3001FAN AXIAL 40X28MM 12VDC WIRE |
4,494 |
|
Техническая документация |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 4.1 W | 18500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WPA0424H30011FAN AXIAL 40X28MM 24VDC WIRE |
2,705 |
|
Техническая документация |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 4.1 W | 18500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
CFR3B5X-S-PFAN BLOWER CF 99.2X23.5MM 5VDC/T |
4,654 |
|
Техническая документация |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 99.2mm L x 23mm H | 23.50mm | 13.9 CFM (0.389m³/min) | - | Ball | Blower, Cross Flow | - | 34.0dB | 1.3 A | 8500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR3B5XFAN BLOWER CF 99.2X23.5MM 5VDC |
1,337 |
|
Техническая документация |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 99.2mm L x 23mm H | 23.50mm | 13.9 CFM (0.389m³/min) | - | Ball | Blower, Cross Flow | - | 34.0dB | 1.3 A | 8500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR3B12XFAN BLOWER CF 99.2X23.5MM 12VDC |
3,726 |
|
Техническая документация |
CFR3B | Tape & Box (TB) | Active | 12VDC | Rectangular - 99.2mm L x 23mm H | 23.50mm | 13.9 CFM (0.389m³/min) | - | Ball | Blower, Cross Flow | - | 34.0dB | 1.3 A | 8500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR3B5X-SFAN BLOWER CF 99.2X23.5MM 5VDC/T |
1,618 |
|
Техническая документация |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 99.2mm L x 23mm H | 23.50mm | 13.9 CFM (0.389m³/min) | - | Ball | Blower, Cross Flow | - | 34.0dB | 1.3 A | 8500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
9SG1224H101FAN AXIAL 119X38MM 24VDC WIRE |
2,440 |
|
Техническая документация |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 142.0 CFM (3.98m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 11 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
5218NNFAN AXIAL 127X38MM 48VDC WIRE |
4,390 |
|
Техническая документация |
5200N | Bulk | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 127.0 CFM (3.56m³/min) | - | Ball | Tubeaxial | - | 46.0dB(A) | 6.5 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|

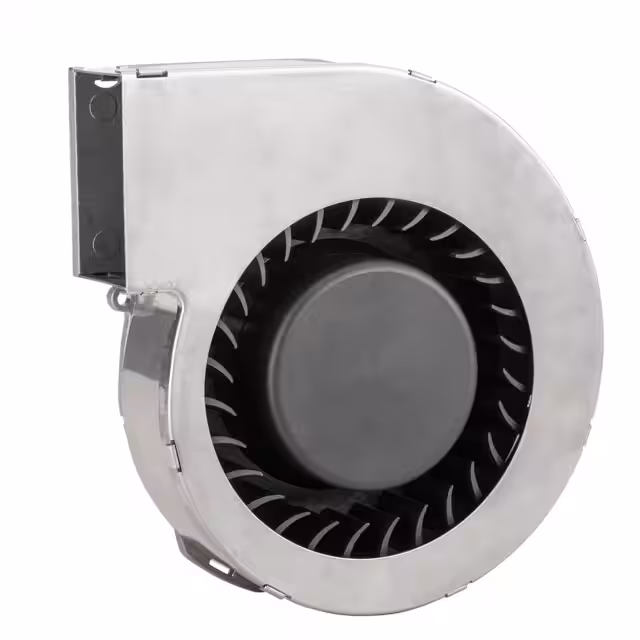

P1232Y48BALB2A-28FAN BLOWER 120X32MM 48VDC WIRE |
4,326 |
|
Техническая документация |
TITAN | Bulk | Active | 48VDC | Rectangular/Round - 120mm L x 120mm H | 32.00mm | 42.9 CFM (1.22m³/min) | 2.030 in H2O (505.6 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 61.6dB(A) | 19.2 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
4418/12MLFAN AXIAL 119X38MM 48VDC WIRE |
4,870 |
|
Техническая документация |
4400 | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 40.0dB(A) | 3.2 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.604 lb (273.97 g) |
|
|
11938MA-24P-EA-D0FAN AXIAL 119X38.4MM 24VDC WIRE |
3,847 |
|
Техническая документация |
11938MA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 181.2 CFM (5.13m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Auto Restart | 59.5dB(A) | 22.4 W | 4700 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
ASFN12372FAN AXIAL 119X25.5MM 24VDC WIRE |
4,972 |
|
Техническая документация |
ASFN1 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 77.0 CFM (2.16m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 31.0dB(A) | 3.12 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UR | 0.397 lb (180.08 g) |
|
|
9GV1224P1H03120X38MM 24V,GUIDE VANE DC LCKRT |
2,300 |
|
Техническая документация |
- | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | - | 5200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
