Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-9238BF-165-535-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,129 |
|
Техническая документация |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 8.4 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

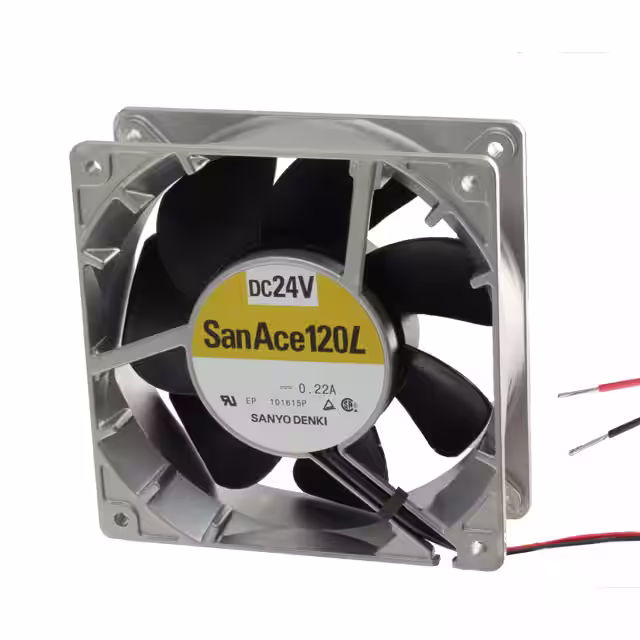

9GL1224H102FAN AXIAL 119X38MM 24VDC WIRE |
3,120 |
|
Техническая документация |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9WP0624G4D01FAN AXIAL 60X25MM 24VDC WIRE |
3,338 |
|
Техническая документация |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 3.12 W | 5600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
CFM-9238BF-280-585-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
3,983 |
|
Техническая документация |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.5dB(A) | 13.68 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GL1212H1D01FAN AXIAL 119X38MM 12VDC WIRE |
2,390 |
|
Техническая документация |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 4.56 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
CFM-9238BF-195-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,173 |
|
Техническая документация |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.8dB(A) | 21.6 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB1012M-AF00FAN BLOWER 97.2X33MM 12VDC WIRE |
1,999 |
|
Техническая документация |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 22.6 CFM (0.633m³/min) | 0.893 in H2O (222.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 52.5dB(A) | 6.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.366 lb (166.01 g) |
|
BFB1012HH-AFAN BLOWER 97.2X33MM 12VDC WIRE |
4,669 |
|
Техническая документация |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 34.3 CFM (0.960m³/min) | 1.564 in H2O (389.6 Pa) | Ball | Blower | Locked Rotor Protection | 57.0dB(A) | 15 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
9GL1224G1D01FAN AXIAL 119X38MM 24VDC WIRE |
1,037 |
|
Техническая документация |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 49.0dB(A) | 12 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
OD1225-48HBVXEDC FAN - 48V 120 X 120 X 25MM - |
1,193 |
|
Техническая документация |
OD1225 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart | 57.3dB(A) | 14.4 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, UR | - |
|

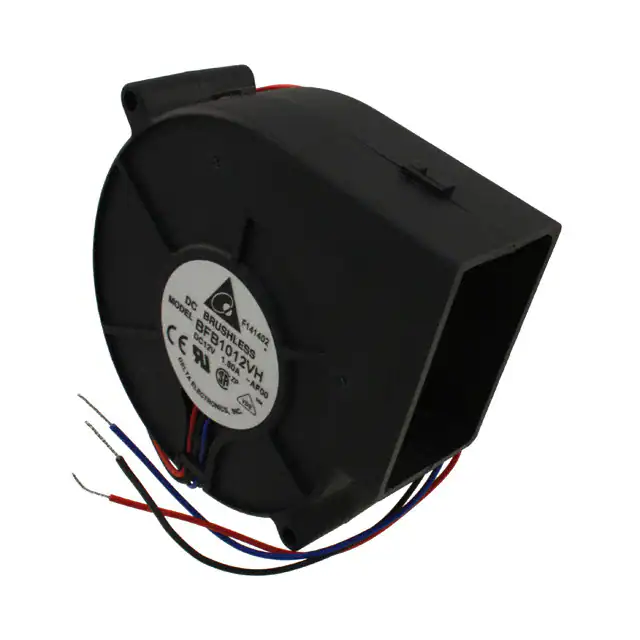

BFB1012VH-AF00FAN BLOWER 97.2X33MM 12VDC WIRE |
3,821 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 38.0 CFM (1.06m³/min) | 1.952 in H2O (486.2 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 18 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
9GL1248H101FAN AXIAL 119X38MM 48VDC WIRE |
1,135 |
|
Техническая документация |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 5.28 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9WP0824S4D01FAN AXIAL 80X25MM 24VDC WIRE |
2,307 |
|
Техническая документация |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9WP0824S401FAN AXIAL 80X25MM 24VDC WIRE |
4,850 |
|
Техническая документация |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 2.4 W | 3400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
OD1238-48HHB10AZX48VDC 120X120X38MM REVERSIBLE FL |
3,937 |
|
Техническая документация |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 146.0 CFM (4.09m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 50.0dB(A) | 8.2 W | 3590 RPM | 4 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
9BMB24H201FAN BLOWER 97.1X33MM 24VDC WIRE |
3,552 |
|
Техническая документация |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 13.2 W | 4850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|
|
12038VA-24R-EL-E0FAN AXIAL 120X38MM 24VDC WIRE |
4,107 |
|
Техническая документация |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 66.0dB | 35.5 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
9G1212M102FAN AXIAL 119X38MM 12VDC WIRE |
2,390 |
|
Техническая документация |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.52 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
CFM-9238BF-295-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
3,342 |
|
Техническая документация |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | Tubeaxial | Auto Restart | 62.8dB(A) | 20.64 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9RA1212H1002120X38MM 12VDC |
1,455 |
|
Техническая документация |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
