Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD8032-24HHBFAN AXIAL 80.5X32MM 24VDC WIRE |
4,150 |
|
Техническая документация |
OD8032 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 55.4 CFM (1.55m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | - | 44.0dB | 4.32 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | 0.238 lb (107.95 g) |
|
109R0624G402FAN AXIAL 60X25MM 24VDC WIRE |
3,580 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.12 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
F8025H12B-FHR-EMFAN AXIAL 80X25MM 12VDC WIRE |
4,984 |
|
Техническая документация |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 32.0dB(A) | - | 3200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
G6015X24B1+6-RHR-WSFAN AXIAL 60X15.3MM 24VDC WIRE |
3,595 |
|
Техническая документация |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | - | 5800 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
G6015M24B-RHR-EMFAN AXIAL 60X15MM 24VDC WIRE |
4,574 |
|
Техническая документация |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.0 CFM (0.448m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | - | 4000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
E1225H12B-FSRFAN AXIAL 120X25MM 12VDC WIRE |
2,463 |
|
Техническая документация |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 82.0 CFM (2.30m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 40.0dB(A) | - | 2600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|

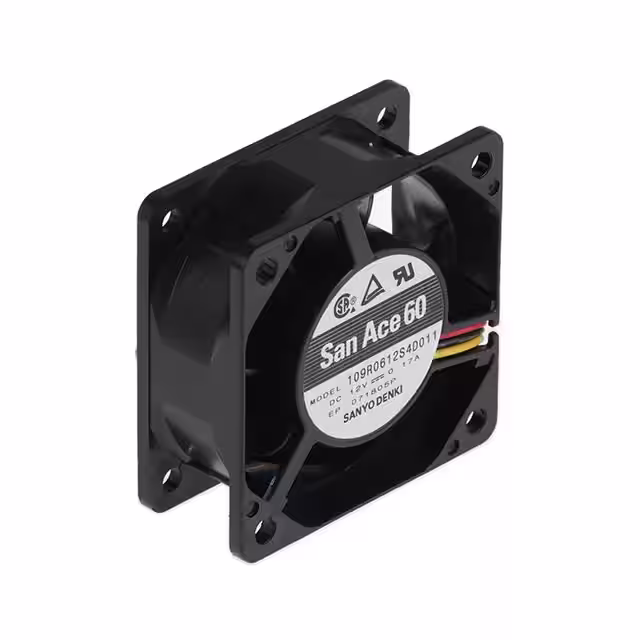

109R0612S4D011FAN AXIAL 60X25MM 12VDC WIRE |
2,228 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.04 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0612D4D01FAN AXIAL 60X25MM 12VDC WIRE |
3,763 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.52 W | 5150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|

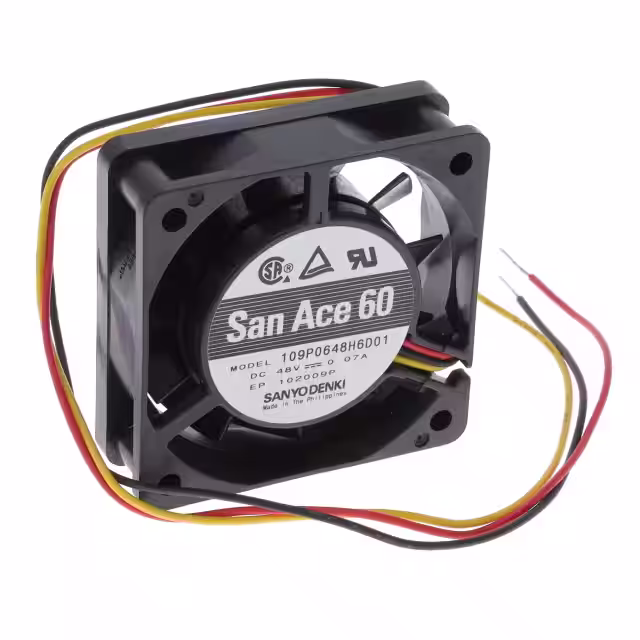

109P0648H6D01FAN AXIAL 60X20MM 48VDC WIRE |
100 |
|
Техническая документация |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 20.00mm | 19.4 CFM (0.543m³/min) | 0.212 in H2O (52.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 3.36 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
OD7025-12HBXC01AFAN AXIAL 70X25MM 12VDC WIRE |
2,481 |
|
Техническая документация |
OD7025 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.5dB | 9.6 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.198 lb (89.81 g) |
|
|
MD4028X12B1+6-RSRFAN AXIAL 40X28MM 12VDC WIRE |
2,869 |
|
Техническая документация |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 4 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
F6025E12B-RHR-EM3FAN AXIAL 60X25MM 12VDC WIRE |
4,130 |
|
Техническая документация |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
09225VA-12K-AA-00FAN AXIAL 92X25MM 12VDC WIRE |
1,892 |
|
Техническая документация |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.5dB(A) | 2.16 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0624J401FAN AXIAL 60X25MM 24VDC WIRE |
4,648 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.76 W | 7600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
06038RE-12S-GT-00FAN AXIAL 60X38MM 12VDC WIRE |
3,989 |
|
Техническая документация |
06038RE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 59.0 CFM (1.65m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.0dB(A) | 15.6 W | 11000 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cULus, VDE | - |
|

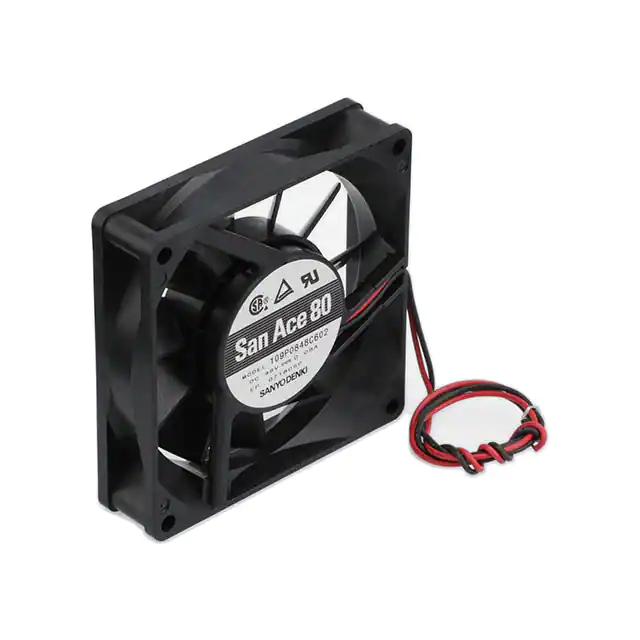

109P0848C602FAN AXIAL 80X20MM 48VDC WIRE |
3,103 |
|
Техническая документация |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 20.00mm | 37.8 CFM (1.06m³/min) | 0.185 in H2O (46.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.84 W | 3700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

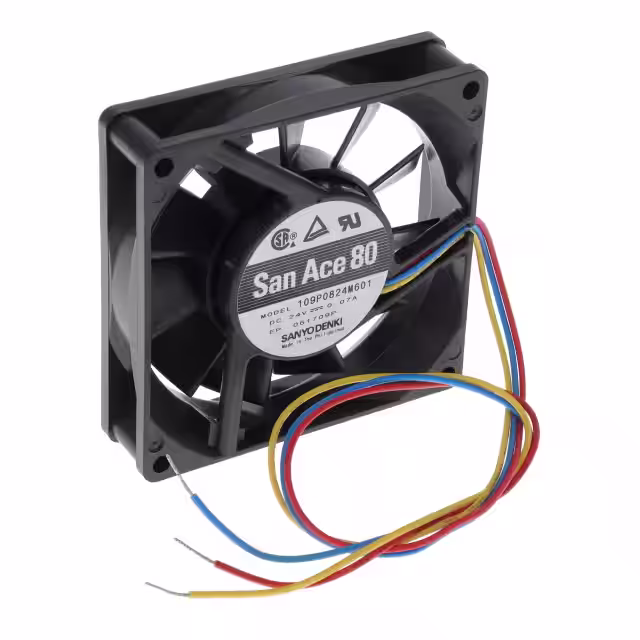

109P0824M601FAN AXIAL 80X20MM 24VDC WIRE |
1,131 |
|
Техническая документация |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 23.7 CFM (0.664m³/min) | 0.075 in H2O (18.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.68 W | 2300 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0824H601FAN AXIAL 80X20MM 24VDC WIRE |
4,994 |
|
Техническая документация |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.88 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
G1225E24B1-FSRFAN AXIAL 120X25MM 24VDC WIRE |
4,636 |
|
Техническая документация |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2700 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
|
09225VA-24Q-AT-00FAN AXIAL 92X25MM 24VDC WIRE |
2,675 |
|
Техническая документация |
09225VA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.0dB(A) | 9.12 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
