Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0402824M2B-2T0FAN 40X28MM 24VDC |
600 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 6.24 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
BFB04512MD-R00FAN BLOWER 45X20MM 12VDC WIRE |
1,199 |
|
Техническая документация |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 20.00mm | 4.2 CFM (0.118m³/min) | 0.269 in H2O (67.0 Pa) | Ball | Blower | Locked Rotor Sensor | 21.0dB(A) | 840 mW | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.038 lb (17.24 g) |
|
|
DC0402824U2B-BT0FAN 40X28MM 24VDC PWM/TACH |
541 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 15.36 W | 15000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
OD1225-24HBXEDC FAN - 24V 120 X 120 X 25MM - |
169 |
|
Техническая документация |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 133.8 CFM (3.79m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Auto Restart | 55.2dB(A) | 21 W | 4950 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
9GA0312J3001FAN AXIAL 38X28MM 12VDC WIRE |
109 |
|
Техническая документация |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.1 CFM (0.563m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.5dB(A) | 6.2 W | 23500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
UB3C3-500TCFAN BLOWER 12X3MM VAPO 3VDC WIRE |
488 |
|
Техническая документация |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 26.0dB(A) | 100 mW | 15500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
BFB0512LDFAN BLOWER 50X20MM 12VDC WIRE |
242 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.5 CFM (0.126m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Blower | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.078 lb (35.38 g) |
|
|
DC0803224M2B-2T0FAN 80X32MM 24VDC |
489 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.08 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
11925SA-24Q-ALD-0FAN AXIAL 119X25MM 24VDC WIRE |
160 |
|
Техническая документация |
11925SA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 113.0 CFM (3.16m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.0dB | 4.8 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

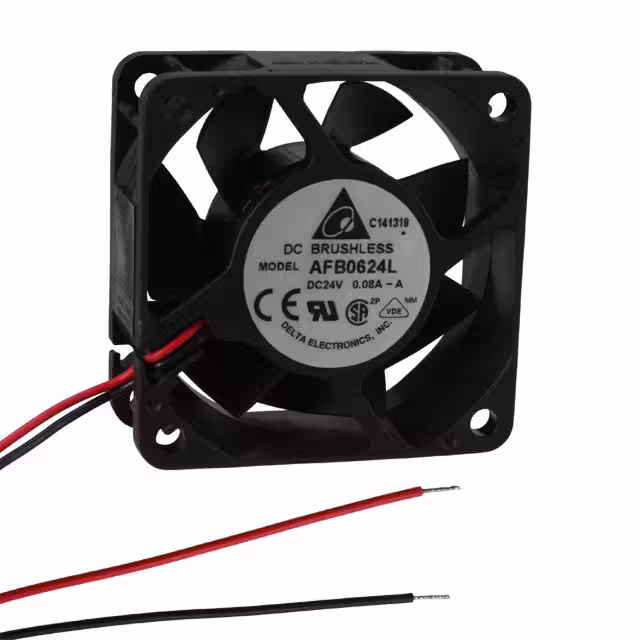

AFB0624L-AFAN AXIAL 60X25.4MM 24VDC WIRE |
180 |
|
Техническая документация |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.113 in H2O (28.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.5dB(A) | 1.44 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
9GA0412G301FAN AXIAL 40X28MM 12VDC WIRE |
114 |
|
Техническая документация |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 4.68 W | 16500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
|
CBM-7530BF-150-493-20DC BLOWER, 75.7 X 75.7 X 30 MM, |
194 |
|
Техническая документация |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 17.8 CFM (0.498m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 8.16 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MFC0251V3-000U-A99Thermal Products |
3,567 |
|
Техническая документация |
MF | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 34.0dB(A) | 1.68 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
DC0803212H2B-BT0FAN AXIAL 80X32MM 12VDC WIRE |
489 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 6 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.071 lb (32.21 g) |
|
|
CFM-9225BG-150-502-22DC AXIAL FAN, 92 MM SQUARE, 25 M |
187 |
|
Техническая документация |
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 88.2 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 50.2dB(A) | 6.84 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FFB0812VHEFAN AXIAL 80X38MM 12VDC WIRE |
113 |
|
Техническая документация |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 57.2 CFM (1.60m³/min) | 0.424 in H2O (105.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.56 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
9GA0312K3001FAN AXIAL 38X28MM 12VDC WIRE |
104 |
|
Техническая документация |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 21.2 CFM (0.594m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 7.4 W | 25000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
|
CFM-6025BG68-270-434DC AXIAL FAN, 60 MM SQUARE, 25 M |
171 |
|
Техническая документация |
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 43.4dB(A) | 6 W | 7000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GA0524A7002FAN AXIAL 52X15MM 24VDC WIRE |
126 |
|
Техническая документация |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.237 in H2O (59.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 6300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.089 lb (40.37 g) |
|
|
EFB0424HD-CP5AXIAL 40X40X20MM 24V PWM IP55 |
336 |
|
Техническая документация |
EFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.251 in H2O (62.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.2 W | 7600 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
