Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8025V-226-280-20FAN AXIAL 80X25MM 24VDC WIRE |
294 |
|
Техническая документация |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.1 CFM (0.927m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 1.16 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|

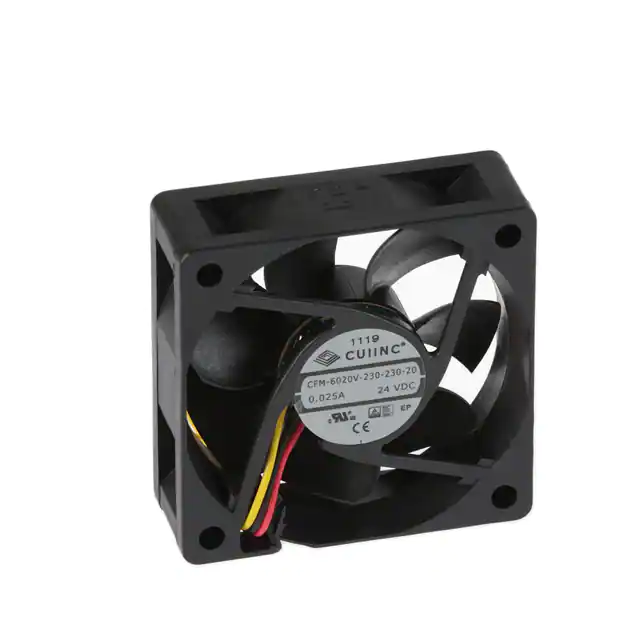

CFM-6020V-230-230-20FAN AXIAL 60X20MM 24VDC WIRE |
662 |
|
Техническая документация |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 16.5 CFM (0.462m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 920 mW | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
CFM-4010B-050-195FAN AXIAL 40X10.5MM 5VDC WIRE |
397 |
|
Техническая документация |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart | 19.5dB(A) | 400 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
AUB0824MB-AFAN AXIAL 80X15MM 24VDC WIRE |
168 |
|
Техническая документация |
AUB | Box | Not For New Designs | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.4 CFM (0.879m³/min) | 0.109 in H2O (27.2 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.92 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UR, VDE | - |
|
02510SS-12L-AA-00FAN AXIAL 12VDC WIRE |
701 |
|
Техническая документация |
02510SS | Bulk | Active | 12VDC | - | - | - | - | - | - | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
CFM-6010V-135-250-20FAN AXIAL 60X10MM 12VDC WIRE |
394 |
|
Техническая документация |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 14.3 CFM (0.400m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.0dB(A) | 1.05 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.051 lb (23.13 g) |
|
CFM-8015CF-120-213-20FAN AXIAL 80X15.4MM 12VDC WIRE |
323 |
|
Техническая документация |
CFM-80CF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.3dB(A) | 1.08 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

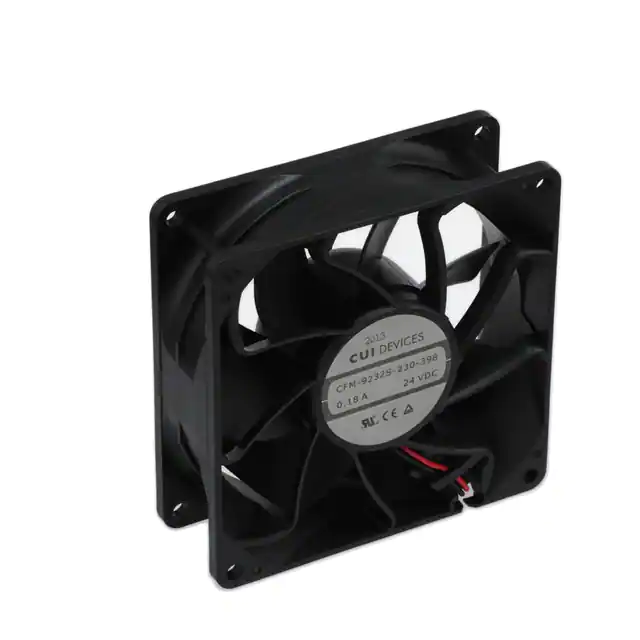

CFM-9232S-230-398FAN AXIAL 92.2X32MM 24VDC WIRE |
505 |
|
Техническая документация |
CFM-92S | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 61.7 CFM (1.73m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 39.9dB(A) | 4.32 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025C-230-330FAN AXIAL 80X25MM 24VDC WIRE |
167 |
|
Техническая документация |
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 2.64 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

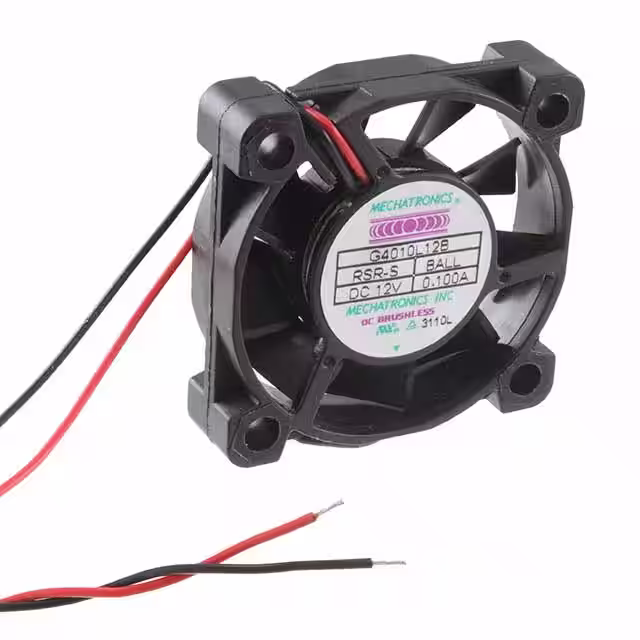

G4010L12B-RSR-SFAN AXIAL 40X10.3MM 12VDC WIRE |
179 |
|
Техническая документация |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
CFM-8015CF-240-363-20FAN AXIAL 80X15.4MM 24VDC WIRE |
303 |
|
Техническая документация |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 43.6 CFM (1.22m³/min) | 0.160 in H2O (39.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.2dB(A) | 5.04 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025CF-150-351-20FAN AXIAL 60X25.4MM 12VDC WIRE |
265 |
|
Техническая документация |
CFM-60CF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.2dB(A) | 3.48 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020S-130-257-20FAN AXIAL 60X20MM 12VDC WIRE |
240 |
|
Техническая документация |
CFM-60S | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.7dB(A) | 960 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
02510SS-12P-AL-00FAN AXIAL 25X10MM 12VDC WIRE |
541 |
|
Техническая документация |
02510SS | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB | 800 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
CFM-9225C-120-269-20FAN AXIAL 92X32MM 12VDC WIRE |
247 |
|
Техническая документация |
CFM-92C | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 33.4 CFM (0.935m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.9dB(A) | 1.08 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020CF-225-273-20FAN AXIAL 80X20MM 24VDC WIRE |
221 |
|
Техническая документация |
CFM-80CF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 24.5 CFM (0.685m³/min) | 0.070 in H2O (17.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.4dB(A) | 1.2 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025C-130-330-20FAN AXIAL 80X25MM 12VDC WIRE |
120 |
|
Техническая документация |
CFM-80C | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020V-070-255-20FAN AXIAL 40X20MM 5VDC WIRE |
181 |
|
Техническая документация |
CFM-40V | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.5dB(A) | 870 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.064 lb (29.03 g) |
|
DC0602512J2B-2T0FAN AXIAL 60X25MM 12VDC WIRE |
148 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 960 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
F6025E24B2-RHRFAN AXIAL 60X25MM 24VDC WIRE |
115 |
|
Техническая документация |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 37.0dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
