Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

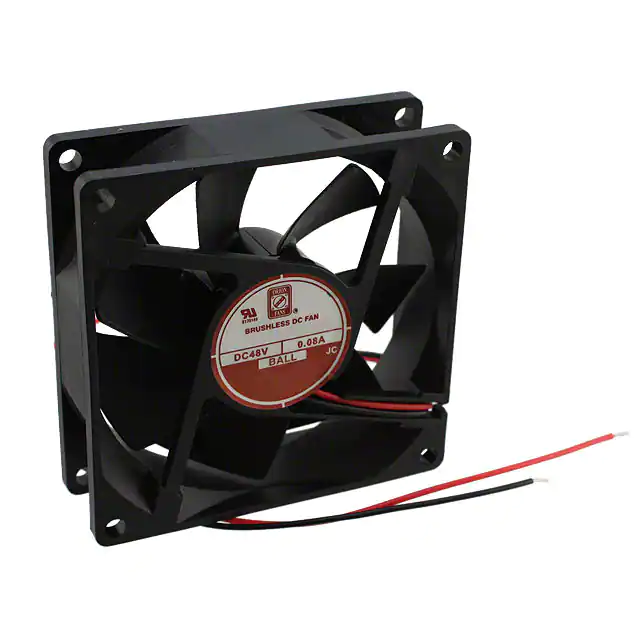

OD8025-48HBFAN AXIAL 80X25MM 48VDC WIRE |
3,642 |
|
Техническая документация |
OD8025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 3.8 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus | 0.191 lb (86.64 g) |
|

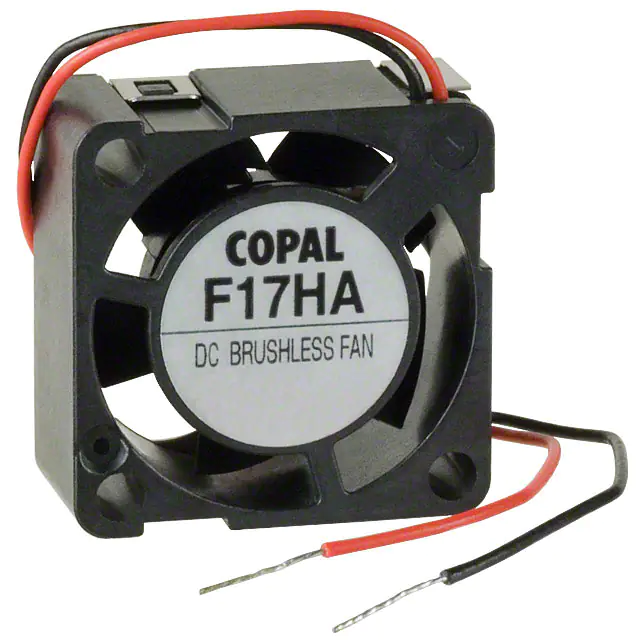

F17HA-05HCFAN AXIAL 17X8MM 5VDC WIRE |
2,834 |
|
Техническая документация |
F17HA | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.636 CFM (0.018m³/min) | 0.068 in H2O (17.0 Pa) | Sleeve | Tubeaxial | - | 15.0dB(A) | 150 mW | 11000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.005 lb (2.27 g) |
|

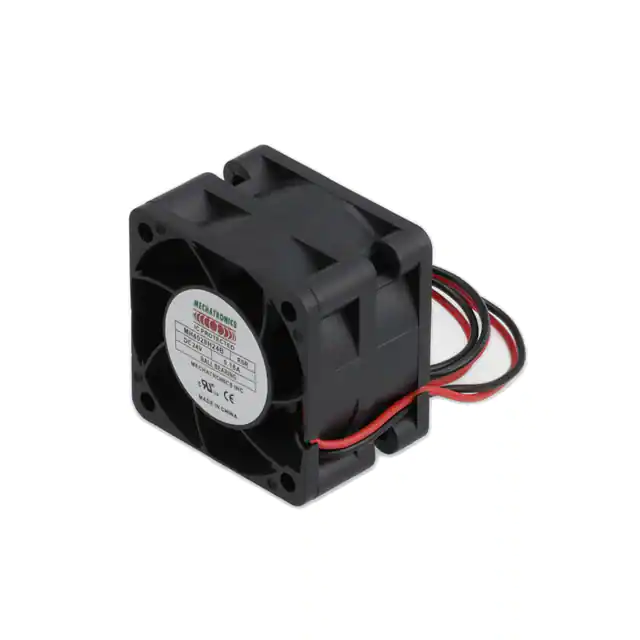

MH4028H24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
422 |
|
Техническая документация |
MH4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 52.0dB(A) | - | 13000 RPM | 2 Wire Leads | - | - | - | 0.089 lb (40.37 g) |
|
OD3510-12MBFAN AXIAL 35X10MM 12VDC WIRE |
561 |
|
Техническая документация |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
OD3510-05LLBFAN AXIAL 35X10MM BALL 5VDC WIRE |
153 |
|
Техническая документация |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | - | 17.0dB(A) | 300 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.02 lb (9.07 g) |
|

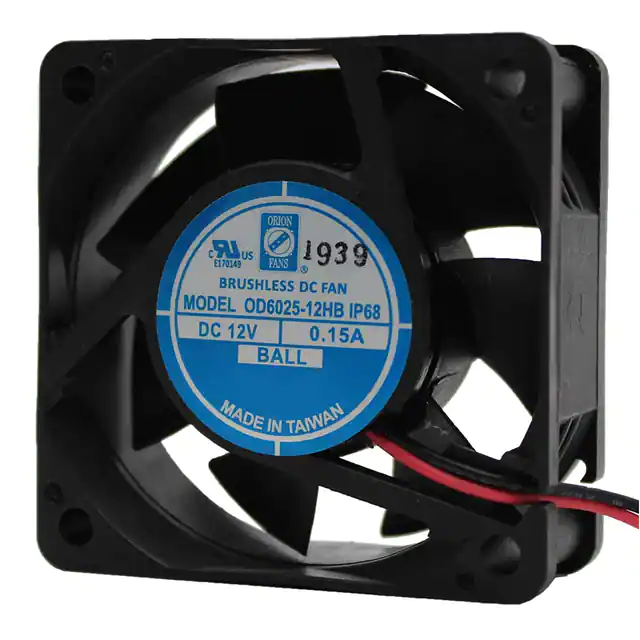

OD6025-24HBIP68FAN AXIAL 60X25MM 24VDC WIRE |
8,851 |
|
Техническая документация |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 3.4 W | 3975 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
|
05125GS-12N-AAD-0FAN BLOWER 51X25MM 12VDC WIRE |
523 |
|
Техническая документация |
0512GS | Box | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 7.1 CFM (0.199m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Blower | Auto Restart | 39.0dB | 2.4 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

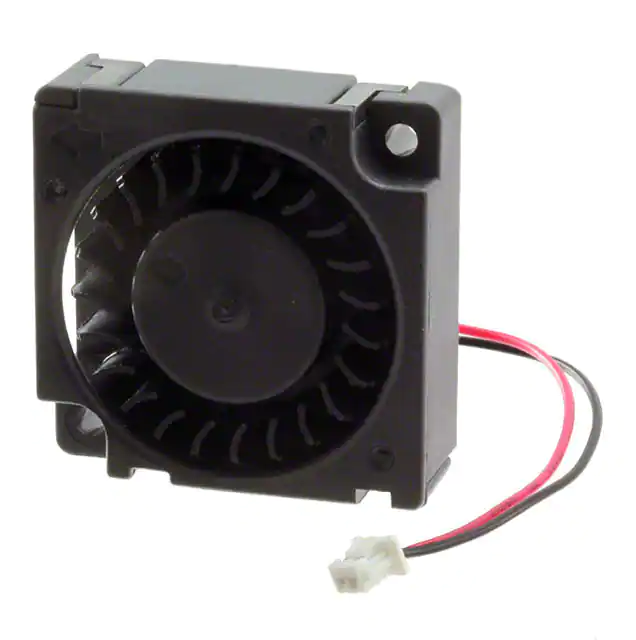

BFB0312HA-A116FAN BLOWER 30X10MM 12VDC |
3,046 |
|
Техническая документация |
BFB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Blower | Locked Rotor Protection | 29.0dB(A) | 720 mW | 7500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|

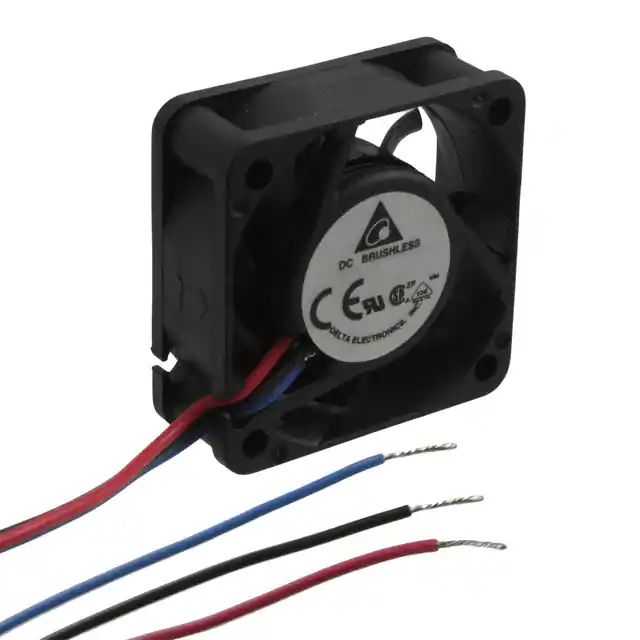

AFB0412VHA-AF00FAN AXIAL 40X10MM 12VDC WIRE |
770 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.5dB(A) | 720 mW | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
04020VA-24M-AL-00FAN AXIAL 40X20MM 24VDC WIRE |
402 |
|
Техническая документация |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB | 1.2 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
04020VA-12M-AL-00FAN AXIAL 40X20MM 12VDC WIRE |
292 |
|
Техническая документация |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.0dB | 1 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

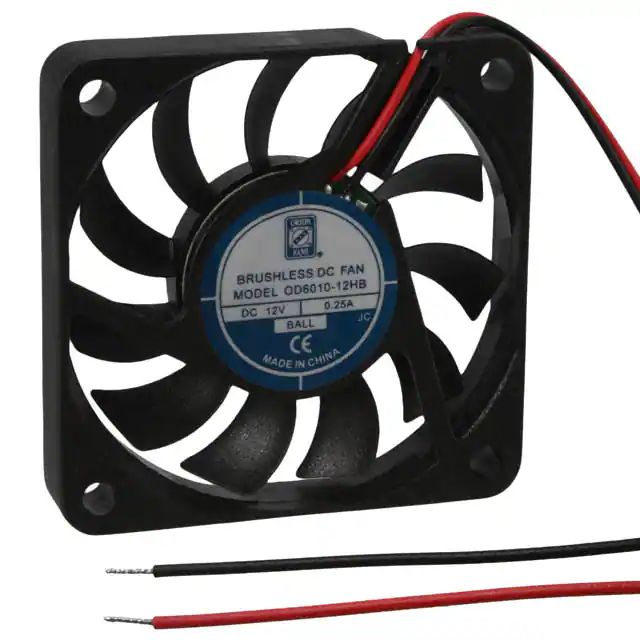

OD6010-12HBFAN AXIAL 60X10.5MM 12VDC WIRE |
1,977 |
|
Техническая документация |
OD6010 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 21.0 CFM (0.588m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 36.0dB | - | 4600 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

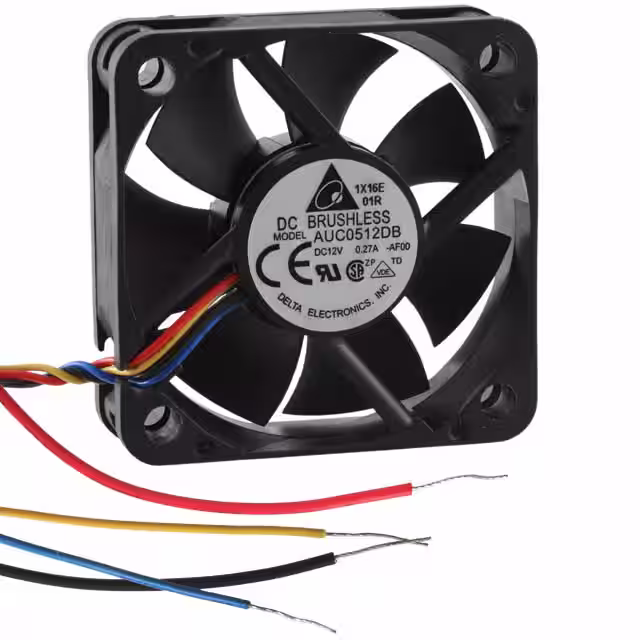

AUC0512DB-AF00FAN AXIAL 50X15MM 12VDC WIRE |
7,578 |
|
Техническая документация |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 20.2 CFM (0.566m³/min) | 0.299 in H2O (74.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.5dB(A) | 2.16 W | 7400 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.045 lb (20.41 g) |
|

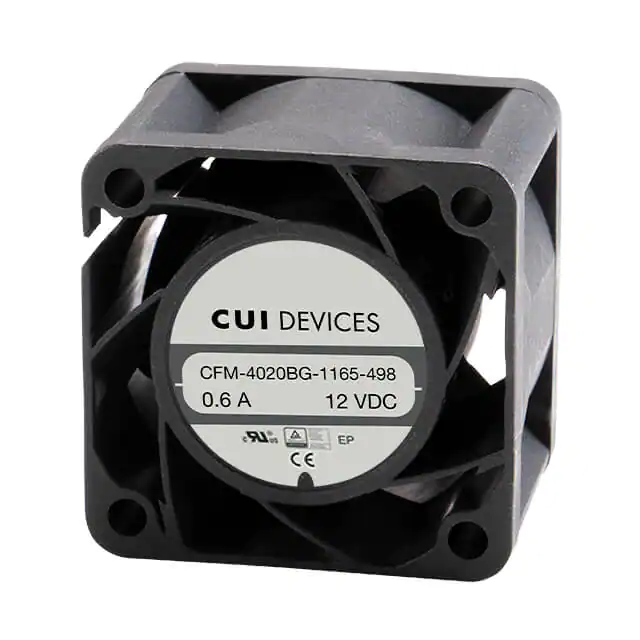

CFM-4020BG-1165-498FAN AXIAL 40X20MM 12VDC WIRE |
278 |
|
Техническая документация |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 19.4 CFM (0.543m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Auto Restart | 49.8dB(A) | 7.08 W | 16500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
06025SA-24T-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
251 |
|
Техническая документация |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB | 4.3 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

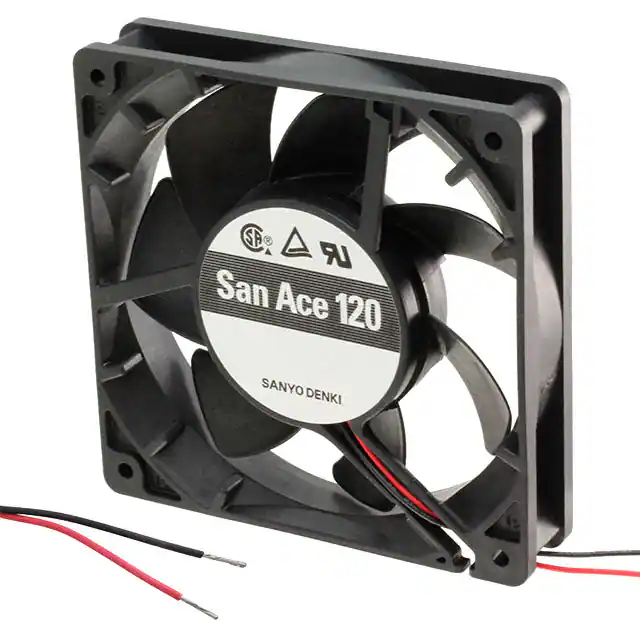

9G1224H102FAN AXIAL 119X38MM 24VDC WIRE |
3,784 |
|
Техническая документация |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 5.28 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
E9225E24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
954 |
|
Техническая документация |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|

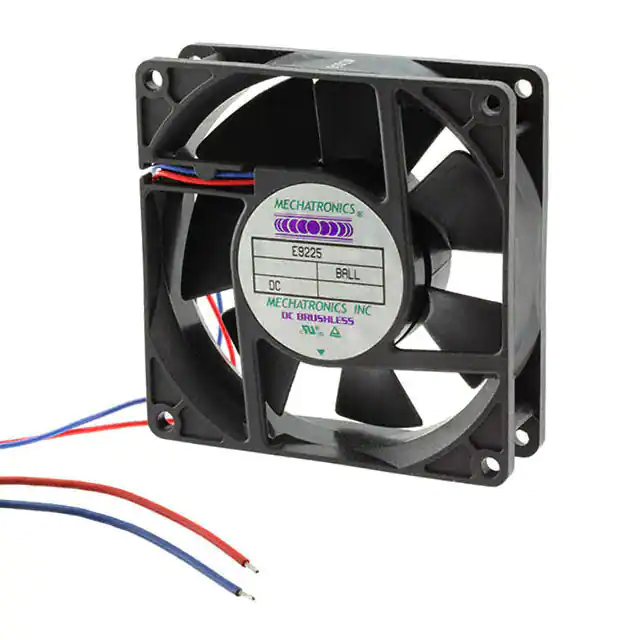

E9225X24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
368 |
|
Техническая документация |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 43.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
E9225H24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
232 |
|
Техническая документация |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
DC0401024V2B-BT0FAN 40X10MM 24VDC PWM/TACH |
380 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.0dB(A) | 2.16 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
