Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM1865M24B-FSRFAN AXIAL 180X65MM 24VDC WIRE |
4,594 |
|
Техническая документация |
MM1865 | Bulk | Obsolete | 24VDC | Square - 180mm L x 180mm H | 65.00mm | 465.0 CFM (13.02m³/min) | 0.970 in H2O (241.6 Pa) | Ball | Tubeaxial | - | 65.0dB | - | 3200 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cUL, TUV, UL | 3.5 lbs (1.6 kg) |
|

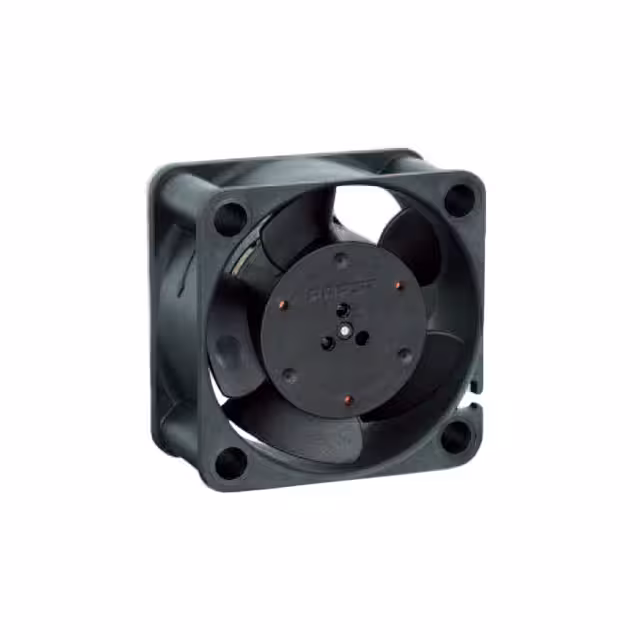

412/39FAN AXIAL 40X20MM 12VDC WIRE |
3,629 |
|
Техническая документация |
400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | 0.165 in H2O (41.1 Pa) | Sleeve | Tubeaxial | - | 20.0dB(A) | 1 W | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, EAC, UL, VDE | - |
|
4412F/39MFAN AXIAL 119X25.4MM 12VDC WIRE |
3,365 |
|
Техническая документация |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 100.0 CFM (2.80m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 3.2 W | 2400 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, EAC, UL, VDE | - |
|
7214N/19FAN AXIAL 150X55MM 24VDC WIRE |
4,940 |
|
Техническая документация |
7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 55.00mm | 212.0 CFM (5.94m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Tubeaxial | - | 53.0dB(A) | 12 W | 3050 RPM | 3 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE, CSA, EAC, UL, VDE | - |
|
|
B1232L24B2-BSFAN BLOWER 120X32MM 24VDC WIRE |
1,603 |
|
Техническая документация |
B1232 | Bulk | Discontinued at Digi-Key | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 21.0 CFM (0.588m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Blower | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.706 lb (320.24 g) |
|
E9225E12B3-FSFAN AXIAL 92X25MM 12VDC WIRE |
4,198 |
|
Техническая документация |
E9225 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP), Thermistor | 39.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
E9225S05B-FSFAN AXIAL 92X25MM BALL 5VDC WIRE |
3,178 |
|
Техническая документация |
E9225 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 92mm L x 92mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 24.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
F1238E12BT-FHFAN AXIAL 119X38MM 12VDC TERM |
2,299 |
|
Техническая документация |
F1238-H | Bulk | Discontinued at Digi-Key | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | - | 3300 RPM | 2 Terminals | - | - | CE, cUL, TUV, UL | - |
|
|
F6025M24B-RSFAN AXIAL 60X25MM 24VDC WIRE |
4,962 |
|
Техническая документация |
F6025 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 27.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025M24B-RS-EMFAN AXIAL 60X25MM 24VDC WIRE |
4,914 |
|
Техническая документация |
F6025-H | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 17.0 CFM (0.476m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 3600 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
|
F6025X12B-RH (3.5 LEADS)FAN AXIAL 60X25MM 12VDC WIRE |
4,686 |
|
Техническая документация |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|
F8025H05B1-FSFAN AXIAL 80X25MM BALL 5VDC WIRE |
3,685 |
|
Техническая документация |
F8025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | - | 2400 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
F8025M12B4-FSFAN AXIAL 80X25MM 12VDC WIRE |
3,370 |
|
Техническая документация |
F8025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 34.0 CFM (0.952m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 29.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
|
G1238E48B2-FS-WSFAN AXIAL 120X38MM 48VDC WIRE |
4,795 |
|
Техническая документация |
G1238 | Bulk | Discontinued at Digi-Key | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
|
G1338M48B-FSFAN AXIAL 127X38MM 48VDC WIRE |
4,865 |
|
Техническая документация |
G1338 | Bulk | Discontinued at Digi-Key | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 122.1 CFM (3.42m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 46.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.784 lb (355.62 g) |
|
|
G4020H05B1+6-RS-WSFAN AXIAL 40X20MM 5VDC WIRE |
4,940 |
|
Техническая документация |
G4020 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G6015H24B2-RH-WSFAN AXIAL 60X15MM 24VDC WIRE |
1,107 |
|
Техническая документация |
G6015-H | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Locked Rotor Sensor | 33.0dB(A) | - | 4600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.057 lb (25.85 g) |
|
G8015E24B-RGFAN AXIAL 80X15MM 24VDC WIRE |
1,717 |
|
Техническая документация |
G8015-G | Bulk | Discontinued at Digi-Key | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 40.0 CFM (1.12m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 38.0dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
G9225E24B-FS-L28FAN AXIAL 92X25MM 24VDC WIRE |
4,262 |
|
Техническая документация |
G9225 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.19 lb (86.18 g) |
|
|
G9225H24B-FS-EMFAN AXIAL 92X25MM 24VDC WIRE |
3,159 |
|
Техническая документация |
G9225 | Bulk | Discontinued at Digi-Key | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2800 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.19 lb (86.18 g) |
