Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

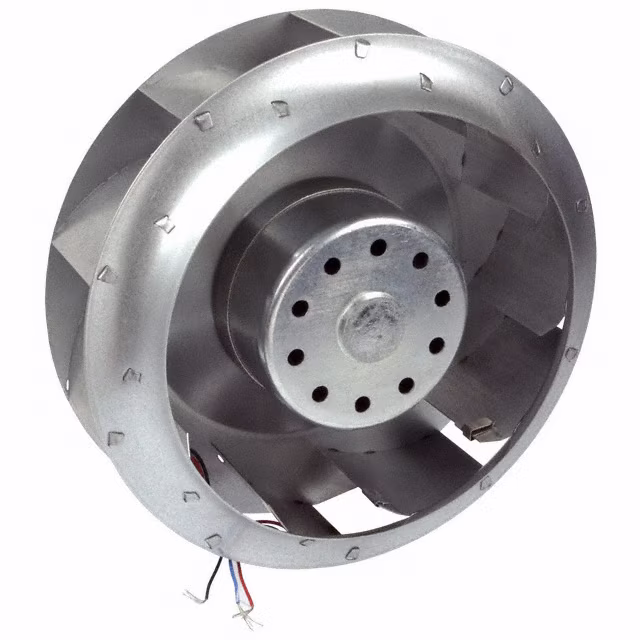

19039847AFAN IMP MTR 175X68MM DD692712B1A |
4,222 |
|
Техническая документация |
Diplomat | Bulk | Active | 12VDC | Round - 175mm Dia | 68.58mm | 275.0 CFM (7.70m³/min) | 1.060 in H2O (264.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 32.4 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
19039866AFAN MOTOR IMP 226X71MM 24V TTL |
2,304 |
|
Техническая документация |
Diplomat | - | Active | 24VDC | Round - 227mm Dia | 71.30mm | 565.0 CFM (15.82m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 75.0dB(A) | 100.8 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19039867AFAN MOTOR IMP 226X71MM 48V TTL |
1,857 |
|
Техническая документация |
Diplomat | - | Active | 48VDC | Round - 227mm Dia | 71.30mm | 565.0 CFM (15.82m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 75.0dB(A) | 100.8 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19039864AFAN IMP MTR 227X72MM DD892824B1A |
1,371 |
|
Техническая документация |
Diplomat | - | Active | 24VDC | Round - 227mm Dia | 71.30mm | 500.0 CFM (14.00m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 72.5dB(A) | 63.6 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|
|
19039865AFAN MOTOR IMP 226X71MM 48V TTL |
4,283 |
|
Техническая документация |
Diplomat | - | Active | 48VDC | Round - 227mm Dia | 71.30mm | 500.0 CFM (14.00m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 72.5dB(A) | 67.2 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.5 lbs (1.6 kg) |
|

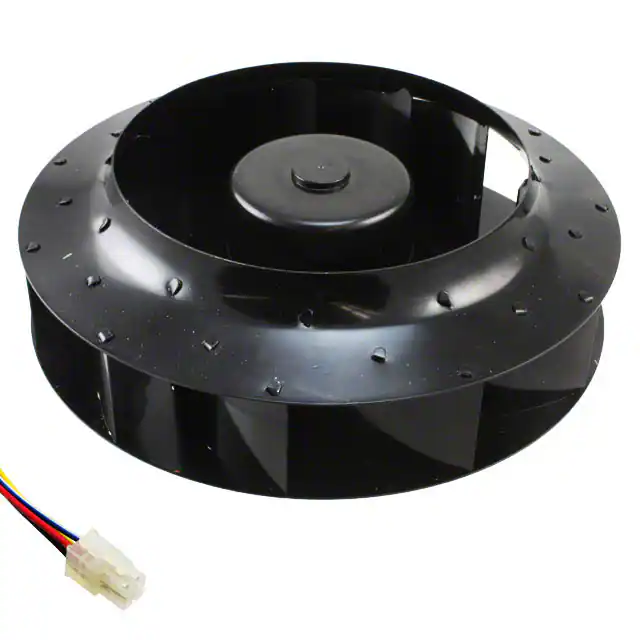

19040808AFAN IMP MTR 227X65MM DDE892824B |
4,306 |
|
Техническая документация |
Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 65.30mm | 500.0 CFM (14.00m³/min) | 2.220 in H2O (553.0 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 67.2 W | 2700 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, TUV, UR | 3.5 lbs (1.6 kg) |
|
DV5214/2N-40185FAN AXIAL 127X38MM 24VDC WIRE |
3,679 |
|
Техническая документация |
DV5200 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 158.9 CFM (4.45m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 21 W | - | 3 Wire Leads | - | - | CE, CSA, UL, VDE | - |
|
|
9WL0812H4002DC AXIAL FAN 80X25 12V |
4,480 |
|
Техническая документация |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | 1.44 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WL0824H4002DC AXIAL FAN 80X25 24V |
2,361 |
|
Техническая документация |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WL0812L400280X25MM 12V; SPLASH & DUST PROOF |
1,368 |
|
Техническая документация |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0824L400280X25MM 24V; SPLASH & DUST PROOF |
2,758 |
|
Техническая документация |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL0824F400280X25MM 24V; SPLASH & DUST PROOF |
4,686 |
|
Техническая документация |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
109P1312H1021FAN AXIAL 127X38MM 12VDC WIRE |
2,157 |
|
Техническая документация |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.84 W | 2950 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324H1021FAN AXIAL 127X38MM 24VDC WIRE |
3,728 |
|
Техническая документация |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.84 W | 2950 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324S1021FAN AXIAL 127X38MM 24VDC WIRE |
3,168 |
|
Техническая документация |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 13.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312H102FAN AXIAL 127X38MM 12VDC WIRE |
3,658 |
|
Техническая документация |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 9.84 W | 2950 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312S102FAN AXIAL 127X38MM 12VDC WIRE |
3,788 |
|
Техническая документация |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 15.6 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1312S1021FAN AXIAL 127X38MM 12VDC WIRE |
2,963 |
|
Техническая документация |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 15.6 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
|
109P1324S102FAN AXIAL 127X38MM 24VDC WIRE |
2,454 |
|
Техническая документация |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 13.2 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.772 lb (350.17 g) |
|
MSI1380H24B1-BBRFAN IMP MTRZD 133X80.5MM 24VDC |
2,379 |
|
Техническая документация |
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 80.50mm | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 1.7 lbs (771.1 g) |
