Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E5712M502FAN AXIAL 172X51MM 12VDC WIRE |
3,694 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 5.76 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724F502FAN AXIAL 172X51MM 24VDC WIRE |
3,619 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 8.4 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724M502FAN AXIAL 172X51MM 24VDC WIRE |
2,014 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 4.8 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1712F502FAN AXIAL 172X51MM 12VDC WIRE |
2,211 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 10.8 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712M502FAN AXIAL 172X51MM 12VDC WIRE |
4,014 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 5.76 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|

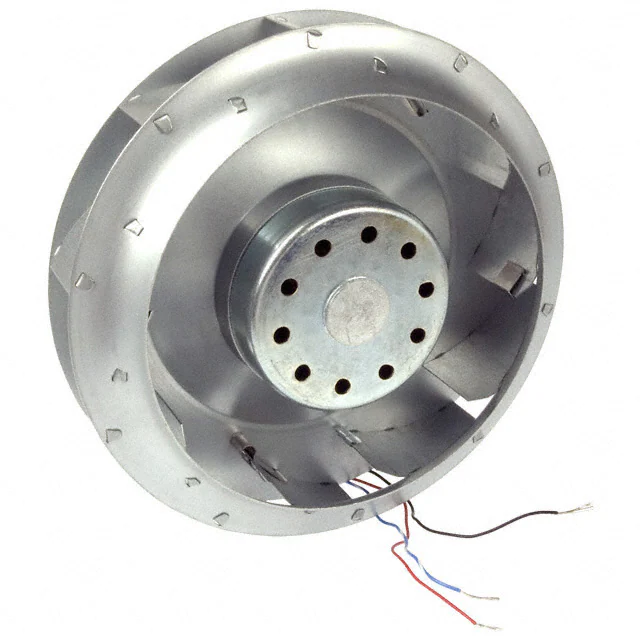

19039843AFAN IMP MTR 175X53MM DD692148K1A |
4,437 |
|
Техническая документация |
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 53.00mm | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.2dB(A) | 31.2 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
PFE0514B1-000U-A99FAN AXIAL 140X50.8MM 48VDC WIRE |
1,143 |
|
Техническая документация |
PFE | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 50.80mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart | 61.4dB(A) | 22.56 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.4 lbs (635.0 g) |
|
|
109E5712F501FAN AXIAL 172X51MM 12VDC WIRE |
3,406 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 8.16 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724F501FAN AXIAL 172X51MM 24VDC WIRE |
4,599 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 8.4 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5724M501FAN AXIAL 172X51MM 24VDC WIRE |
3,781 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1712H5D01FAN AXIAL 172X51MM 12VDC WIRE |
4,105 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 14.4 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712F501FAN AXIAL 172X51MM 12VDC WIRE |
4,184 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 10.8 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1712M501FAN AXIAL 172X51MM 12VDC WIRE |
3,606 |
|
Техническая документация |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 5.76 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1724F501FAN AXIAL 172X51MM 24VDC WIRE |
4,479 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 8.4 W | 2500 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E1724M501FAN AXIAL 172X51MM 24VDC WIRE |
2,578 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
|
109E5724M5D01FAN AXIAL 172X51MM 24VDC WIRE |
2,453 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 4.8 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
55616.37000FAN BLOWER CF 383X108.4MM 24VDC |
3,531 |
|
Техническая документация |
55616 | - | Obsolete | 24VDC | Rectangular - 383mm L x 91mm H | 108.4mm | 163.0 CFM (4.56m³/min) | - | Sleeve | Blower, Cross Flow | - | 50.0dB(A) | 12 W | - | 2 Terminals | - | - | - | - |
|
|
9GT0912M1002FAN AXIAL 92X38MM 12VDC WIRE |
1,299 |
|
Техническая документация |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 18 W | 8100 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
9GT0924M1002FAN AXIAL 92X38MM 24VDC WIRE |
2,899 |
|
Техническая документация |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 18 W | 8100 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
|
19040084AFAN CARAVEL DC FAN |
1,600 |
|
Техническая документация |
Caravel | - | Active | 24VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | - | Ball | Tubeaxial | - | - | 1650 W | - | 2 Wire Leads | - | - | - | - |
