Цифровые изоляторы
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Тип | Изолированное питание | Количество каналов | Входы - Сторона 1/Сторона 2 | Тип канала | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM2881IY-5#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
3,066 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
ADM3252EABCZDGTL ISO 2500VRMS RS232 44CSPBGA |
1,280 |
|
Техническая документация |
IsoPower®, iCoupler® | 44-LBGA, CSPBGA | Tray | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 460Kbps | - | - | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 44-CSPBGA (12x12) |
|
|
LTM2883CY-5S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
4,242 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2881HY-3#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
203 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -40°C ~ 105°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2881HY-5#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
159 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 32-BGA (15x11.25) |
|

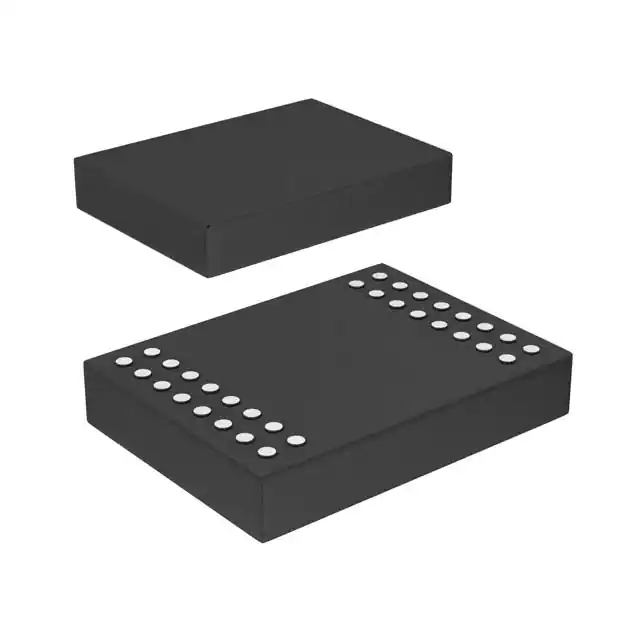

LTM2881HV-3#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
1,840 |
|
Техническая документация |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -40°C ~ 105°C | Surface Mount | 32-LGA (15x11.25) |
|
|
LTM2883IY-5S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
222 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2883IY-3S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
213 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
HCPL-0900DGTL ISO 2500VRMS 1CH GP 8SOIC |
411 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
LTM2885HY#PBFDGTL ISO 6.5KV RS422/RS485 42BGA |
160 |
|
Техническая документация |
µModule® | 42-BBGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 6500Vrms | 50kV/µs | 20Mbps | - | - | 4ns, 4ns | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 42-BGA (22x9) |
|
LTM2884CY#PBFDGTL ISOL 2500VRMS 1CH USB 44BGA |
140 |
|
Техническая документация |
µModule® | 44-BBGA | Tray | Active | Magnetic Coupling | USB | Yes | 1 | 1/1 | Bidirectional | 2500Vrms | 30kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 16.5V | - | - | 0°C ~ 70°C | Surface Mount | 44-BGA (15x15) |
|

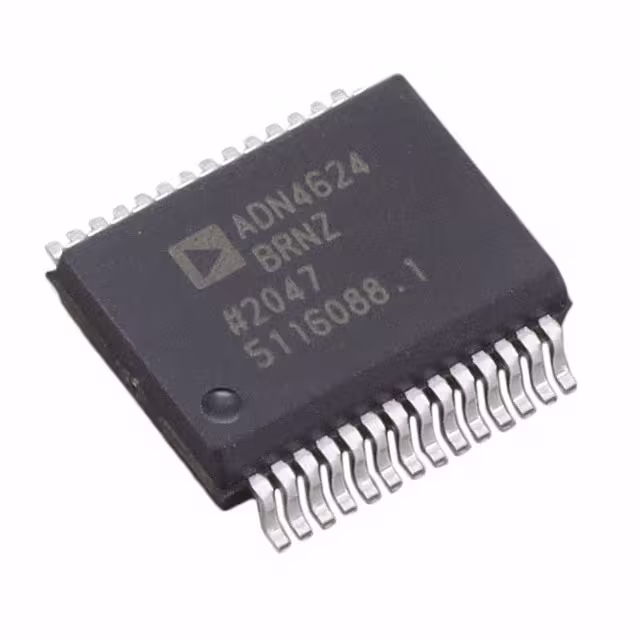

ADN4624BRNZQUAD 2.5GBPS 4+0 LVDS ISOLATOR |
389 |
|
Техническая документация |
- | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | LVDS | No | 4 | 4/0 | Unidirectional | 5700Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ns, 180ns (Max) | 1.7V ~ 1.9V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
ADN4622BRNZQUAD CHAN 2.5GBPS 2+2 LVDS ISOLA |
2,173 |
|
Техническая документация |
iCoupler® | 28-BSSOP (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | LVDS | Yes | 4 | 2/2 | Unidirectional | 8000Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 28-SOIC-W-FP |
|
|
LTM2884IY#PBFDGTL ISOL 2500VRMS 1CH USB 44BGA |
3,426 |
|
Техническая документация |
µModule® | 44-BBGA | Tray | Active | Magnetic Coupling | USB | Yes | 1 | 1/1 | Bidirectional | 2500Vrms | 30kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 16.5V | - | - | -40°C ~ 85°C | Surface Mount | 44-BGA (15x15) |
|
|
LTM2881MPY-3#PBFDGTL ISO 2.5KV RS422/RS485 32BGA |
3,715 |
|
Техническая документация |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | - | - | -55°C ~ 105°C | Surface Mount | 32-BGA (15x11.25) |
|
|
LTM2884HY#PBFDGTL ISOL 2500VRMS 1CH USB 44BGA |
216 |
|
Техническая документация |
µModule® | 44-BBGA | Tray | Active | Magnetic Coupling | USB | Yes | 1 | 1/1 | Bidirectional | 2500Vrms | 30kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 16.5V | - | - | -40°C ~ 105°C | Surface Mount | 44-BGA (15x15) |
|
|
ISO7221CHDDGTL ISO 4000VPK 2CH GP 8SOIC |
3,351 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 4000Vpk | 25kV/µs | 25Mbps | 43ns, 43ns | 2ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 175°C | Surface Mount | 8-SOIC |
|
|
TPT7721-SO1RGENERAL PURPOSE DIGITAL ISOLATOR |
3,410 |
|
Техническая документация |
TPT772x | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3750Vrms | 150kV/µs | 150Mbps | 18ns, 18ns | 5ns | 0.7ns, 0.7ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOP |
|
|
ISO6521REURFUNCTIONAL ISOLATIONDUAL-CHANNEL |
11,635 |
|
Техническая документация |
- | 8-TFDFN | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS232, RS485, SPI | No | 1 | 1/0 | Unidirectional | 200Vrms | 100kV/µs | 50Mbps | 18ns, 18ns | 7ns | 2.6ns, 2.6ns | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-VSON (3x2) |
|
|
ISO6521FREURFUNCTIONAL ISOLATIONDUAL-CHANNEL |
2,341 |
|
Техническая документация |
- | 8-TFDFN | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS232, RS485, SPI | No | 2 | 2/0 | Unidirectional | 570Vrms | 100kV/µs | 50Mbps | 18ns, 18ns | 7ns | 2.6ns, 2.6ns | 1.71V ~ 1.89V, 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-VSON (3x2) |
