Автомобильные реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9731-1A-24DC4RELAY AUTOMOTIVE SPST 40A 24V |
3,990 |
|
Техническая документация |
AZ9731 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9741-1A-12DERELAY AUTOMOTIVE SPST 40A 12V |
4,505 |
|
Техническая документация |
AZ9741 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -55°C ~ 125°C |
|
A2M1ACQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
1,554 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ACQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
1,258 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V |
4,628 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASP12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V |
2,368 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2M1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
4,954 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
4,666 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HF1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
3,471 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21ASQ12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V |
2,358 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V |
4,374 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
1,800 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V |
2,876 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ACQ12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V |
3,983 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

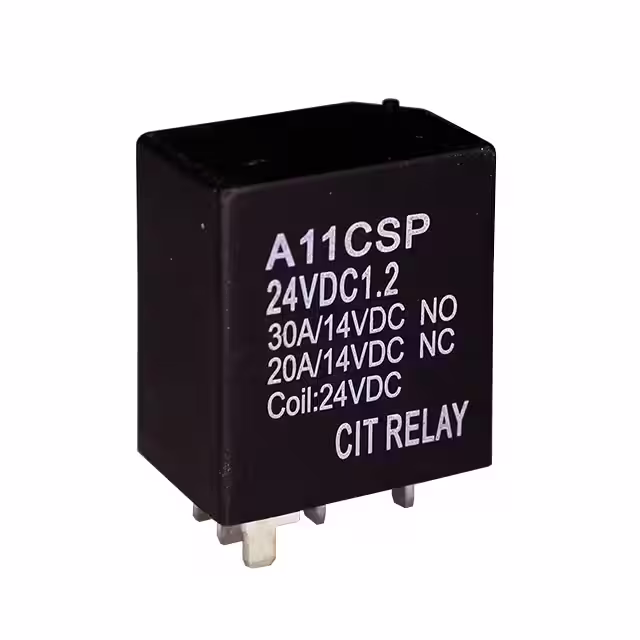

A11CSP24VDC1.2RELAY AUTOMOTIVE SPDT 30A 24V |
2,286 |
|
Техническая документация |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A21ASQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
2,481 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1ASQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
4,546 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ977-1C-24DERELAY AUTOMOTIVE SPDT 20A 24V |
2,289 |
|
Техническая документация |
AZ977 | Box | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 20 A | 150VDC - Max | 14.4 VDC | 2 VDC | 10 ms | 7 ms | MICRO-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 115°C |
|
|
AZ977-1C-24DDRELAY AUTOMOTIVE SPDT 20A 24V |
4,807 |
|
Техническая документация |
AZ977 | Box | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 20 A | 150VDC - Max | 14.4 VDC | 2 VDC | 10 ms | 7 ms | MICRO-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 115°C |
|
|
AZ977-1C-24DSERELAY AUTOMOTIVE SPDT 20A 24V |
4,171 |
|
Техническая документация |
AZ977 | Box | Active | Non Latching | 49.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 150VDC - Max | 14.4 VDC | 2 VDC | 10 ms | 7 ms | MICRO-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 115°C |
