Автомобильные реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K1136757RELAY 31-311-12-S |
2,444 |
|
Техническая документация |
31, KISSLING | Bulk | Active | Latching, Dual Coil | 3 A | 24VDC | SPST-NO (1 Form A) | 300 A | - | 18 VDC | - | 250 ms | 250 ms | Diode | Chassis Mount | Screw Terminal | -40°C ~ 85°C |
|
|
31-211-12-E-906Relay 31-211-12-E-906 |
2,238 |
|
Техническая документация |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AZ947-1A-12DERELAY AUTOMOTIVE SPST 20A 12V |
2,857 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-12DERELAY AUTOMOTIVE SPDT 20A 12V |
2,573 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1A-24DRELAY AUTOMOTIVE SPST 20A 24V |
3,296 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-24DRELAY AUTOMOTIVE SPDT 20A 24V |
3,760 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1A-24DERELAY AUTOMOTIVE SPST 20A 24V |
3,911 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ947-1C-24DERELAY AUTOMOTIVE SPDT 20A 24V |
3,277 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 25 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 14.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC537-1A-12S-XRELAY AUTOMOTIVE SPST 30A 12V |
3,650 |
|
Техническая документация |
- | Tube | Active | Non Latching | 47.2 mA | 12VDC | SPST-NO (1 Form A) | - | 28VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ947-1A-12DRELAY AUTOMOTIVE SPST 20A 12V |
3,423 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A161CS12VDC.80RELAY AUTOMOTIVE SPDT 30A 12V |
1,162 |
|
Техническая документация |
A16 | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 20VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ947-1C-12DRELAY AUTOMOTIVE SPDT 20A 12V |
2,544 |
|
Техническая документация |
AZ947 | Box | Active | Non Latching | 50 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 50VDC - Max | 7.3 VDC | 0.6 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|

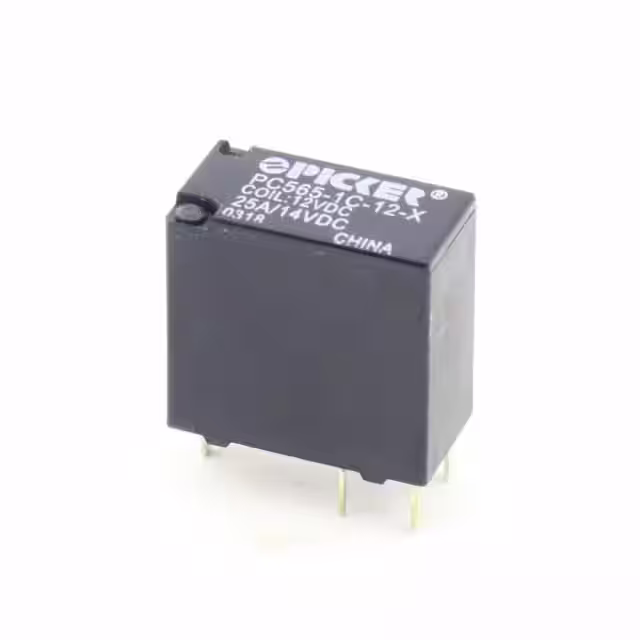

PC565-1C-12-XRELAY AUTOMOTIVE SPDT 25A 12V |
4,232 |
|
Техническая документация |
- | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9421A-1CT-12DERELAY AUTOMOTIVE SPDT 20A 12V |
4,529 |
|
Техническая документация |
AZ9421A | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 20 A | 250VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9421A-1CT-24DERELAY AUTOMOTIVE SPDT 20A 24V |
4,950 |
|
Техническая документация |
AZ9421A | Tube | Active | Non Latching | 33.3 mA | 24VDC | SPDT (1 Form C) | 20 A | 250VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
A51AO12VDC1.9RELAY AUTOMOTIVE SPST 40A 12V |
2,165 |
|
Техническая документация |
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A41US12VDCRELAY AUTOMOTIVE SPDT 20A 12V |
2,974 |
|
Техническая документация |
A4 | Tray | Active | Non Latching | 82.8 mA | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO12VDC1.6URELAY AUTOMOTIVE SPST 40A 12V |
3,378 |
|
Техническая документация |
A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO12VDC1.9URELAY AUTOMOTIVE SPST 40A 12V |
2,967 |
|
Техническая документация |
A5 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A51AO24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
3,700 |
|
Техническая документация |
A5 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
