Настольные, настенные блоки питания переменного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI90B-19-U2-P6AC-DC, 19 VDC, 4.74A, SW, C14 DE |
3,348 |
|
Техническая документация |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-24-U2-P5RAC-DC, 24 VDC, 3.75A, SW, C14 DE |
2,199 |
|
Техническая документация |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-U2-P11AC-DC, 19 VDC, 4.74A, SW, C14 DE |
3,952 |
|
Техническая документация |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-18-U2-P5AC-DC, 18 VDC, 5A, SW, C14 DESK- |
4,161 |
|
Техническая документация |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|

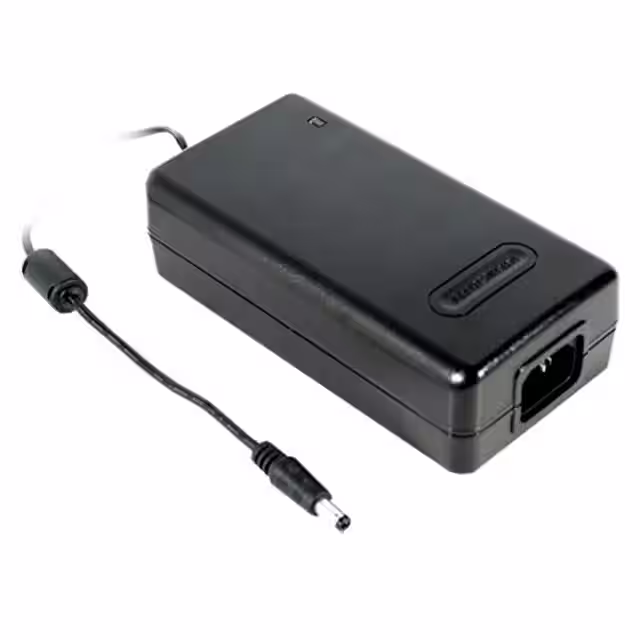

MES50A-2P1JAC/DC DESKTOP ADAPTER 9V 45W |
3,953 |
|
Техническая документация |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 5A | 45 W | - | Positive Center | Medical | 72% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV | - |
|
|
MES50A-3P1JAC/DC DESKTOP ADAPTER 12V 50W |
2,282 |
|
Техническая документация |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.16A | 50 W | - | Positive Center | Medical | 74% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV | - |
|
|
MES50A-4P1JAC/DC DESKTOP ADAPTER 15V 50W |
2,550 |
|
Техническая документация |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.33A | 50 W | - | Positive Center | Medical | 75% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV | - |
|
|
MES50A-5P1JAC/DC DESKTOP ADAPTER 18V 50W |
4,903 |
|
Техническая документация |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.77A | 50 W | - | Positive Center | Medical | 78% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV | - |
|
|
MES50A-6P1JAC/DC DESKTOP ADAPTER 24V 50W |
3,868 |
|
Техническая документация |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | - | Positive Center | Medical | 78% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV | - |
|
|
MES50A-8P1JAC/DC DESKTOP ADAPTER 48V 50W |
3,631 |
|
Техническая документация |
MES50A (50W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.04A | 50 W | - | Positive Center | Medical | 80% | 0°C ~ 65°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 5.79" L x 2.97" W x 1.70" H (147.0mm x 75.5mm x 43.2mm) | CB, CE, cURus, TUV | - |
|
|
SDI90B-19-TC-P5AC-DC, 19 VDC, 4.74A, SW, C6 DES |
1,553 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-18-TC-P6RAC-DC, 18 VDC, 5A, SW, C6 DESK-T |
3,872 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-24-TC-P6AC-DC, 24 VDC, 3.75 A, SW, C6 DE |
1,702 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-18-TC-P5RAC-DC, 18 VDC, 5A, SW, C6 DESK-T |
3,895 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-TC-P6AC-DC, 19 VDC, 4.74A, SW, C6 DES |
1,367 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-TC-P10AC-DC, 19 VDC, 4.74A, SW, C6 DES |
2,154 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-24-TC-P5RAC-DC, 24 VDC, 3.75 A, SW, C6 DE |
1,667 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-18-TC-P5AC-DC, 18 VDC, 5A, SW, C6 DESK-T |
4,874 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-TC-P6RAC-DC, 19 VDC, 4.74A, SW, C6 DES |
2,369 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-18-TC-P6AC-DC, 18 VDC, 5A, SW, C6 DESK-T |
4,225 |
|
Техническая документация |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
