Настольные, настенные блоки питания переменного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM12E09-P1JAC/DC WALL MNT MED ADPT EU CBL C |
4,080 |
|
Техническая документация |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 9V | 1.33A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CE, EAC, TUV, UKCA | 60601-1 |
|
SDI24-48-UC-P5AC/DC DESKTOP ADAPTER 48V 24W |
3,866 |
|
Техническая документация |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 500mA | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-48-UC-P5RAC/DC DESKTOP ADAPTER 48V 24W |
4,100 |
|
Техническая документация |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 500mA | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-48-UC-P6AC/DC DESKTOP ADAPTER 48V 24W |
3,903 |
|
Техническая документация |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 500mA | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-48-UC-P6RAC/DC DESKTOP ADAPTER 48V 24W |
2,217 |
|
Техническая документация |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 500mA | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|

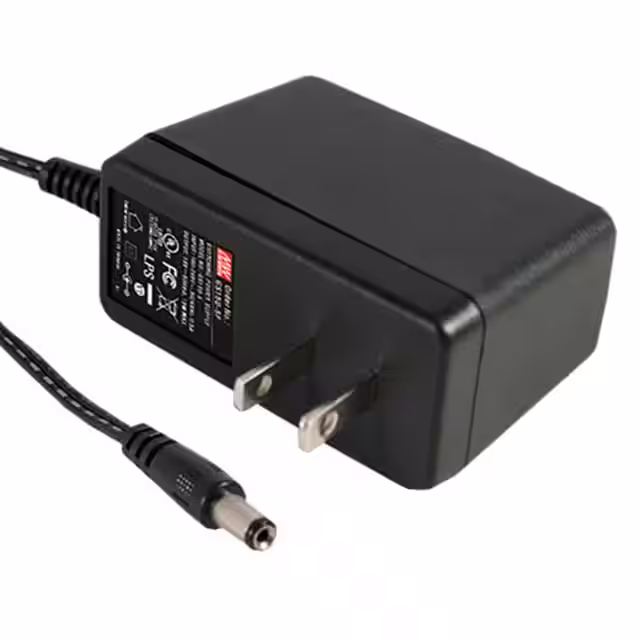

GS15U-5P1JAC/DC WALL MOUNT ADAPTER 18V 15W |
1,469 |
|
Техническая документация |
GS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 830mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.80" L x 1.34" W x 1.97" H (71.0mm x 34.0mm x 50.0mm) | CE, cULus | - |
|
WSU180-2000-RAC/DC WALL MOUNT ADAPTER 18V 36W |
2,374 |
|
Техническая документация |
WSU | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 2A | 36 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.31" L x 2.09" W x 1.22" H (84.0mm x 53.0mm x 31.0mm) | cETLus | - |
|
SDI40-12-UDC-P5RAC/DC DESKTOP ADAPTER 12V 36W |
4,219 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
SDI40-12-UDC-P6AC/DC DESKTOP ADAPTER 12V 36W |
4,976 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
SDI40-12-UDC-P6RAC/DC DESKTOP ADAPTER 12V 36W |
3,221 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
SDI40-15-UC-P5AC/DC DESKTOP ADAPTER 15V 41W |
4,180 |
|
Техническая документация |
SDI40-U (40W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |
|
|
SDI40-15-UC-P5RAC/DC DESKTOP ADAPTER 15V 41W |
2,237 |
|
Техническая документация |
SDI40-U (40W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |
|
|
SDI40-15-UC-P6AC/DC DESKTOP ADAPTER 15V 41W |
1,645 |
|
Техническая документация |
SDI40-U (40W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |
|
|
SDI40-15-UC-P6RAC/DC DESKTOP ADAPTER 15V 41W |
4,514 |
|
Техническая документация |
SDI40-U (40W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |
|
|
SDI40-15-UDC-P5AC/DC DESKTOP ADAPTER 15V 41W |
4,635 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
SDI40-15-UDC-P5RAC/DC DESKTOP ADAPTER 15V 41W |
4,636 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
SDI40-15-UDC-P6AC/DC DESKTOP ADAPTER 15V 41W |
4,273 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
SDI40-15-UDC-P6RAC/DC DESKTOP ADAPTER 15V 41W |
2,459 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 2.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
SDI40-19-UC-P5AC/DC DESKTOP ADAPTER 19V 40W |
2,478 |
|
Техническая документация |
SDI40-U (40W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 2.1A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |
|
|
SDI40-19-UDC-P5AC/DC DESKTOP ADAPTER 19V 40W |
4,012 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 19V | 2.1A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
