Настольные, настенные блоки питания переменного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GS15B-6P1JAC/DC DESKTOP ADAPTER 24V 15W |
1,872 |
|
Техническая документация |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 625mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | - |
|
|
GS15B-8P1JAC/DC DESKTOP ADAPTER 48V 15W |
3,351 |
|
Техническая документация |
GS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 310mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.94" L x 2.30" W x 1.29" H (100.0mm x 58.5mm x 32.8mm) | CE, cULus, GS | - |
|
23SW-00120500-S10B-USAC/DC DESKTOP ADAPTER 12V 60W |
2,138 |
|
Техническая документация |
- | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 100mW (Max) | Positive Center | ITE (Commercial) | 89% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.19" L x 2.80" W x 1.35" H (106.4mm x 71.1mm x 34.2mm) | CE, cUL, FCC, GS, TUV, UL | 60950-1 |
|
|
23SW-00090600-S10B-USAC/DC DESKTOP ADAPTER 9V 54W |
3,640 |
|
Техническая документация |
- | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 6A | 54 W | 100mW (Max) | Positive Center | ITE (Commercial) | 89% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.19" L x 2.80" W x 1.35" H (106.4mm x 71.1mm x 34.2mm) | CE, cUL, FCC, GS, TUV, UL | 60950-1 |
|
|
23SW-00150400-S10B-USAC/DC DESKTOP ADAPTER 15V 60W |
2,783 |
|
Техническая документация |
- | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4A | 60 W | 100mW (Max) | Positive Center | ITE (Commercial) | 89% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.19" L x 2.80" W x 1.35" H (106.4mm x 71.1mm x 34.2mm) | CE, cUL, FCC, GS, TUV, UL | 60950-1 |
|
SDM24-5-UD-P6RAC/DC DESKTOP ADAPTER 5V 20W |
1,999 |
|
Техническая документация |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM24-5-UD-P5RAC/DC DESKTOP ADAPTER 5V 20W |
4,645 |
|
Техническая документация |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
SMM12-9-4W-CUBAC-DC, 9 VDC, 1.33 A, SW, MULTI- |
4,227 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB C | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
SGAS15B09-P1JAC/DC DESKTOP ADAPTER 9V 15W |
3,926 |
|
Техническая документация |
SGAS15B (15W) | Box | Obsolete | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 75mW | Positive Center | ITE (Commercial) | 84% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | IEC 320-C8 | - | 3.15" L x 1.54" W x 1.09" H (80.0mm x 39.0mm x 27.7mm) | CB, CE, cULus, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|

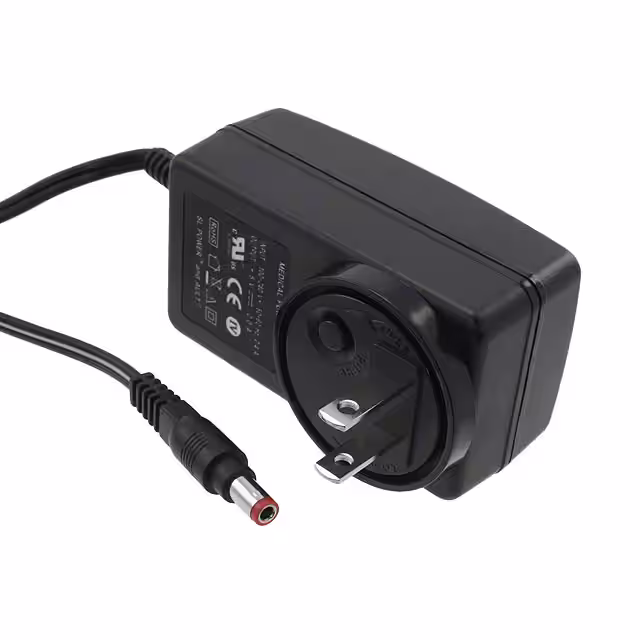

MW170KB0503B01AC/DC WALL MOUNT ADAPTER 5V 10W |
2,202 |
|
Техническая документация |
MW170KB (10-15W) | Box | Not For New Designs | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 5V | 2A | 10 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | - |
|
|
MW170KB1203B01AC/DC WALL MOUNT ADAPTER 12V 14W |
1,330 |
|
Техническая документация |
MW170KB (10-15W) | Box | Not For New Designs | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 12V | 1.2A | 14 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | - |
|
SDI40-24-UD2-P5AC/DC DESKTOP ADAPTER 24V 41W |
3,043 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 1.7A | 41 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
GS15U-3P1JAC/DC WALL MOUNT ADAPTER 12V 15W |
2,228 |
|
Техническая документация |
GS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.80" L x 1.34" W x 1.97" H (71.0mm x 34.0mm x 50.0mm) | CE, cULus | - |
|
|
GS15U-6P1JAC/DC WALL MOUNT ADAPTER 24V 15W |
1,011 |
|
Техническая документация |
GS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 625mA | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.80" L x 1.34" W x 1.97" H (71.0mm x 34.0mm x 50.0mm) | CE, cULus | - |
|
SDI18-5-UDC-P5RAC/DC DESKTOP ADAPTER 5V 15W |
1,370 |
|
Техническая документация |
SDI18-UD (18W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI18-5-UDC-P6RAC/DC DESKTOP ADAPTER 5V 15W |
2,820 |
|
Техническая документация |
SDI18-UD (18W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|

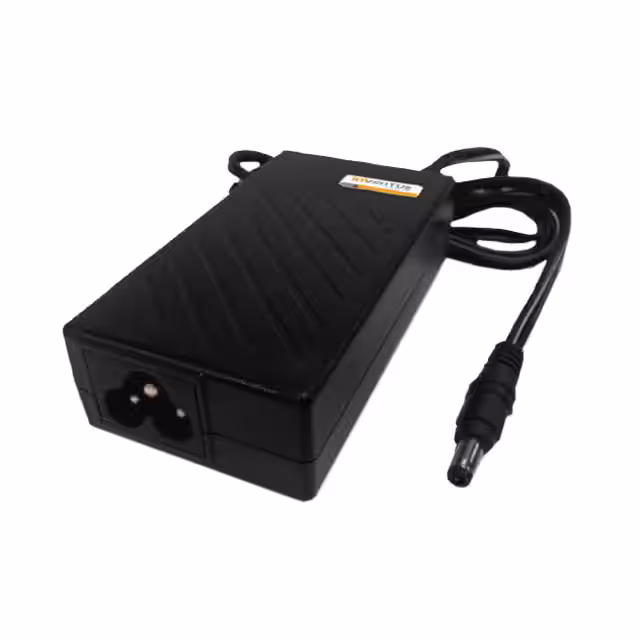

IPD2012-760SAC/DC DESKTOP ADAPTER 12V 19W |
4,585 |
|
Техническая документация |
IPD20 (20W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 1.6A | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CE, cTUVus | - |
|
|
IPD2024-760SAC/DC DESKTOP ADAPTER 24V 19W |
2,129 |
|
Техническая документация |
IPD20 (20W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CE, cTUVus | - |
|
|
WR9QA3000USBCRCIMR6WAC/DC WALL MOUNT ADAPTER 5V 15W |
4,988 |
|
Техническая документация |
GTM96180-1507-2.0 | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 75mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | USB C | 47.2" (1.20m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | - |
|
SWM30-18-NV-P5AC/DC WALL MOUNT ADAPTER 18V 30W |
3,483 |
|
Техническая документация |
SWM30-N (30W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1.66A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
